PortServer® TS Serie - Serieller RS-232 Geräterserver mit bis zu 16 Ports

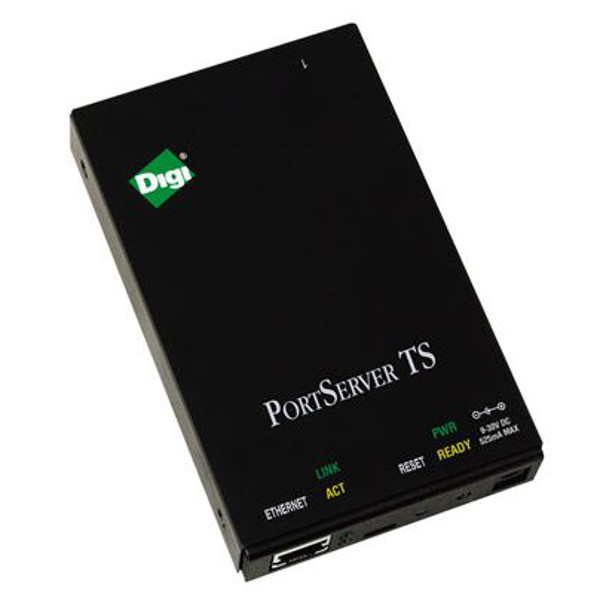

Der PortServer TS 1 von Digi ist ein Geräteserver mit einem RJ-45 Port.
Der PortServer TS 1 von Digi ist ein Geräteserver mit einem RJ-45 Port.
Der PortServer TS 16 von Digi ist ein Geräteserver mit 16 RJ-45 Ports.
Die seriellen Geräteserver der PortServer® TS Serie sind ausgestattet mit bis zu 16 RJ-45 Ports mit RS-232 Standard, einem Ethernet Anschluss, SSHv2 Verschlüsselung und RealPort® mit SSL Übertragung.
Preis zusenden oder Anfrage senden

zum Merkzettel hinzufügen

Datenblatt zusenden

PortServer® TS - Serial RS-232 Device Server 1 - 16 Ports

PortServer TS serial servers offer RS-232 serial port expansion, making it easy to connect any serial device to your network. Available in one-, two-, four-, eight- or 16-port models, these serial servers combine the inherent benefits of data networking with proven asynchronous connectivity. They deliver powerful, yet simple Ethernet connectivity for all your serial devices.

PortServer TS device servers are ideal for applications requiring COM ports or where TCP/UDP Sockets or multicast functionality is required. All Digi device servers include Digi’s patented RealPort® COM port redirector technology, which makes it possible to establish a connection between the host and networked serial device by creating a local COM or TTY port on the host computer, allowing existing software applications to work without modification.

Features
ManagementHTTP/HTTPS, CLI, SNMP (read/write), Digi Port Authority-Remote management diagnostics and auto-discovery tool
ProtocolsUDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, PPP, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support, RADIUS, Reverse SSH
SecuritySSHv2, SSL/TLS
SoftwareDevice-initiated patented RealPort® COM port redirector
Status LEDsLink, Activity, Power, Status
Operating SystemsAIX, HP-UX, Linux®, SCO® OpenServer™ 5, SCO® OpenServer™ 6, Solaris™ Intel, Solaris™ SPARC, Windows XP®, Windows Server® 2003, Windows Server® 2008, Windows Vista®, Windows 7 Note: TCP/UPD Socket Services are operating system independent
Dimensions (L x W x D)5.25 in x 3.33 in x 0.95 in (13.34 cm x 8.46 cm x 2.42 cm)
Weight2.25 oz (64.00 g)
OtherFull modem and hardware flow control, Modem emulation, Port buffering, RJ-45/DB-9F crossover adapter included for optional serial configuration
Interfaces
PortServer TS 11 RS-232 RJ-45; Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
PortServer TS 22 RS-232 RJ-45; Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
PortServer TS 44 RS-232 RJ-45; Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
Ethernet
Ports1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); Full or half duplex
Power Requirements
Power Input9-30VDC with locking barrel power connector
Power Supply (included)North America: 12VDC/.5A max out; 120VAC in (wall mount) International: 12VDC/.5A max out; 100-240VAC in (small brick)
Power ConsumptionTypical: 4 W; Max: 6 W
Surge Protection4 kV burst (EFT) per EN61000-4-4, 2 kV surge per EN61000-4-5
Environmental
Operating Temperature0° C to +60° C (32° F to 140° F)
Storage Temperature-40° C to +85° C (-40° F to +185° F)
Relative Humidity5% to 95% (non-condensing)
Ethernet Isolation1500 VAC min per IEEE802.3/ANSI X3.263
Serial Port Protection (ESD)+15 kV air 6 AP and +8 kV contact discharge per IEC 100-4-2
Approvals
SafetyUL/CUL 60950, IEC 60950 & CB
Emissions/ImmunityCE, FCC Part 15 (Class A), EN55024, EN55022 Class A, AS/NZS 3548, CISPR 22, VCCI V-3/99.05
Features
ManagementHTTP/HTTPS, CLI, Digi Port Authority-Remote management diagnostics and auto-discovery tool
ProtocolsUDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, PPP (PAP & CHAP), Extended Telnet RFC 2217, Telnet, Reverse Telnet, R-login, Auto-connect
SecuritySNMP (read/write), SSHv2, RADIUS, Line Printer Daemon (LPD)
SoftwareDevice-initiated patented RealPort® COM port redirector
Status LEDsLink, Power
Operating SystemsAIX, HP-UX, Linux®, SCO® OpenServer™ 5, SCO® OpenServer™ 6, Solaris™ Intel, Solaris™ SPARC, Windows XP®, Windows Server® 2003, Windows Server® 2008, Windows Vista®
OtherMounting brackets included on some models, Rack-mountable unit with all power/serial connectors on front panel (PortServer TS 16 Enterprise only), Full modem and hardware flow control, Port buffering up to 64 Kbps per port, Easy firmware upgrades via TFTP, Save/Restore configuration to host, Up to 9 Telnet or Rlogin sessions per port
Dimensions (L x W x D)
PortServer TS 16 Desktop, TS 8, TS 8 48VDC8-port: 8.30 in x 3.70 in x 1.00 in (21.08 cm x 9.40 cm x 2.54 cm) 16-port: 13.40 in x 6.60 in x 1.40 in (34.04 cm x 16.76 cm x 3.60 cm)
PortServer TS 16 Rack, TS 16 Enterprise Rack16.80 in x 6.60 in x 1.60 in (42.70 cm x 16.76 cm x 4.06 cm)
PortServer TS 16 Rack 48VDC16.80 in x 6.60 in x 1.60 in (42.70 cm x 16.76 cm x 4.06 cm)
Weight
PortServer TS 16 Desktop, TS 8, TS 8 48VDC8-port: 3.05 lb (1.39 kg) 16-port: 5.30 lb (2.40 kg)
PortServer TS 16 Rack, TS 16 Enterprise Rack7.05 lb (3.20 kg)
PortServer TS 16 Rack 48VDC7.05 lb (3.20 kg)
Interfaces
PortServer TS 16 Desktop, TS 8, TS 8 48VDC8 or 16 RS-232
PortServer TS 16 Rack, TS 16 Enterprise Rack16 RS-232
PortServer TS 16 Rack 48VDC8 or 16 RS-232 RJ-45
ThroughputUp to 230 Kbps
Signal SupportTXD, RXD, RTS, CTS, DTR, DSR and DCD
Ethernet
Ports10/100Base-T 10/100 Mbps; Full or half duplex
Power Requirements
PortServer TS 16 Desktop, TS 8, TS 8 48VDC8-port: 6 W typical | 16-port: 12 W typical
PortServer TS 16 Rack, TS 16 Enterprise Rack12 W typical
PortServer TS 16 Rack 48VDCInternal dual feed power supply, 36-72VDC
PortServer TS 16 Rack 48VDC 12 W typical12 W typical
Environmental
Operating Temperature0° C to 50° C (32° F to 122° F)
Relative Humidity5% to 95% (non-condensing)
Serial Port Protection (ESD)+15 kV human body model
Approvals
SafetyUL60950; CAN/CSA C22.2 No. 60950; EN60950
Emissions/Immunity8-port models and 16-port MEI model: FCC Part 15, Subpart B, Class A; EN55022, Class A; EN55024; EN61000-3-2,3; All other 16-port models: FCC Part 15, Subpart B, Class B; EN55022, Class B; EN55024; EN61000-3-2,3;
