EIRP-Extend Serie - Ethernet Extender mit Kupfer und PoE+

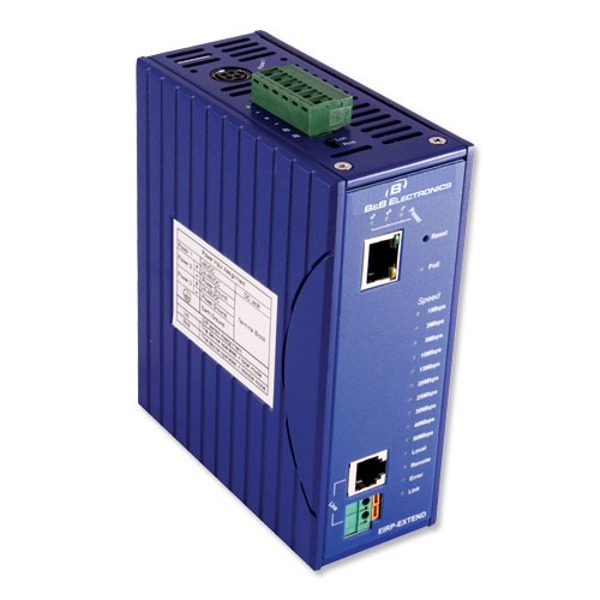

Der EIRP-Extend von B+B SmartWorx ist ein Ethernet Extender.
Der EIRP-Extend von B+B SmartWorx ist ein Ethernet Extender.
Die Power over Ethernet fähigen Ethernet Extender der EIRP-Extend Serie von B+B SmartWorx sind ausgestattet mit Kupferverkabelung, einem RJ-45 Port, einem RJ-11 Port, Terminal Block und Betriebstemperaturen von -40°C bis 75°C.

End of Life » Anfrage Produktnachfolger

zum Merkzettel hinzufügen

Datenblatt zusenden

Elinx EIRP-Extender - Copper Ethernet Extenders, Ethernet Switch, PoE+ Ports

Extending Ethernet to reach IP cameras, IP phones, and Ethernet connected control devices is simple and reliable with B&B Electronics PoE Ethernet extenders.

Low cost and ease of use are two great benefits, since the Ethernet signal is extended over existing copper wire (typically telephone wire or Cat5 cable). Enjoy high-speed Ethernet connections ranging from 1Mbps to 50Mbps (depending on the application’s distance requirements). A maximum distance of 1,900 meters can be achieved with these extender devices – that’s 19 times greater than the distance of a standard Ethernet port!


  • Operates transparently to higher layer protocols
  • EIRP models are equipped with PoE+ ports capable of powering cameras and other PoE devices
  • Ruggedized for extreme applications
  • Easy setup via a single DIP switch (Local or Remote) setting
  • Status LED’s for monitoring and connection status
  • Meets heavy industrial EN61000-6-2 EMC standards
  • IEC600068-2-27 (shock) and 600068-2-6 (vibration) tested
  • Meets NEMA TS1/TS2 requirements for traffic control equipment
  • Wide operating temperature -40 to 75°C, (tested at -40 to 85°C)
  • Redundant wide voltage inputs 24 to 48VDC, via terminal block
  • DIN rail mount or panel mount with optional adapter (Model EIRPMKT)


Extender port compatible with EIS-Extend, EIR-Extend-x, EIRM-Extend-x

Input Voltage:

  • 48 VDC – Power Jack Port
  • 24 – 48 VDC Terminal Block

Power Consumption:

  • 38.4 W Max, 0.8A@48VDC

(Power supply optional)

Extender Interface:

  • RJ-11 or Terminal Block

Ethernet Interface:

  • Ports:
    • POE RJ-45, 10/100BaseTX
    • POE PLUS Complies with IEEE802.3af / 10/100 Mbps
  • Standards:
    • 802.3 10BaseT Port RJ-45, 10/100BaseTX
    • 802.3u 100BaseTx Full/Half Duplex
    • 802.3x Auto-Negotiation Ethernet over VDSL

Operating Temperature:

  • -40 to 75 C
1 Mbps1.900m
10 Mbps1.400m
20 Mbps1000m
30 Mbps700m
50 Mbps300m
EIRP-EXTEND Copper Ethernet Extender
EIRP-EXTEND-2 Copper Ethernet Extender
