Elinx EIS Serie - Ethernet zu Glasfaser Medienkonverter

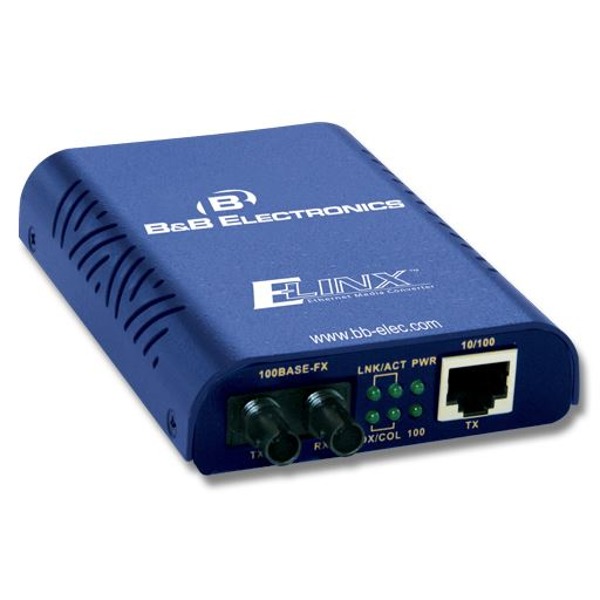

Der EIS von B+B SmartWorx ist ein Ethernet zu Glasfaser Konverter.
Der EIS von B+B SmartWorx ist ein Ethernet zu Glasfaser Konverter.
Die Ethernet zu Glasfaser (Single-/Multi-Mode) Medienkonverter der Elinx EIS Serie von B+B SmartWorx sind ausgestattet mit Hot-Swap Funktion, Desk-, Wall (Stand-Alone) oder Rackmount Montage (bis zu 16 EIS Geräte) und Übertragungsdistanzen bis zu 20km.

zum Merkzettel hinzufügen

Datenblatt zusenden

EIS Series - Multi Mount Single- And Multi-Mode Media

Another great benefit inherently built into a media converter is the isolation factor. Since the data is communicating via a fiber optic connection, the data is transmitted by light – therefore no conductive wires connect the far ends of the system.

The EIS series single-mode and multi-mode media converters are stand alone products that come with a power supply or have the option to be mounted in a 19 inch rack chassis. The rack system holds up to 16 of the EIS products and includes one power supply that will provide power to each of the EIS models via the backplane. A second power supply for the rack system (model EIS-RACKPS) can be purchased. Use of two power supplies provides a load-sharing service that will add redundancy to your system. If one power supply goes down the other takes over immediately.

  • Desk or wall mount as stand-alone product or install in 19-inch rack system
  • Rack Chassis
  • Holds up to 16 of the EIS series media converters
  • Includes one power supply, purchase a second for redundancy
  • Standard 19-inch rack mount size (2U height)
  • Front panel LEDs for power status
  • Hot swappable (both media converters and power supply)
  • Two removable cooling fans for ventilation in the chassis


  • Multi-mode or single-mode models
  • 10/100Base and 1000Base (Gigabit) models
  • Operating Temp: 0 to 50C
  • Power: External Power Supply 12VDC @ 280mA (supplied)
  • Auto negotiation of data rate and duplex modes
  • MDI/MDI-X (auto-cross feature)
  • LEDs for Power, Link/Activity, Data Rate, Duplex/Collision
  • Safety: UL/CUL 60950, EN60950, IEC 609050, IEC6100-6-2
  • Dip switch configuration for
    • Link-fault-pass-through (enabled or disabled)
    • Data rates (auto or forced)
    • Duplex modes (auto or forced)
EIS-M-SC Ethernet Media Converter Multi-Mode
EIS-M-ST Ethernet Media Converter Multi-Mode
EIS-M-ST-EU Ethernet Media Converter Multi-Mode Eu
EIS-S-SC Ethernet Media Converter Single-Mode
EIS-S-SC-EU Ethernet Media Converter Single-Mode Eu
