USB Plus Series - Powered USB Lösungen

Die Geräte der USB Plus Series-von Digi sind powered USB Hubs.
Die Geräte der USB Plus Series-von Digi sind powered USB Hubs.
Die USB Hubs der USB Plus Series von Digi sind ausgestattet mit 4 USB PlusPower (powered USB) Ports, Kabelverriegelung und 12 - 24 VDC Stromversorgung durch die USB Ports.

zum Merkzettel hinzufügen

Datenblatt zusenden

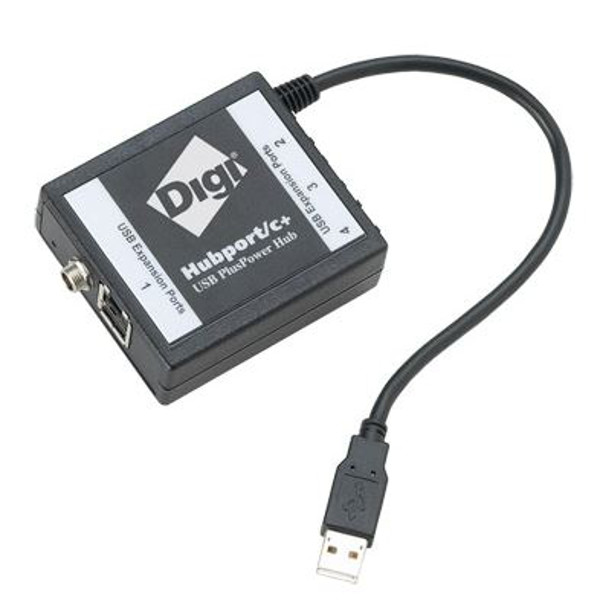

USB Plus Series - Hubport/4c+ Powered USB Solution

USB PlusPower technology saves space and simplifies retail and medical system architecture by eliminating individual power supply bricks for USB peripheral devices. The USB Plus Series makes it easy to connect powered USB peripheral devices to a basic PC. The Hubport/4c+ can save space and simplify system architecture by transforming a low-cost PC into a high-performance, powered USB-compatible retail system. It offers four powered USB ports with cable locking mechanisms, which are also compatible with standard USB devices.

Features
Form FactorExternal hub
LEDsTri-state LED for device status and port activity
Operating SystemsWindows® 8, Windows 2012, Windows 7, Windows Vista®, Windows Server® 2008, Windows XP®, Windows XP Embedded, Windows CE, Windows Server® 2003, Windows 2000
Dimensions (L x W x H)2.61 in x 3.00 in x 1.00 in (6.63 cm x 7.62 cm x 2.54 cm)
Weight4.20 oz (118.00 g)
Cables10 in (25.4 cm) captive cable
OtherCompatible with standard (type A) and locking powered USB connectors; Locking power connectors (external models); Plug and Play; Convection cooled design; Full hardware and software flow control
Interfaces
USB PlusPower Ports4 powered USB 1.1 ports: Port 1 supplies 24 VDC and Ports 2 through 4 supply 12 VDC
USB PlusPower Data RatesActive
Power Requirements
Power InputStandard external power supply included: 72 watt avg., 90 watt peak 100-240V, 50-60 Hz, 1.6 Amp
Power Output12V: up to 30 watts; 24V: up to 60 watts; All combined: up to 72 watts
Power FeaturesPower balancing technology for efficient power management; Port level power management on select models; Meets power switching requirements of USB 1.1 specification
Environmental
Operating Temperature0° C to 65° C (32° F to 149° F)
Relative Humidity0% to 95% (non-condensing)
Approvals
SafetyEN60950, UL 1950, CSA 2.2 No. 950, IEC 950
Emmissions/ImmunityCE, FCC Part 15, Class B, EN55022, EN55024
Modelle
Hubport/4c+ 301-2157-01
