PortServer® TS P MEI Serie - Serieller Geräteserver mit PoE

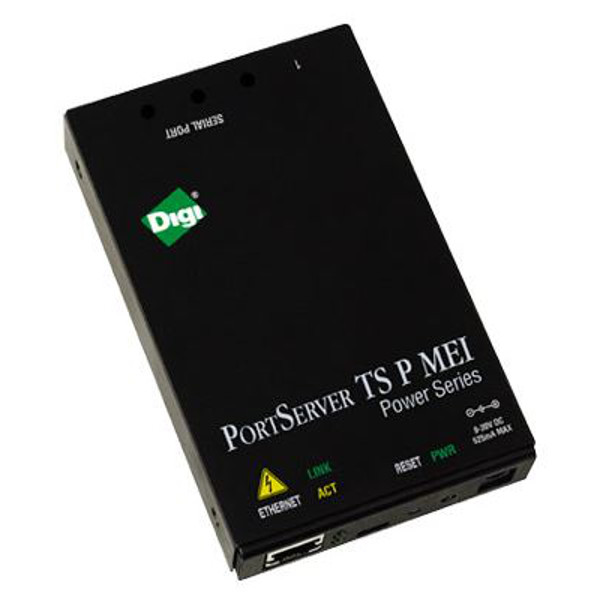

Der PortServer TS P MEI von Digi ist ein Geräteserver mit Power over Ethernet.
Der PortServer TS P MEI von Digi ist ein Geräteserver mit Power over Ethernet.
Die seriellen Geräteserver der PortServer® TS P MEI Serie von Digi sind ausgestattet mit 2 oder 4 Ports, RS-232/422/485 Standards und Power over Ethernet mit End-Span und Mid-Span Funktion.

zum Merkzettel hinzufügen

Datenblatt zusenden


PortServer® TS P MEI - Serial Device Server With Powered Serial And Ethernet Options

PortServer TS P MEI makes it easy to connect RS-232/422/485 serial devices to an IP network. By supporting versatile powering options like powered Ethernet and powered serial, this serial server can adapt to many applications where traditional power alternatives are required.

Powered Ethernet (802.3af, mid- and end-span support) makes it possible to run just one Ethernet cable to the device server for both power and communications. The powered serial feature enables PortServer TS P MEI to power a device over serial using Ring Indicator (RI) or DTR pins. Each power feature is available in addition to a traditional power connector, and can serve as redundant power in case of an outage from either source.

Available in two- and four-port versions, PortServer TS P MEI delivers universal, high performance multiport serial-to- Ethernet connectivity. It is ideal for applications requiring COM ports, serial tunneling, or where TCP/UDP Socket functionality is needed.

Features
ManagementHTTP/HTTPS, CLI, SNMP (read/write), Digi Port Authority-Remote management diagnostics and auto-discovery tool
ProtocolsUDP/TCP, PPP, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support
SoftwareDevice-initiated patented RealPort® with encryption COM port redirector
SecuritySSHv2
Status LEDsLink, Power
Operating SystemsAIX, HP-UX, Linux®, SCO® OpenServer™ 5, SCO® OpenServer™ 6, Solaris™ Intel, Solaris™ SPARC, Windows XP®, Windows Server® 2003, Windows Server® 2008, Windows Vista® Note: TCP/UPD Socket Services are operating system independent
Dimensions (L x W x D)5.25 in x 3.33 in x 0.95 in (13.34 cm x 8.46 cm x 2.42 cm)
Weight2.25 oz (64.00 g)
Other802.3af powered Ethernet (mid- and end-span); Full modem and hardware flow control, Modem emulation, Port buffering, RJ-45/DB-9F crossover cable included for optional serial configuration
Interfaces
PortServer TS 2 P MEI2 RS-232/422/485 RJ-45 (switch selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
PortServer TS 4 P MEI4 RS-232/422/485 RJ-45 (switch selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
Ethernet
Ports1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); Full or half duplex
Power Requirements
Power Input9-30 VDC
Power Supply (included)North America: 12 VDC/.5A max out; 120 VAC in (wall mount) International: 12 VDC/.5A max out; 100-240 VAC in (small brick)
Power ConsumptionTypical: 4 W; Max: 6 W
Surge Protection4 kV burst (EFT) per EN61000-4-4, 2 kV surge per EN61000-4-5
Powered EthernetEthernet Power, IEEE 802.3af compliant, pins 4/5(+) and 7/8(-); 4 kV burst (EFT) per 1000-4-4; 2 kV surge per EN61000-4-5
Serial Power InputDC input connector, 9-30 VDC, 525 mA max; Serial Port 1, Pin 1 (RI), 9-30 VDC, 525 mA max
Serial Power OutputAvailable on all serial ports; 1 watt available power with selectable voltage level; Pin 1 (RI) 5 VDC up to 200 mA max; Pin 9 (DTR) 9 VDC up to 100 mA max
Environmental
Operating Temperature0° C to 50° C (32° F to 122° F)
Relative Humidity5% to 90% (non-condensing)
Ethernet Isolation1500VAC min per IEEE802.3/ANSI X3.263
Serial Port Protection (ESD)+15 kV air 6 AP and +8 kV contact discharge per IEC 100-4-2
Approvals
Safety UL 1950, CSA 22.2 No. 950
Emissions/ImmunityCE, FCC Part 15 (Class A), EN55024, EN55022 Class A
Modelle
PortServer TS 2 P MEI (mid- and end-span PoE)70001992
PortServer TS 4 P MEI (mid- and end-span PoE) 70001993
