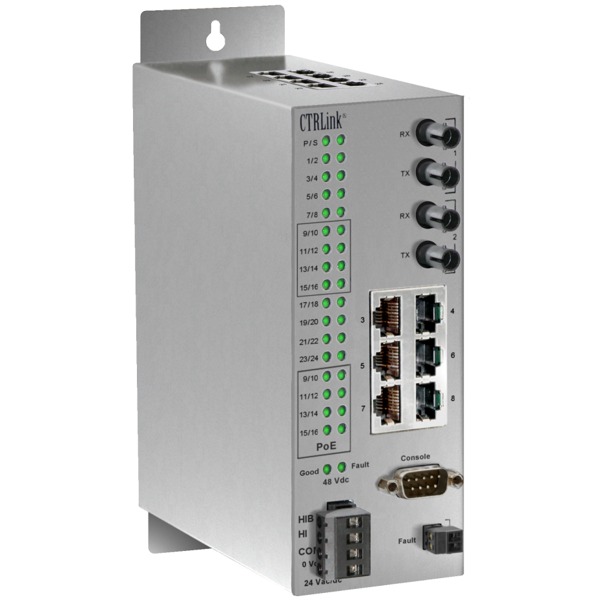

EIDX_MP Serie - Automation Switches mit Power over Ethernet
The Automation Switch is available in eight models — two all-copper and six copper/fibre. Fibre support includes multimode fibre with either ST or SC connectors or single mode fibre with SC connectors. Fibre port data rates are fixed at 100 Mbps full-duplex while all the copper ports can auto-negotiate data rate from 10 to 100 Mbps and from half- to full-duplex. Both the 16- and 24-port models have eight ports on the front and eight ports on the bottom while the 24-port model has an additional eight ports on top. The PoE ports are all located on the bottom. Copper ports utilize shielded RJ-45 connectors.
An abundance of LED indicators are available for monitoring switch status, port status and PoE status.
The unit can be either DIN-rail or panel mounted and must be powered from a 48 VDC isolated power supply. The switch electronics and EIA- 232 console port are isolated from the DC supply. A N.O. contact is available for signalling a fault condition to external equipment.
