MediaChassis/2 Serie - Gehäuse für die modularen "IMCV" Medienkonverter

MediaChassis/2 Serie - Gehäuse für "IMCV" Module

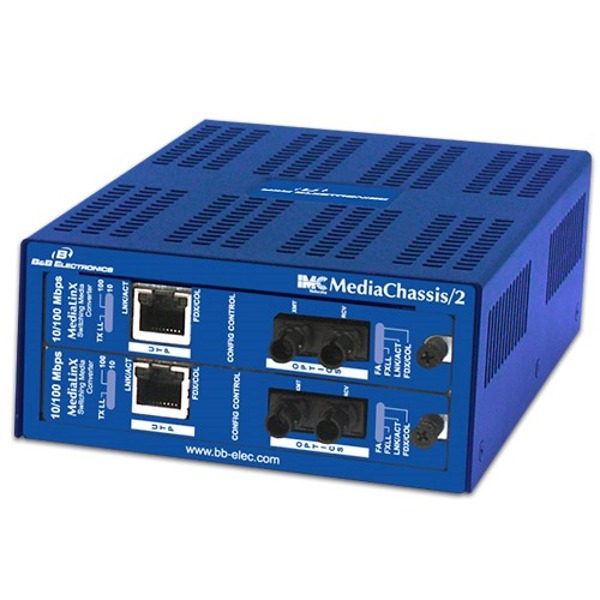

The MediaChassis/2 and IE-MediaChassis/2, flexible, table-top chassis support a variety of B&B Electronics media and mode converter modules for 10/100/1000 Ethernet, T1/E1, DS3/E3/STS-1, VDSL and CWDM networking technologies. This modular approach allows network operators to inexpensively change protocols by simply changing the module rather than the entire unit.

Networks utilizing a variety of fiber types will benefit, as well as networks operating multiple protocols such as TDM and Ethernet. With support for AC or DC powering options, the MediaChassis/2 is a cost-effective way to overcome a variety of media and mode conversion challenges.

Specifications

Technical

• Available with AC or DC power
• 2 Slot Chassis

Mechanical

• Dimensions 2.29”H x 4.74” W x 7.3”D (5.81cm H x 12.03cm W x 18.54cm D)
• Shipping Weight 1.9 lbs (0.86 kg)

Internal AC Power

• 100 to 240 VAC, 50/60Hz, 1.0A

Internal DC Power

• 35 to 75 VDC, 1.5A @ 75 VDC

Environmental

• Operating Temperature MediaChassis/1-AC: +32° F o +122° F (0° C to +50° C)
• Operating Temperature IE-MediaChassis/1-DC: -31° F to +176° F (-35° C to +80° C)
• Storage Temperature: -40° to +185° F (-40° to +85° C)
• Operating Humidity 5% to 95% (non-condensing), 0 – 10,000 ft. altitude

Regulatory Approvals MediaChassis/1-AC

• FCC Class B, UL/cUL, CE, CSA

Regulatory Approvals IE-MediaChassis/2-AC and DC

• FCC Class A, UL/cUL, CE, CSA, CB
