RS422/485 Repeater Serie - Optische RS-422/485 Isolatoren

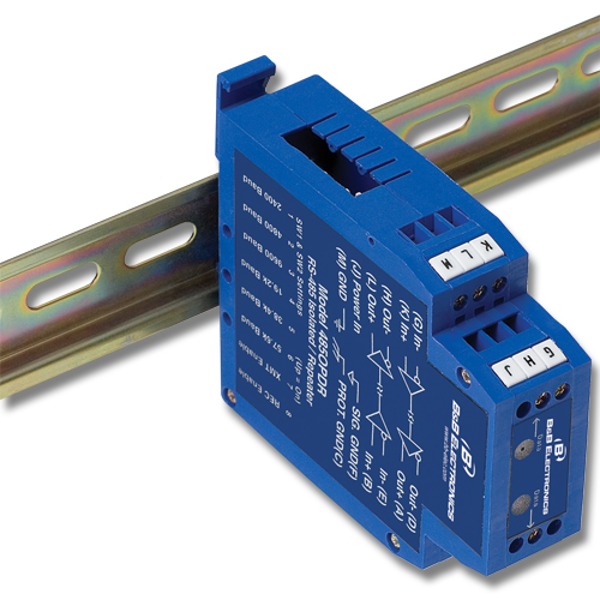

Der 485OPDR von B+B SmartWorx ist ein Optical RS-422/485 Isolator.
Der 485OPDR von B+B SmartWorx ist ein Optical RS-422/485 Isolator.
Der 485OPDRi von B+B SmartWorx ist ein Optical RS-422/485 Isolator.
Die optisch isolierten RS-422/485 Repeater von B+B SmartWorx sind ausgestattet mit einer 2kV Isolation, 2x Terminal Block, Datenraten bis zu 115.2 kbps, Betriebstemperaturen von -40 bis 80°C und Modbus Kompatibilität.

zum Merkzettel hinzufügen

Datenblatt zusenden


Optically Isolated RS422/485 Repeaters

  • Standard model - 485OPDR - features include 10-30 VDC operation, 2-way isolation, 2000V input/output, CE approved, UL Recognized.
  • Premium model - 485OPDRi - features include 10-48 VDC operation, triple isolation, 2000V input/output power supply, UL Class 1 Div 2 approval, cUL approval, CE approved.
  • Heavy Industrial / Power Utility Version - 485OPDRI-PH - features include IEC 61850-3 / IEEE 1613, 2KV isolation, -40 to 85° C, UL Class 1 Division 2.

Specifications

  • Wide temperature ranges (-40 to 80º C)
  • Modbus ASCII or RTU compatible
  • Automatic Send Data Control
  • 600 W surge suppression
  • DIN rail mount
Modelle
485OPDR RS-485/422 Isolated Repeater, DIN Rail
485OPDR-HS RS-485/422 Isolated Repeater, DIN Rail, High Speed
485OPDRKT RS-485/422 Isolated Repeater, DIN Rail Kit - 485OPDR and Power Supply
485OPDRI RS-485/422 Industrial Isolated Repeater, DIN Rail
485OPDRI-PH RS-485/422 Triple (Heavy Duty) Isolated Repeater, DIN Rail
485OPB RS-485 Optical Isolator, no power supply
