PIR Bewegungsmelder

Infrarot Bewegungsmelder von AKCP.
Infrarot Bewegungsmelder von AKCP.
Infrarot Bewegungsmelder von AKCP, Daisychain Beispiel.
Der Passiv Infrarot Bewegungsmelder von AKCP kann an Decken und Wände montiert werden, um Ihre Umgebung zu überwachen. Mittels Daisychain Verkettung können Sie mehrere Bewegungsmelder hintereinander hängen um mehrere Bereiche zu überwachen.

zum Merkzettel hinzufügen

Datenblatt zusenden

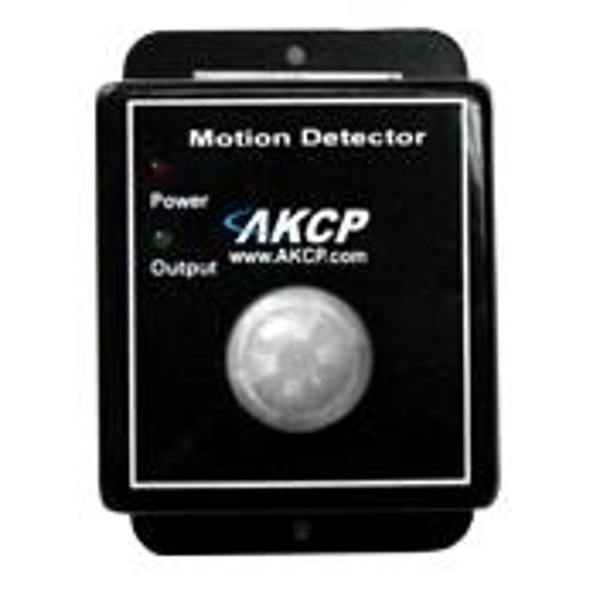

PIR Hardware Motion Detector - MD00

The AKCess Pro PIR Hardware Motion Detector is the perfect accompaniment as part of your security monitoring system. Its unique design allows mounting in either ceiling or walls and characterizes the optimum detection angle to prevent false alarms.

Although compatible with both sensorProbe and securityProbe product series, it is ideally suited to the securityProbe product line. When combined with the securityProbe 5E’s notifications, cameras and security sensor it provides a complete network enabled security monitoring system.

When motion is detected notifications can be sent from the securityProbe 5E via SMS, E-mail or MMS (amongst others) and even have pictures from installed cameras attached to give instant visual feedback as to the developing situation.

Features And Benefits

  • Wall/ceiling mounted design
  • 60º detection angle
  • High RFI immunity
  • Powered by base unit, no additional power required
  • Up to 10 Motion Detector Sensors on a single port
Specifications
Power SupplyPowered by sensorProbe / securityProbe
Power ConsumptionTypical 51.40 mWatt, 10.28mA | Infrared sensor dual element | High sensitivity
Temperature-20 °C~50 °C (4 °F~122 °F)
Dimensions65 mm × 60 mm x 35 mm
Detection angle60°
