ConnectPort® TS 4x4 - Serielle Geräteserver inkl. Ethernet Switch

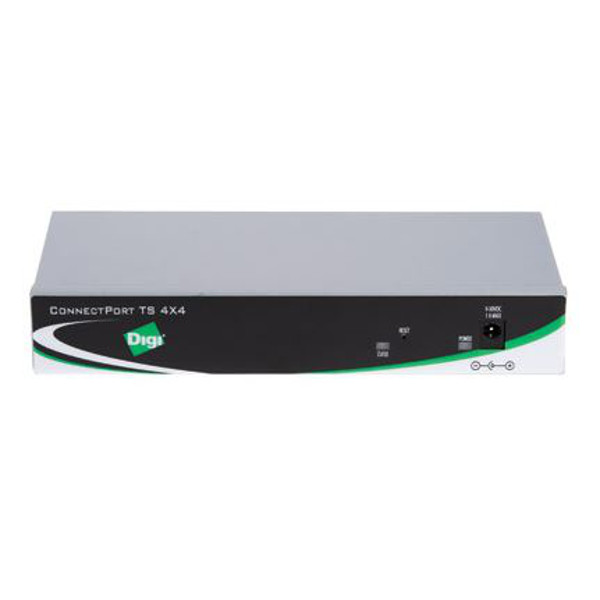

Der ConnectPort TS 4x4 von Digi ist ein Geräteserver inklusive Ethernet Switch - Front.
Der ConnectPort TS 4x4 von Digi ist ein Geräteserver inklusive Ethernet Switch - Front.
Der ConnectPort TS 4x4 von Digi ist ein Geräteserver inklusive Ethernet Switch - Back.
Der seriellen Geräteserver ConnectPort® TS 4x4 von Digi ist ausgestattet mit IPv4/IPv6, Python Entwicklungsumgebung, SSL/TLS sowie SSHv2 Security, 4x4 Ethernet/Serial Ports und den Standards RS-232/422/485.

zum Merkzettel hinzufügen

Datenblatt zusenden

ConnectPort® TS 4x4 - Serial port device server and Ethernet switch

The ConnectPort TS 4x4 family of device servers provides serial device network connectivity and remote Ethernet switch capability. Supporting multiple serial and Ethernet ports, this product is ideal for medical, utility, traffic, retail and POS, industrial automation, banking and many more applications.

Digi’s patented RealPort® software establishes a connection between the server and networked serial devices, creating a local COM/TTY port on the server. RealPort technology allows almost any software application to work with Digi networked device servers without modification.

Configuration and management is available through an integrated and secure web user interface as well as a powerful Command Line Interface (CLI) option.

The Python® development environment built into ConnectPort TS 4x4 device servers enables application customization. This easy-to-use, universal programming language allows complete control of device connections, data manipulation and event based actions.

ManagementHTTP/HTTPS, SSH, CLI or Telnet, Optional secure enterprise management via Digi Connectware® Manager
ProtocolsUDP/TCP, DHCP, SSH, Extended Telnet RFC 2217, Telnet, Reverse Telnet, IPv4/IPv6, Modbus to Modbus/TCP protocol conversion support
SoftwareDevice-initiated patented RealPort® COM port redirector and RFC2217, Python® custom development environment
Status LEDsEthernet (link and activity), power on diagnostic
Dimensions (L x W x H) & Weight7.75 in x 4.11 in x 1.30 in (19.7 cm x 10.40 cm x 3.30 cm), 1.4 lbs (0.64 kg)
SecuritySSL, SSL/TLS, SSHv2, FIPS 197 (serial port), SNMPv2, PPP
Interfaces - Serial
Ports4 RS-232 RJ-45 serial ports
ThroughputUp to 230 Kbps
Signal SupportTXD, RXD, RTS, CTS, DTR, DSR, DCD
Interfaces - Ethernet
Ports4 RJ-45 switch ports
Physical Layer/Data Rate10/100Base-T, 10/100 Mbps
ModeFull or Half duplex
Power Requirements
Power Input9-30VDC
Power Supply12VDC power supply for 0° C to +60° C (32° F to +140° F) with locking barrel connector included
Power ConsumptionIdle: 3.1 W, Max: 11.5 W
Surge Protection4 kV burst (EFT) per EN61000-4-4, 2 kV surge per EN61000-4-5
Operating Temperature0° C to +60° C (32° F to +140° F)
Storage Temperature-40° C to +85° C (-40° F to +185° F)
Relative Humidity5% to 95% (non-condensing)
Ethernet Isolation1500VAC min per IEEE802.3/ANSI X3.263
Serial Port Protection (ESD)+8kV Air discharge and +4kV Direct discharge, per EN61000-4-2
SafetyUL 60950, CSA 22.2 No. 60950, EN60950
Emissions/ImmunityCE, FCC Part 15 (Class A), AS/NZS CISPR 22, EN55024, EN55022 (Class A)
ConnectPort TS 4x4CPTS-4R4E-R
