EKI-1300 Serie - Serielle WLAN Geräteserver

Der EKI-1300 von B-B SmartWorx (Advantech) ist ein Geraeteserver.
Der EKI-1300 von B-B SmartWorx (Advantech) ist ein Geraeteserver.

Die seriellen Geräteserver der EKI-1300 Serie von B+B SmartWorx (Advantech) sind ausgestattet mit 1 oder 2 seriellen RS-232/422/485 Ports, einem WLAN Anschluss mit 802.11 b/g/n oder 802.11 b/g Standards und Baudrateen bis zu 921 kbps.

zum Merkzettel hinzufügen

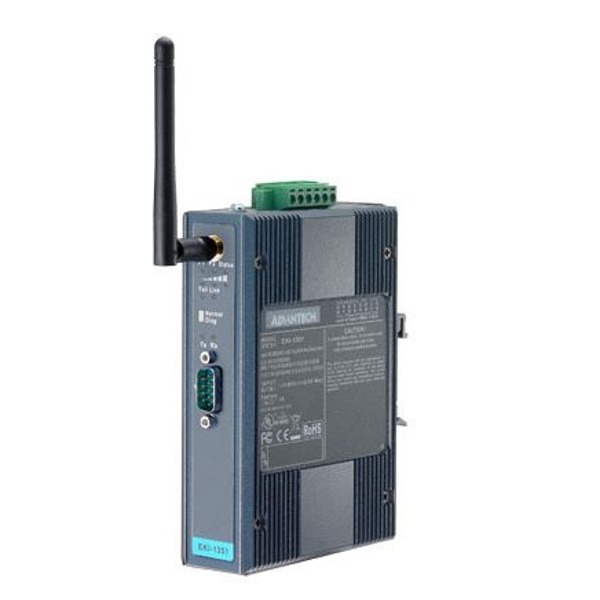

EKI-1300 Series - Serial to 802.11 b/g WLAN Device Server

EKI-1351 and EKI-1352 Serial to 802.11 b/g WLAN Serial Device Servers provide a quick, simple and cost-effective way to bring the advantages of remote management and data accessibility to thousands of devices that cannot connect to a network.

With EKI-1351 and EKI-1352, your existing serial devices can be used with the most popular operating systems on the market. There is no need to write special drivers for specific operating systems. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming. That saves a lot of cost and effort. In addition, you can actively request data or issue commands from the RS-232/422/485 side or Wireless Ethernet side. This data can be sent bilaterally. Thus, the EKI-1351 and EKI-1352 are especially suitable for remote monitoring environments such as security systems, factory automation, SCADA, transportation and more.

Specifications

  • Link any serial device to an IEEE 802.11 b/g network
  • Supports wireless LAN Ad-Hoc and Infrastructure modes
  • Provides COM port redirection, TCP, UDP, and pair connection modes
  • Supports up to 921.6 kbps, and any baud rate setting
  • Provides Web-based configuration and Windows utility
  • Allows a max. of 5 hosts to access one serial port
  • Supports Windows 2000/XP/Vista/7, Windows CE, and Linux drivers
  • Allows a max. of 4 hosts to be accessed as TCP client mode
  • Built-in 15 KV ESD protection for all serial signals
  • Supports DHCP protocol
  • Supports secure access with WEP, WPA, WPA2
Modelle
EKI-13611 Port RS-232/422/485 to 802.11b/g/n WLAN Serial Device Server
EKI-13622 Port RS-232/422/485 to 802.11b/g/n WLAN Serial Device Server
EKI-13511 Port RS-232/422/485 to 802.11 b/g Serial Device Server
EKI-13522 Port RS-232/422/485 to 802.11 b/g Serial Device Server
