Hubport® - Switched USB Erweiterungshub

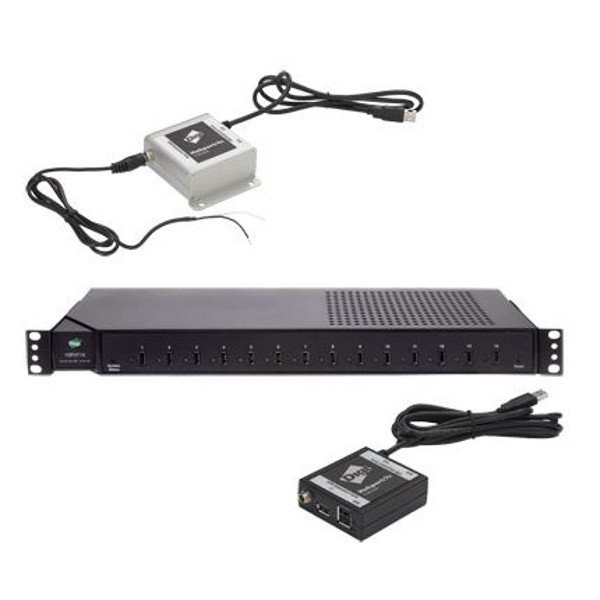

Der Hubport von Digi ist ein USB Erweiterungshub.
Der Hubport von Digi ist ein USB Erweiterungshub.
Die Switched USB Erweiterungshubs der Hubport® Serie von Digi sind ausgestattet mit industriellen USB 2.0 Standards, 4 oder 7 Ports in einem kompakten Kunststoff- oder Metallgehäuse und sie können mit 12V oder 24V Autobatterien betrieben werden.

zum Merkzettel hinzufügen


Hubport® - Switched USB Expansion Hubs

Hubport offers a simple solution for adding switched Universal Serial Bus (USB) ports to a PC, server or thin client. This external, user installable solution plugs into an existing USB port to provide four or seven additional USB 2.0 ports in a compact chassis for instant peripheral device connectivity. The switched USB architecture guarantees maximum performance on all ports simultaneously. Hubport is available in AC powered and DC powered models.

USB Features
Ports4, 7 or 14 USB Type A ports (USB 2.0, 1.1 and 1.0 compatible)
Data Rate480 Mbps (on USB 2.0 models); Multi-TT switched USB architecture guarantees a full 12 Mbps simultaneously on all downstream ports, even if a high-speed 480 Mbps transfer is active
CablesIncludes 1-meter USB cable
General Features
PowerIndividual port power management; 5.5-30VDC powered models for mobile applications; 500 mA downstream power available per port; Locking power connector; 120-230VAC 50-60Hz IEC 60320 inlet (Hubport/14 only)
Operating SystemsLinux®*, Windows® 7, Windows Vista®, Windows Server® 2008, Windows XP®, Windows® XP Embedded, Windows NT® 4.0**, Windows NT Embedded**, Windows CE, Windows Server® 2003, Windows 2000 *Third-party support only. **Supported when connecting Digi products.
LEDsSystem power, Port status (4-port models: 5 LEDs; 7-port models: 8 LEDS; 14-port model: 15 LEDs)
Dimensions (L x W x H) & WeightHubport/4c, Hubport/ 4c DC, Hubport/7c, Hubport/7c DC: 2.61 in x 3.00 in x 1.00 in (6.63 cm x 7.62 cm x 2.54 cm); 6.20 oz (175.80 g) Hubport/4cM, Hubport/4cM DC: 3.74 in x 3.00 in x 1.39 in (9.50 cm x 7.62 cm x 3.53 cm); 7.60 oz (215.50 g) Hubport/14: 4.97 in x 17.00 in x 1.74 in (12.62 cm x 43.18 cm x 4.42 cm); 35.00 oz (1134 g)
OtherNo additional IRQ or memory address requirements; Hot-swappable; Rack-mountable; Plug and Play; Metal enclosures and DC-powered models available
Power Requirements
Power Input (AC Models)Ships with plug-mounted 120-230VAC 50-60 Hz at 5VDC @ 3Amps max
Power Input (DC Models)Variable power DC products are 5.5V to 30V
Environmental
Operating Temperature0° C to 55° C (32° F to 131° F)
Relative Humidity0% to 95% (non-condensing)
Approvals
SafetyEN60950, UL 1950, CSA 2.2 No. 950, IEC 950
Emissions/ImmunityCE, FCC Part 15, Class B, EN55022 Class B, EN55024
14-Port AC Model
Hubport/14 - 14-port USB hub 19" rack 1U HP-USB-14-W
4- and 7-Port Compact AC Models
Hubport/4c - 4-port switched USB 2.0 hub 301-2010-24
Hubport/7c - 7-port switched USB 2.0 hub 301-2010-27
4- and 7-Port Compact 5.5-30V DC Models
Hubport/4c 5.5-30V DC powered USB 2.0 hub 301-1010-44
Hubport/7c 5.5-30V DC powered USB 2.0 hub 301-1010-78
4-Port Compact Metal AC Model
Hubport/4cM - 4-port switched USB 2.0 hub with metal chassis 301-2010-36
4-Port Compact Metal DC Model
Hubport/4cM DC - 4-port switched USB 2.0 hub 301-1010-34
