USB zu Seriell Serie - USB zu Seriell Mini-Konverter

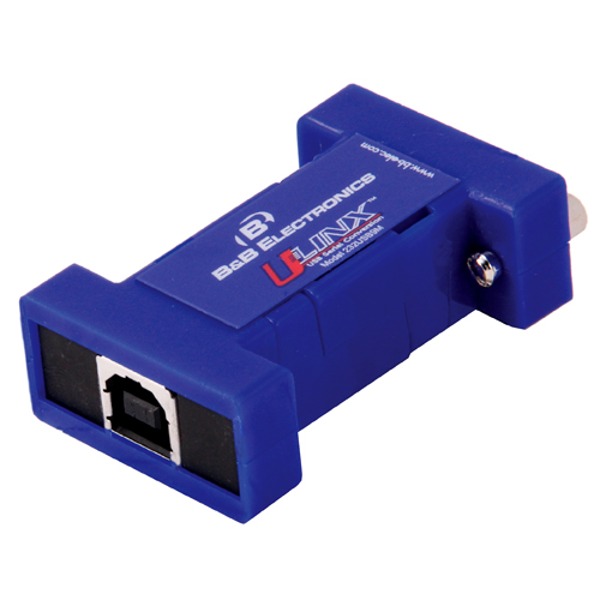

Der 232USB9M von B+B SmartWorx ist ein USB zu Seriell Konverter.
Der 232USB9M von B+B SmartWorx ist ein USB zu Seriell Konverter.
Der 485USB9F-2W von B+b SmartWorx ist ein USB zu Seriell Konverter.
Der 485USBTB-2W von B+B SmartWorx ist ein USB zu Seriell Konverter.

Die USB zu Seriell Mini-Konverter von B+B SmartWorx sind ausgestattet mit einem seriellen RS-232 oder RS-485 Port, DB9 Male, DB9 Female oder Terminal Block Anschluss und einem USB 2.0 Port.

zum Merkzettel hinzufügen


USB to Serial Mini-Converters – For the Technician on the go

These compact USB to Asynchronous Serial RS-232 and RS-485 mini-converters allow you to add a serial port to your USB only PC. They are perfect connecting to a remote device to gather data or upload a program. USB 2.0 compatibility makes installing them on your PC easy. Versions are available with DB9 connectors and Terminal Blocks for quick wiring. We support RS-232, RS-485 (2-Wire) and RS-485 (4-Wire) protocols. Need 5 Volt and 3.3 Volt TTL? We even have a converter for that. Our driver software supports operating systems up to Windows 8 with 32 and 64 bit support.

Multiple versions for a wide variety of applications

USB Cable Included. RS-232 data rates up to 460 Kbps. RS-485 data rates up to 921.6 Kbps. In addition to the protocol and connector options, you can select between two configurations – “LS” and Standard. To better support field service pools, we created “LS” versions.  Simply put, “LS” stands for “Locked Serial Number.” Units that are programmed with the “locked serial number” are field service friendly in that they all share the same serial number. This feature allows for a single driver installation – if you plug another “LS” version of the same model number into your PC, it will be assigned to the same COM port. With the standard version each time you install a product with the same model number, you must go through the driver installation and it will be assigned to a unique COM port.

In many field service applications, it is a good idea to isolate the serial port from your USB port. If isolation is necessary for your application, check out our popular USO9ML2 and USOPTL4 USB to Serial Converters.

Details zur USB zu Seriell Serie

232USB9M & 232USB9M-LS

  • Asynchronous Serial Protocol: RS-232
  • Signals Supported: Data & Control Signals
  • Serial Connector: DB9 Male (DTE – Data Terminal Equipment)
  • Data Rate: Up to 460.8 Kbps
  • USB Standards: USB 2.0
  • Power: USB Port Powered, Low Power Device
  • Operating Temperature: 0 to 70 C

485USB9F-2W & 485USB9F-2W-LS

  • Asynchronous Serial Protocol: RS-485 (2-Wire)
  • Signals Supported: Data A (-), Data B (+)
  • Serial Connector: DB9 Female
  • Data Rate: Up to 921.6 Kbps
  • USB Standards: USB 2.0
  • Power: USB Port Powered, Low Power Device
  • Operating Temperature: 0 to 70 C

485USBTB-2W & 485USBTB-2W-LS

  • Asynchronous Serial Protocol: RS-485 (2-Wire)
  • Signals Supported: Data A (-), Data B (+)
  • Serial Connector: Removable Terminal Block
  • Data Rate: Up to 921.6 Kbps
  • USB Standards: USB 2.0
  • Power: USB Port Powered, Low Power Device
  • Operating Temperature: 0 to 70 C

485USBTB-4W & 485USBTB-4W-LS

  • Asynchronous Serial Protocol: RS-485 (2-Wire)
  • Signals Supported: TDA (-), TDB (+), RDA (-), RDB (+)
  • Serial Connector: Removable Terminal Block
  • Data Rate: Up to 921.6 Kbps
  • USB Standards: USB 2.0
  • Power: USB Port Powered, Low Power Device
  • Operating Temperature: 0 to 70 C

TTL3USB9M & TTL3USB9M-LS

  • Serial Protocol: 3.3 V TTL
  • Signals Supported: TD, RD, CTS, RTS,
  • Serial Connector: Removable Terminal Block
  • Data Rate: Up to 460.8 Kbps
  • USB Standards: USB 2.0
  • Power: USB Port Powered, Low Power Device
  • Operating Temperature: 0 to 70 C

TTL5USB9M & TTL5USB9M-LS

  • Serial Protocol: 5 V TTL
  • Signals Supported: TD, RD, CTS, RTS,
  • Serial Connector: Removable Terminal Block
  • Data Rate: Up to 460.8 Kbps
  • USB Standards: USB 2.0
  • Power: USB Port Powered, Low Power Device
  • Operating Temperature: 0 to 70 C
Modelle
232USB9MRS-232 DB9 Male USB Converter
232USB9M-LSRS-232 DB9 Male USB Converter, Locked Serial Number
485USB9F-2WRS-485 2 wire/DB9 Female USB Converter
485USB9F-2W-LSRS-485 2 wire/DB9 Female USB Converter, Locked Serial Number
485USB9F-4W RS-485 4 wire/DB9 Female USB Converter
485USBTB-2WRS-485 2 Wire/Terminal Block USB Converter, High Retention USB Port
485USBTB-2W-LSRS-485 2 Wire/Terminal Block USB Converter, High Retention USB Port, Locked Serial Number
485USBTB-4WRS-485 4 Wire/Terminal Block USB Converter, High Retention USB Port
485USBTB-4W-LSRS-485 4 Wire/Terminal Block USB Converter, High Retention USB Port, Locked Serial Number
485USB9F-4W-LSRS-485 4 Wire/DB9 Female USB Converter, Locked Serial Number
TTL3USB9MTTL 3.3V DB9 USB Converter
TTL3USB9M-LSTTL 3.3V DB9 USB Converter, Locked Serial Number
TTL5USB9MTTL 5V DB9 USB Converter
TTL5USB9M-LSTTL 5V DB9 USB Converter, Locked Serial Number
