USR6 Serie - Robuster USB zu Seriell Konverter

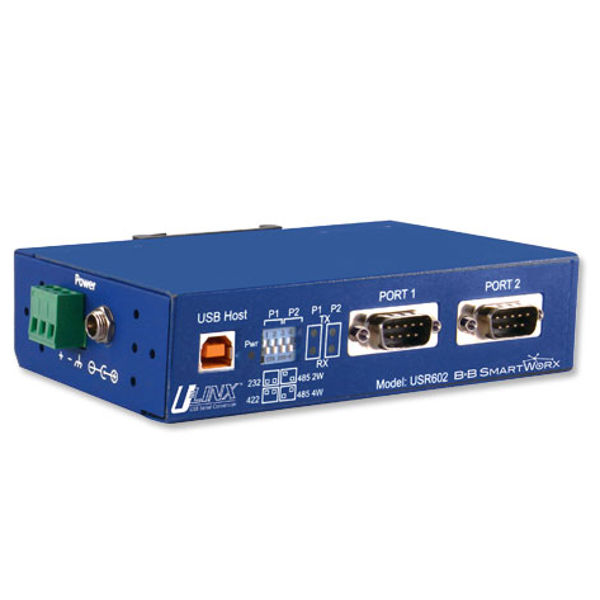

Der USR602 von B+B SmartWorx ist ein robuster USB zu Seriell Konverter.
Der USR602 von B+B SmartWorx ist ein robuster USB zu Seriell Konverter.
Der USR604 von B+B SmartWorx ist ein robuster USB zu Seriell Konverter.

Die robusten USB zu Seriell Konveter der USR6 Serie von B+B SmartWorx sind ausgestattet mit 2 oder 4 seriellen RS-232, RS-422 oder RS-485 Ports, einem USB 2.0 Type B Port, 2kV Isolation Protection und haben ein Heavy Duty Metallgehäuse mit Panel- oder DIN-Rail Montagemöglichkeit.

zum Merkzettel hinzufügen


USO6 Series - Ruggedized USB To Serial Converters

The USR602 and USR604 are packaged in a rugged metal housing. The serial ports are configurable for RS-232, RS-422 and RS-485 (2-Wire & 4-Wire) at speeds up to 921.6 Kbps. Modbus support enables them to be used with a wide variety of industrial devices. USB Connectivity is provided through USB 2.0 Type B High Retention Connector with 3.2 lbs.-force minimum disconnect strength. 10 to 48 VDC power is supplied through a removable three position terminal block. There is an additional threaded barrel connector if your application requires an AC power adapter such as our PS12VLB-INT-MED. USB driver software is included on CD ROM or can be downloaded from this web site. The drivers support Windows Operating Systems up to Windows 8 (32 and 64 bit). Refer to the downloads tab for the latest revision. Each unit comes with DIN Rail and panel mounting hardware, giving maximum flexibility for your installation.

Specifications

  • USB Standards – USB 1.1 & 2.0
  • Upstream USB Port – Type B high retention (3.4 lbs-force withdrawal) – tested with standard USB cable
  • Downstream Serial Ports – DB9 male
  • Isolation – 2 kV port-to-port
  • USB Speed – high speed (480 Mbps)
  • Serial Data Rate – 921.6 Kbps
  • Power – 10 to 48 VDC, dual input with terminal block or locking barrel power supply
  • Operating Temperature– -40 to 80°C
  • Mounting – DIN and Panel Mount Brackets included
  • Shock Tested – 50 g
  • Vibration Tested – 4 g
  • Drop Tested – 10 drops to sides, corners, edges
  • Modbus compatible
Modelle
USR602 USB To Isolated RS-232/422/485 - 2 Port
USR604 USB To Isolated RS-232/422/485 - 4 Port
