ABDN-IN Serie - Dual-Band Ethernet Bridge/Router

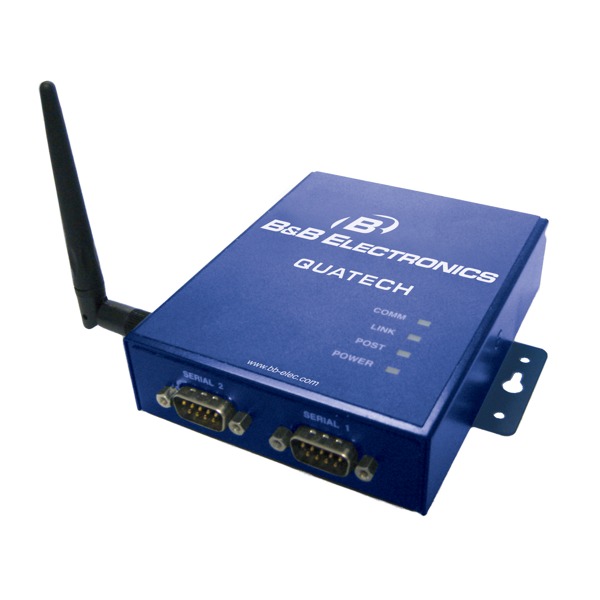

Der ABDN-SE-IN5420 von B+B SmartWorx ist ein Wireless Bridge/Router.
Der ABDN-SE-IN5420 von B+B SmartWorx ist ein Wireless Bridge/Router.
Der ABDN-SE-IN5410 von B+B SmartWorx ist ein Wireless Bridge/Router.
Der ABDN-ER-IN5010/5018 von B+B SmartWorx ist ein Wireless Bridge/Router.

Die industriellen Wireless Bridges/Router der ABDN-IN Serie von B+B SmartWorx sind ausgestattet mit Dual-Band (2.4 & 5 GHz), bis zu 2 seriellen RS-232/422/485 Ports, Ethernet 10/100, 2kV Überspannungsschutz, optionalem Power over Ethernet, SpeedLink und Betriebstemperaturen von -40°C bis 85°C.

zum Merkzettel hinzufügen


AirborneM2M ABDN Serie - Wi Fi Router/Bridge/Serial Server

The AirborneM2M™ line of industrial wireless device serial servers and Ethernet Bridge/Routers are built for networking equipment in an array of machine-to-machine (M2M) applications. AirborneM2M™ Industrial Series feature industrial strength packaging and support a wide temperature rating (-40° to 85°C) to withstand challenging M2M environments. Available in both single and dual serial port models or a single Ethernet port model. Power options include 5-36VDC input or PoE 802.3af (Power over Ethernet) on select models.

Dual-Band Wi-fi

The AirborneM2M™ products establish wireless connections over both 2.4 GHz and 5 GHz bands. Whenever the 2.4 GHz airspace is overcrowded with competing wireless transmission, AirborneM2M™ products can be switched over to 5 GHz band to keep data flowing.

Enterprise Class Security

Security protocols are important to mission-critical wireless M2M applications. AirborneM2M™ multi-layered security approach addresses the requirements of Enterprise-class networks and corporate IT departments. These advanced security features include wireless security (801.11i/WPA2 Enterprise); network security (EAP authentication and certificate support); communication security (SSH functionality and fully encrypted data tunnels); and device security (multi-level encryption capability to protect configuration data.

SpeedLink™ Roaming

The latest AirborneM2M™ SpeedLink™ roaming feature further enhances the high level of connection reliability. SpeedLink™ enables AirborneM2M™ devices to roam quickly and freely throughout a wireless network without loosing important data. If you’re walking around a hospital or driving through a warehouse, SpeedLink™ ensures you stay connected.

Specifications
Wireless Technology:IEEE 802.11 a/b/g/n, WIFI Compilant
Wired Interface:2 ports, RS-232/422/485 (RS-232/422 4 wire or RS-485 2 wire) | 10/100 Ethernet port (Bride, Router (NAT3) Modes) Software selectable
Frequency2.4 ~ 2.4835 GHz | 5.150 ~ 5.350 GHz | 5.725 ~ 5.825 GHz
Channels13 Channels 802.11 b/g | 19 Channels 802.11a
Wireless Data Rates:802.11a/g 54, 48, 36, 24, 18, 12, 9, 6 Mbps | 802.11b = 11, 5.5,2,1 Mbps | 802.11n 65, 58.5, 42, 39, 26, 19.5, 13, 6.5 Mbps
Wireless Security:Open | WEP 64 & 128 bit | WPA-PSK (TKIP) | WPA2-PSK (AES) | 802.1x (EAP) | WPA-Enterprise | WPA2-Enterprise | EAP-TLS/MSCHAPv2 | EAP-TTLS/MSCHAPv2 | EAP-TTLS (MD5) | EAP-PEAPv0/MSCHAPv2 | LEAP
Transmit Power:802.11b 15 dBm (31.6mW) | 802.11g 12.6dBm (18.12mW) 802.11a | 17 dBm (50.1mW)
Input Voltage:5-36VDC +/-5%, 500mA (MAX)
Power Connection:2-position terminal block, 2.1mm barrel jack; PoE 802.3af
PoE:PoE using a 802.3af Class 1 PSE device
Opterating Temperature-40° to +85°C
Modelle
ABDN-ER-IN5010Dual Band 802.11 a/b/g/n (2.4 GHz, 5 GHz) Industrial Wireless Ethernet Bridge and Router, 10/100 Ethernet Port
ABDN-ER-IN5018Dual Band 802.11 a/b/g/n (2.4 GHz, 5 GHz) Industrial Wireless Ethernet Bridge and Router, 10/100 Ethernet Port; PoE Power Option
ABDN-SE-IN5410Dual Band 802.11 a/b/g/n (2.4 GHz, 5 GHz) Industrial Wireless Ethernet Device Server, 1 Port RS-232/422/485
ABDN-SE-IN5420Dual Band 802.11 a/b/g/n (2.4 GHz, 5 GHz) Industrial Wireless Ethernet Device Server, 2 Port RS-232/422/485
