APXN Serie - AirborneM2M Wireless Access Point

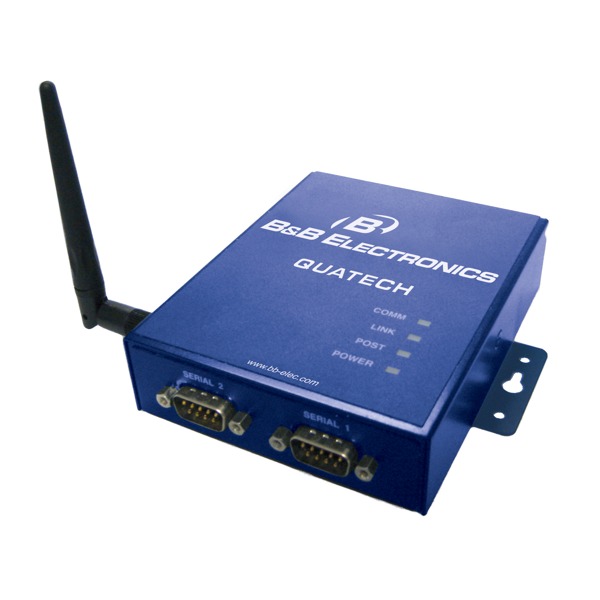

Der APXN-Q5428 von B+B SmartWorx ist ein WIFI Access Point.
Der APXN-Q5428 von B+B SmartWorx ist ein WIFI Access Point.
Die Wireless Access Points der APXN Serie von B+B SmartWorx sind ausgestattet mit bis zu 2 seriellen RS-232/422/485 Ports oder Ethernet 10/100 (Power of Ethernet optional), 2kV Überspannungsschutz, Frequenzen von 2.4 oder 5GHz und Betriebstemperaturen von -40°C bis 85°C.

zum Merkzettel hinzufügen

Datenblatt zusenden


APXN Series - Industrial Wireless WIFI Access Point

The AirborneM2M™ line of industrial wireless access points is built for networking equipment in an array of machine-to-machine (M2M) applications. AirborneM2M™ Access Point features industrial strength packaging and support a wide temperature rating (-40° to 85°C) to withstand challenging M2M environments. Power options include 5-36VDC input or PoE 802.3af (Power over Ethernet) on select models.

Combination Access Point and Client Capability

The AirborneM2M™ Access Point enables M2M equipment to create a self sufficient Wi-Fi network and easy access to equipment data or resources from WiFi enabled devices. The product also has the capability to be switched from an access point to a client; supporting both a single or dual RS-232/422/485 serial ports or a single 10/100 Mbps Ethernet port. The Ethernet port can be placed into either a router or bridge mode.

Dual-Band Wi-fi

The AirborneM2M™ products establish wireless connections over both 2.4 GHz and 5 GHz bands. Whenever the 2.4 GHz airspace is overcrowded with competing wireless transmission, AirborneM2M™ products can be switched over to 5 GHz band to keep data flowing.

Enterprise Class Security

Security protocols are important to mission critical wireless M2M applications. The AirborneM2M™ Access Point multi-layer security approach addresses the requirements of Enterprise-class networks and corporate IT departments. These advanced security features include wireless security (802.11i/WAP2 enterprise); authentication security using WPA2 (AES-CCMP) and device security (multi-layered encryption). The AirborneM2M™ access point includes a fully functional DHCP server to provide unique addresses for each authenticated client. Up to 10 clients can be supported on the local Wi-Fi network.

Specifications
Wireless Technology:IEEE 802.11 a/b/g/n, WIFI Compilant
Wired Interface:2 ports, RS-232/422/485 (RS-232/422 4 wire or RS*485 2 wire)
Frequency:2.4~2.4835 GHz Europe | 5.150~5.350 GHz | 5.725~5.825 GHz
Channels:13 Channels 802.11 b/g | 19 Channels 802.11a
Wireless Data:802.11a/g 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Rates:802.11b = 11, 5.5,2,1 Mbps | 802.11n 65, 58.5, 42, 39, 26, 19.5, 13, 6.5 Mbps
Network Protocols:TCP/IP, ARP, ICMP, DHCP, DHS, UDAP, TFTP, UDP, PING, HTTP, FTP
Wireless Security:Open | WEP 64 & 128 bit | WPA-PSK (TKIP) | WPA2-PSK (AES) | 802.1x (EAP) | WPA-Enterprise | WPA2-Enterprise | EAP-TLS/MSCHAPv2 | EAP-TTLS/MSCHAPv2 | EAP-TTLS (MD5) | EAP-PEAPv0/MSCHAPv2 | LEAP
Secure Communications:SSH and SSL tunneling | Encrypted configuration
Transmit Power:802.11b 15 dBm (31.6mW) 802.11g 12.6dBm (18.12mW) 802.11a 17 dBm (50.1mW)
Input Voltage:5-36VDC +/-5%, 500mA (MAX)
PoE:PoE using a 802.3af Class 1 PSE device
Operation Temperature:-40° to +85°C
Modelle
APXN-Q5420Dual Band 801.11 a/b/g/n (2.4 GHz and 5 GHz) Industrial M2M Wireless Access Point, 10/100 Ethernet Port, 2x RS-232/422/485 Ports
APXN-Q5428Dual Band 801.11 a/b/g/n (2.4 GHz and 5 GHz) Industrial M2M Wireless Access Point, 10/100 Ethernet Port, 2x RS-232/422/485 Ports; PoE Power Option
