8 Port Sensor Controlled Relay

8 Port Sensor Controlled Relay von AKCP.
8 Port Sensor Controlled Relay von AKCP.
8 Port Sensor Controlled Relay von AKCP
Das 8 Port Sensor Controlled Relay von AKCP hat 8 intelligente Sensorports und antwortet automatisch auf die Benachrichtigungen der verschiedenen Sensoren. Somit muss der Benutzer nicht selbst z.B. Kühlungen einschalten wenn ein Sensor zu hohe Temperatur meldet.

zum Merkzettel hinzufügen

Datenblatt zusenden

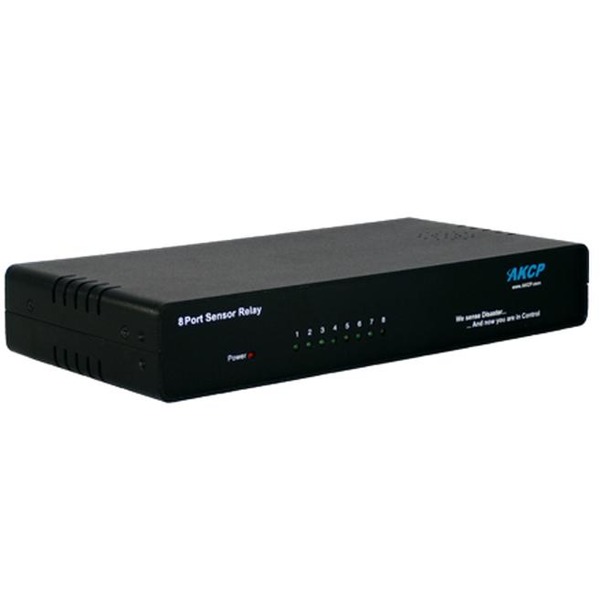

8 Port Sensor Controlled Relay - 8PRB

The 8 Port Sensor Relay is specially designed multiport relay for advanced process control. The 8 Port Sensor Relay is easily controlled by any of AKCess Pro’s extensive selection of sensors. The relay can provide automatic responses to sensor status changes. Setting up the sensor controlled relay is easy with its built in autosense feature and user friendly web interface.

The 8 Port Sensor Relay can be controlled via the integrated web interface on the securityProbe. In addition, the relay can also be controlled via external computers using the included snmp command line utilities either interactively or programmatically.

The automatic response to sensor changes gives users more flexibility in responding to the environmental alerts. Automatic response eliminates the need for the user intervention during the alarm condition, preventing substantial damages by for instance switching on/off crucial equipment.

  • Power Switching
  • On/Off Control for cooling equipment
  • Activating Alarms
  • Process Control
  • Energy Management Systems

Funktionen und Vorteile des 8PRB Relais

Features And Benefits

  • Relay designed to control switching application over IP through AKCess Pro securityProbe
  • PCB, Connector and Contacts rated up to maximum 5A 30 VDC, 1A 220 VAC
  • Operates from a single +5 V DC Power Supply from the securityProbe, or additional 7.5VDC adapter
  • Provide 3 positions Terminal Block which includes Normally Open, Normally Close and Common
  • LEDs indicating the status of the Relay and Power Supply
  • Up to 64 (8 relays per RJ45) Relays per securityProbe
  • Full auto-sense including disconnect alarm

Relay Contact Ratings

  • Contact Material AgCdO
  • Carry Current 16 A
  • Max. Operating Voltage 380 VAC, 125 VDC
  • Max. Operating Current 16 A
  • Max. Switching Capacity 4,000 VA,
  • 480W with Resistive Load 2,000 VA, 240W with Inductive Load (P.F=0.4)
  • Power Consumption: Typical 2475.00 mWatt, 495.00 mA
Power Supply7.5VDC 3A (optional, needed if there are more than 8 relays are connected)
Dimensions10.83″ x 5.43″ x 1.80″
Operating Temperature-40°C to 85°C
Storage Temperature-40°C to 85°C
