IMCV-S2MM Serie - Single-Mode zu Multi-Mode Glasfaser Moduskonverter

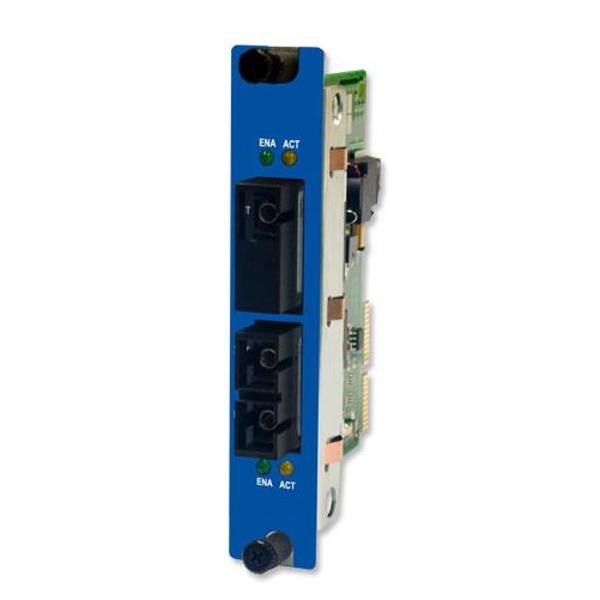

Der IMCV-S2MM von B+B SmartWorx ist ein Glasfaser Moduskonverter.
Der IMCV-S2MM von B+B SmartWorx ist ein Glasfaser Moduskonverter.
Die modularen Single- zu Multi-Mode Glasfaser Moduskonverter von B+B sind protokollunabhängig, erreichen Datenraten bis zu 1.25 Gbps, Distanzen bis zu 80km und können mit SNMP gemanagt werden.

zum Merkzettel hinzufügen

Datenblatt zusenden

IMCV-S2MM Series - Protocol-Independent, SNMP-Manageable Fiber Mode Conversion Modules

In today’s dynamic networks, changing requirements are a fact of life. The multi-mode fiber products and cabling which were the most cost effective and sound choice for your network yesterday may no longer give you the flexibility you require when adding remote offices today. Extend a single mode conversion to another single mode fiber segment, using an S2SM.

As an economical alternative to using a switch with single-mode fiber ports, simply install an fiber mode converter into your multi-mode fiber network. This enables you to easily connect to single-mode cabling and achieve distances up to 80 km. Our fiber mode converters also give you the flexibility to add single-mode fiber links only where needed. The iMcV-S2SM fiber mode conversion modules includes:

  • Converts Single-Mode to Single-Sode fiber
  • Supports 10 Mbps Ethernet to 155 Mbps or 1.25 Gbps Gigabit Ethernet

Hot-swappable fiber mode conversion modules significantly reduce operation costs by allowing other modules within the same chassis to remain up and running during product upgrades, maintenance and troubleshooting.



  • Includes protocol-independent operation
  • Converts between dissimilar fiber modes and wavelengths: Single-Mode to Multi-Mode
  • Ethernet, Fast Ethernet and ATM
  • OC-12, Gigabit Ethernet and FibreChannel
  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber
  • Available for single-strand fiber
  • Connectors: ST, SC or MT-RJ
  • Installs in any iMediaChassis or MediaChassis
  • Supports GUI-Based iView²
  • Includes diagnostic LEDs
  • Includes hot-swappable architecture


  • Dimensions 4.19”H x 0.78”W x 2.75”D (10.74 x 2 x 7.05 cm)
  • Shipping Weight 0.30 lbs (.11 kg)/li>


  • Operating Temperature: +32° to +122° F (0° to +50° C)
  • Storage Temperature: -13° to +158° F (-25° to +70° C)
  • Operating Humidity 5% to 95% (non-condensing), 0 – 10,000 ft. altitude/li>

Regulatory Approvals

  • FCC Class A
  • UL/cUL, CSA, CE
850-14520 iMcV-S2MM/155, SM1310/PLUS-ST + MM1300-ST
850-14530 iMcV-S2MM/155, SM1310/PLUS-SC + MM1300-SC
850-14532 iMcV-S2MM/155, SSFX-SM1310-SC (1310xmt/1550rcv) + MM1300-SC
850-14533 iMcV-S2MM/155, SSFX-SM1550-SC (1550xmt/1310rcv) + MM1300-SC
850-14535 iMcV-S2MM/155, SSFX-SM1310/PLUS-SC (1310xmt/1550rcv) + MM1300-SC
850-14536 iMcV-S2MM/155, SSFX-SM1550/PLUS-SC (1550xmt/1310rcv) + MM1300-SC
850-14540 iMcV-S2MM/155, SM1310/LONG-ST + MM1300-ST
850-14550 iMcV-S2MM/155, SM1310/LONG-SC + MM1300-SC
850-14555 iMcV-S2MM/155, SM1550/LONG-SC + MM1300-SC
850-14560 iMcV-S2MM/155, SM1310/PLUS-ST + MM850-ST
850-14570 iMcV-S2MM/155, SM1310/PLUS-SC + MM850-SC
850-14580 iMcV-S2MM/155, SM1310/LONG-ST + MM850-ST
850-14590 iMcV-S2MM/155, SM1310/LONG-SC + MM850-SC
850-14595 iMcV-S2MM/155, SM1550/LONG-SC + MM850-SC
859-14799 iMcV-S2MM/1250, LX-SM1310-SC + SX-MM850-SC
859-14800 iMcV-S2MM/1250, LX-SM1310/PLUS-SC + SX-MM850-SC
859-14801 iMcV-S2MM/1250, LX-SM1550/LONG-SC + SX-MM850-SC
859-14806 iMcV-S2MM/1250, SSLX-SM1310-SC (1310xmt/1550rcv) + SX-MM850-SC
859-14807 iMcV-S2MM/1250, SSLX-SM1550-SC (1550xmt/1310rcv) + SX-MM850-SC
859-14808 iMcV-S2MM/1250, SSLX-SM1310/PLUS-SC (1310xmt/1550rcv) + SX-MM850-SC
859-14809 iMcV-S2MM/1250, SSLX-SM1550/PLUS-SC (1550xmt/1310rcv) + SX-MM850-SC
