IMCV-S2SM Serie - Single- zu Single-Mode Glasfaser Moduskonverter

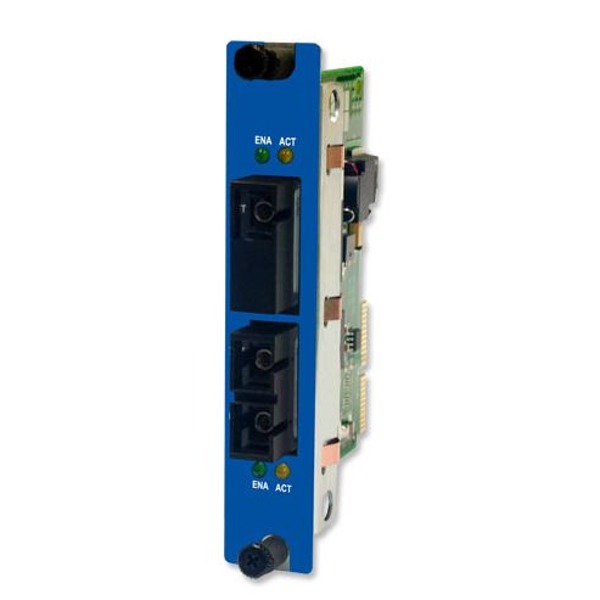

Der IMCV-S2SM von B+B SmartWorx ist ein Glasfaser Moduskonverter.
Der IMCV-S2SM von B+B SmartWorx ist ein Glasfaser Moduskonverter.
Die modularen Single- zu Single-Mode Moduskonverter der IMCV-S2SM Serie von B+B SmartWorx erreichen Datenraten bis zu 1.25 Gbps, Distanzen bis zu 80km und können in jedes iMediaChassis oder MediaChassis installiert werden.

zum Merkzettel hinzufügen

Datenblatt zusenden

IMCV-S2SM Series - Protocol-Independent, SNMP-Manageable Fiber Mode Conversion Modules

In today’s dynamic networks, changing requirements are a fact of life. The multi-mode fiber products and cabling which were the most cost effective and sound choice for your network yesterday may no longer give you the flexibility you require when adding remote offices today.Extend a single mode conversion to another single mode fiber segment, using an S2SM.

As an economical alternative to using a switch with single-mode fiber ports, simply install an fiber mode converter into your multi-mode fiber network. This enables you to easily connect to single-mode cabling and achieve distances up to 80 km. Our fiber mode converters also give you the flexibility to add single-mode fiber links only where needed. The

iMcV-S2SM fiber mode conversion modules includes:

  • Converts Single-Mode to Single-Sode fiber
  • Supports 10 Mbps Ethernet to 155 Mbps or 1.25 Gbps Gigabit Ethernet

Hot-swappable fiber mode conversion modules significantly reduce operation costs by allowing other modules within the same chassis to remain up and running during product upgrades, maintenance and troubleshooting.



  • Includes protocol-independent operation
  • Converts between dissimilar fiber modes and wavelengths: Single-Mode to Single-Mode
  • Ethernet, Fast Ethernet and ATM
  • OC-12, Gigabit Ethernet and FibreChannel
  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber
  • Available for single-strand fiber
  • Connectors: ST, SC or MT-RJ
  • Installs in any iMediaChassis or MediaChassis
  • Supports GUI-Based iView²
  • Includes diagnostic LEDs
  • Includes hot-swappable architecture


  • Dimensions 4.19”H x 0.78”W x 2.75”D (10.74 x 2 x 7.05 cm)
  • Shipping Weight 0.30 lbs (.11 kg)/li>


  • Operating Temperature: +32° to +122° F (0° to +50° C)
  • Storage Temperature: -13° to +158° F (-25° to +70° C)
  • Operating Humidity 5% to 95% (non-condensing), 0 – 10,000 ft. altitude/li>

Regulatory Approvals

  • FCC Class A
  • UL/cUL, CSA, CE
850-14505 iMcV-S2SM/155, SM1310/LONG-SC + SM1310/LONG-SC
850-14513 iMcV-S2SM/155, SM1550/LONG-SC + SM1310/PLUS-SC
850-14515 iMcV-S2SM/155, SSFX-SM1310-SC (1310xmt/1550rcv) + SM1310/PLUS-SC
850-14516 iMcV-S2SM/155, SSFX-SM1550-SC (1550xmt/1310rcv) + SM1310/PLUS-SC
850-14517 iMcV-S2SM/155, SSFX-SM1310/PLUS-SC (1310xmt/1550rcv) + SM1310/LONG-SC
850-14518 iMcV-S2SM/155, SSFX-SM1550/PLUS-SC (1550xmt/1310rcv) + SM1310/LONG-SC
859-14803 iMcV-S2SM/1250, LX-SM1310/PLUS-SC + LX-SM1310/PLUS-SC
859-14804 iMcV-S2SM/1250, LX-SM1310/PLUS-SC + LX-SM1550/LONG-SC
859-14820 iMcV-S2SM/1250, SSLX-SM1310-SC (1310xmt/1550rcv) + LX-SM1310/PLUS-SC
859-14821 iMcV-S2SM/1250, SSLX-SM1550-SC (1550xmt/1310rcv) + LX-SM1310/PLUS-SC
859-14822 iMcV-S2SM/1250, SSLX-SM1310/PLUS-SC (1310xmt/1550rcv) + LX-SM1310/PLUS-SC
859-14823 iMcV-S2SM/1250, SSLX-SM1550/PLUS-SC (1550xmt/1310rcv) + LX-SM1310/PLUS-SC
