3PCIOU Serie - Serielle PC Karte mit Universal PCI Schnittstelle

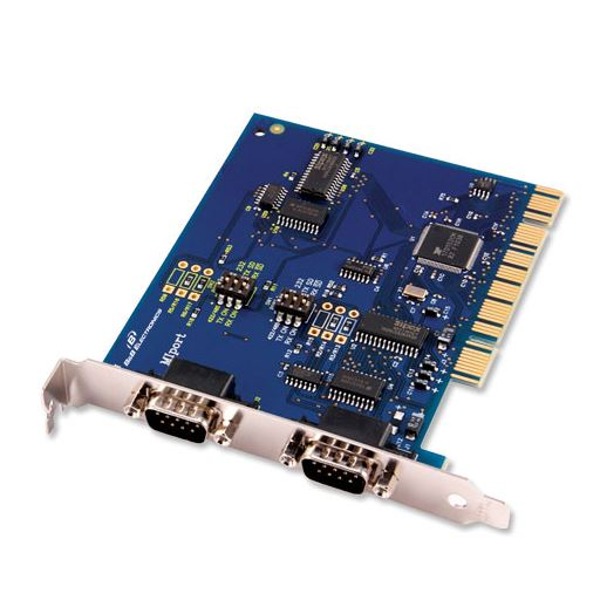

Der 3PCIOU von B+B SmartWorx ist eine Serielle PC-Karte.
Der 3PCIOU von B+B SmartWorx ist eine Serielle PC-Karte.
Die Seriellen PC-Karten der 3PCIOU Serie von B+B SmartWorx sind ausgestattet mit bis zu 2 seriellen RS-232/422/485 Ports, einer Universal PCI Schnittstelle und Datenraten bis zu 460.8 Kbps.

zum Merkzettel hinzufügen

Datenblatt zusenden


3PCIOU Series - MIPort Isolated Universal PCI Cards

Optically Isolated Versions offer true 2000VDC isolation and port-to-port isolation. Compare B&B universal PCI
cards to others – B&B’s premium Optical Isolation Zone along with optocouplers and our unique isolated DC-DC converter design protect your PCs from voltage surges and ground loops.

DB9M connectors offer positive thumbscrew locking, more robust than phone jack connectors. Four and eight port models include fanout cables. Four port isolated model 3PCIOU4 has two RS-232/422/485 ports and 2 RS-422/485 ports. All PCI serial card models support baud rates up to 460.8 kbps. Windows XP, Windows 2008 Server (32/64 Bit), Windows Vista (32/64 Bit), Windows 7 (32/64 Bit), Linux Kernel 2.6.x in the following distributions: Ubuntu 10.04 Desktop Edition (32/64 Bit) and Ubuntu 10.04 Server Edition (32/64 Bit) supported.




Specifications

  • Available in 1, 2 or 4 ports
  • Optically isolated models
  • Multi-Interface: RS-232/422/485 selectable
  • 5V and 3.3V PCI bus compatible
  • PCI-X compatible
  • Positive-connecting DB9M ports
Modelle
3PCIOU1 1 Port Optically Isolated MIPort Universal PCI Card
3PCIOU2 2 Port Optically Isolated MIPort Universal PCI Card
