232XSS Serie - Serieller Datenswitch

Der 232XSS von B+B SmartWorx ist ein serieller Daten Switch.
Der 232XSS von B+B SmartWorx ist ein serieller Daten Switch.
Die Seriellen Datenswitches der 232XSS Serie von B+B SmartWorx sind ausgestattet mit 4 RS-232 DB9 Ports, einem RS-232 DB25 Port, Datenraten bis zu 115.2 kbps und 8 KB Übertragungsbuffer.

zum Merkzettel hinzufügen

232XSS Series - Serial RS-232 Data Switches

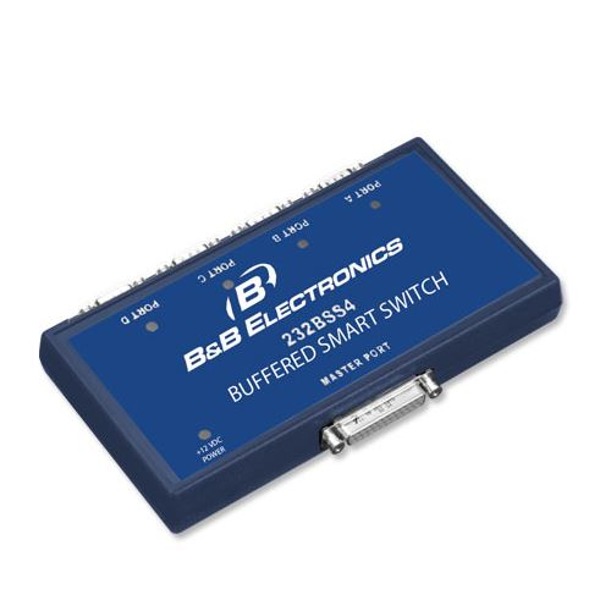

Model 232BSS4, our most versatile and intelligent smart serial data switch. A single RS-232 port on your PC can now communicate seamlessly with four or more RS-232 devices.

Once configured, simply run your existing application software to converse with each device as if it was directly wired to your PC.

When used with B&B Electronics RS-485 or fiber optic converters, the Model 232BSS4 smart serial data switch may be connected to PCs or serial devices miles away. Requires 12 VDC power. Model 232PS is recommended.

  • Free set-up software included for XP, 2000
  • User friendly graphic interface
  • Configure each port individually from your PC
  • 8 KB buffer on each port ensures no lost data
  • Connectors: master DB25 female, slaves DB9 male
  • Mix and match baud rates

Model 232MSS2 is a compact four port mini RS-232 switch box. Its master port may be configured as either a DTE or DCE port. If the master port is DTE, the four other ports automatically become DCE ports. This model offers enhanced features that automatically control transmit/ receive functions, stop inadvertent switching from binary/graphic file transfers and inactive slave devices from holding control of the master port.

  • 4 RS-232 DB9 female slave ports
  • Automatic transmit and receive control
  • Supports 1200 to 115.2 kbps
  • Requires 12 VDC power supply, Model 232PS recommended

Model 485DSS is a distributed smart switch. Use this model when your RS-232 devices are scattered. The Model 485DSS uses RS-485 technology to reach RS-232 peripherals up to 4,000 feet away. Each serial data switch has a unique address. A simple serial command from your host turns communications on or off or requests status. QuickBasic demo software is included.

  • Attach a unit to each “dumb” RS-232 device to make it a network node
  • Network up to 32 RS-232 devices up to 4,000 feet away
  • Requires 12 VDC power supply, Model 485PS2 recommended
232BSS4 Serial RS-232 Buffered Smart Switch
232MSS2 Serial Mini Smart Switch
