Vlinx ESP900 Serie - Serieller Geräteserver

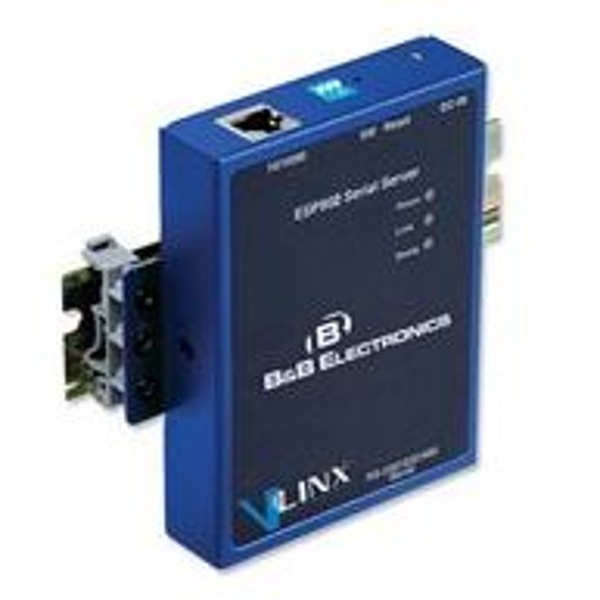

Der Vlinx ESP900 von B+B SmartWorx ist ein serieller Geräteserver.
Der Vlinx ESP900 von B+B SmartWorx ist ein serieller Geräteserver.
Die Geräteserver der Vlinx ESP900 Serie von B+B SmartWorx sind ausgestattet mit bis zu 4 seriellen RS-232/422/485 Ports (DB9 Male) und einem Ethernet Port (RJ-45).

zum Merkzettel hinzufügen


Vlinx ESP900 Series - Serial Ethernet Servers

The Vlinx™ family of Serial Ethernet Servers transparently connects, configures, and communicates with serial devices over Ethernet using a single IP address. Available in 1, 2 and 4 port versions. Each model uses DB9 male serial connectors and supports RS-232, RS-422 and RS-485. Desktop, panel and DIN-mountable — Vlinx offers outstanding flexibility and value for industrial and commercial applications.

Buy and compare our Serial Ethernet Servers below. Click on the model number to view a photo and see the Details, Specs, Downloads, and Application tabs for further information.

Serial Ethernet Server Operation Modes

  • Virtual COM port
  • TCP/IP socket and tunneling
  • UDP/IP communications

Heartbeat ensures reliable communications

In case of a power failure or loss of the Ethernet connection, the Vlinx Serial Server automatically reconnects the TCP data connection.

Intuitive management software

Vlinx software allows simple access to the Serial Server menu settings. Telnet and Console mode may also be used to configure the server.

Once Vlinx is connected to the LAN, just open the B&B management software and it will instantly search the LAN and display the Serial Ethernet Servers found.

Specifications

  • Auto-detecting 10/100 Mbps Ethernet
  • Ports are software selectable for RS-232, 422 or 485
  • Enhanced temperature range: -10° to 80° C
  • Low latency/high throughput
  • Supports modem applications
  • Supports TCP Server, TCP Client, UDP, and virtual COM modes
  • Supports web and telnet consoles
  • LAN connections: 10/100 Mbps, RJ45: Serial: DB9 male
  • Power input: 12 VDC power jack (power supply included)
  • Dimensions: ESP901, ESP902: 3.4 x 4.5 x .9 in (8.5 x 11.5 x 2.3)
        ESP904: 7.3 x 4.2 x 1.1 in (18.4 x 11.1 x 2.9 cm)
  • DIN rail and panel mount options
Modelle
ESP9011 Port Ethernet Serial Server
ESP9022 Port Ethernet Serial Server
ESP9044 Port Ethernet Serial Server
ESP906CL ESP906CL
