IE-MiniFiberLinX-II/Telco Serie - Optische Demarcation Einheiten mit Management

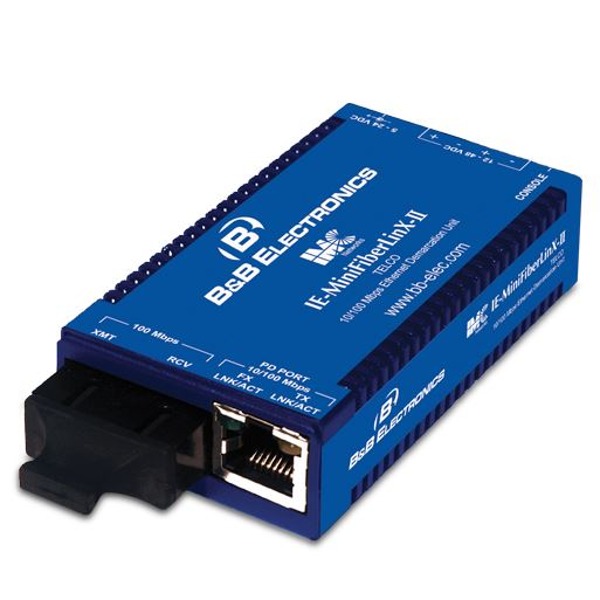

Der IE-MiniFiberLinX-II-Telco von B+B SmartWorx ist ein Demarcation Device.
Der IE-MiniFiberLinX-II-Telco von B+B SmartWorx ist ein Demarcation Device.
Die optschien Demarcation Devices der IE-MiniFiberLinX-II/Telco Serie von B+B SmartWorx sind ausgestattet mit SNMP Management, AC/DC Stromversorgung, Bi-Direktionaler Bandbreitenkontrolle und unterstütz passives 802.3ah OAM (Operation, Administration & Management).

zum Merkzettel hinzufügen

Datenblatt zusenden


IE-MiniFiberLinX-II/Telco Series - 10/100 Mbps Managed optical Demarcation Compact CPE Device

The compact IE-MiniFiberLinX-II/Telco is one of the most versatile fiber optic NID devices available on the market today. It provides pointto- point fiber optic connections with a unique management tool to monitor the entire link between two locations. IE-MiniFiberLinX-II/Telco was designed to work with -48 VDC power that is compliant with the Bellcore GR-499 specification, supporting the minimum and maximum transient voltages, typically required by transport equipment used in Telco environments. Other key features include; carrier grade remote SNMP management, extra tagging using Q-in-Q, and PoE (Power over Ethernet).

As a copper-to-fiber converter, the IE-MiniFiberLinX-II/Telco supports multiple fiber types including multimode, single-mode, single-strand fiber (SSF), and Course Wavelength Division Multiplexing (CWDM) functionality to increase the capacity of existing fiber. As a remote, CPE device, it can be connected via the fiber segment to an iMcV-FiberLinXII Host module to support Host/Remote management.

Equipped with one 100 Mbps fiber data port, one 10/100 twisted pair port for data and management, as well as an auxiliary port designed to function as a serial port (when used with the included adapter), the IEMiniFiberLinX- II/Telco also offers multiple powering options: AC power (with included adapter), DC (through a 4-terminal power block).

Spezifikationen

  • Preserves complete end-to-end fiber connection integrity
  • Bi-directional bandwidth control (per port, per direction, per VLAN)
  • Read/write IEEE 802.1Q VLAN-tags
  • Extra Tagging with Q-in-Q mode (802.1p)
  • Supports passive 802.3ah OAM (Operation, Administration & Management)
  • QoS: IEEE 802.1p-based packet prioritization (2 queues [high/low] with 8 levels of priority)
  • VLAN filtering up to 32 values
  • Layer 2 packet switching, store and forward operation
  • Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps
  • AutoCross for MDI/MDIX
  • Features Auto Negotiation and Selective Advertising
  • Supports Half and Full-Duplex operation
  • MTU: Supports over-sized packets up to 1916 bytes per packet

Sicherheit

  • Password Control
  • Multiple Access Levels: User Assigned Accounts & Access Levels

Management

  • SNMP V1 and V2c compatible
  • Includes GUI-based iView² software for remote management and upgrades
  • Monitors far-end (remote) status without a physical presence or separate connection
  • IEEE 802.3x Flow Control
  • Includes DHCP and TFTP clients
  • Supports Telnet
  • Includes loopback test modes (MAC swap)
  • Includes LinkLoss and FiberAlert
  • Remote capabilities with built-in support for UMA (IP-less management)
  • RS-232 (Craft) interface for local management
  • Serial cable for direct connection to a PC’s Serial Port

Unterstützte Ethernet Protokolle

  • EEE 802.3i 10Base-T twisted pair
  • IEEE 802.3u 100Base-TX twisted pair
  • IEEE 802.3u 100Base-FX or SX fiber

Mechanische

  • Dimensions 0.83”H x 1.80”W x 3.35”D (2.11 x 4.57 x 8.51 cm)

Strom

  • AC Wall Adapter: 100 to 240 VAC ±10% input, 5 VDC output, 2A max.
  • DC Input Voltage: 12 to 48 VDC *, 1 to .02A, 7 to 50 VDC, 1 to 0.1A

Umgebung

  • Operating Temperature
    +14° to +122° F (-10° to +50° C) AC Adapter
    -13° to +167° F (-25° to +75° C) DC Adapter
    -49° to +185° F (-45° to +85° C) DC Telco
  • Storage Temperature -49° to +185° F (-45° to +85° C)
  • Operating Humidity 5 to 95% Non-condensing

Zertifikate

  • FCC Class A
  • UL/cUL, CE, CSA, CB
Modelle
856-17620 IE-MINIFIBERLINX-II/TELCO TP-TX/FX-MM850-ST
856-17621 IE-MiniFiberLinX-II/Telco,TP-TX/FX-MM850-SC
856-17622 IE-MiniFiberLinX-II/Telco,TP-TX/FX-MM1300-ST
856-17623 IE-MiniFiberLinX-II/Telco,TP-TX/FX-MM1300-SC
856-17626 IE-MiniFiberLinX-II/Telco,TP-TX/FX-SM1310/PLUS-ST
856-17627 IE-MINIFIBERLINX-II/TELCO, TP-TX/FX-SM1310/PLUS-SC
856-17628 IE-MiniFiberLinX-II/Telco,TP-TX/FX-SM1310/LONG-ST
856-17629 IE-MiniFiberLinX-II/Telco,TP-TX/FX-SM1310/LONG-SC
856-17631 IE-MiniFiberLinX-II/Telco,TP-TX/FX-SM1550/LONG-SC
856-17632 IE-MiniFiberLinX-II,TP-TX/FX-SM1550/XLONG-SC
