EXT-DVI-1CAT5-ELR - DVI Extender über Kat. 5 auf 150m

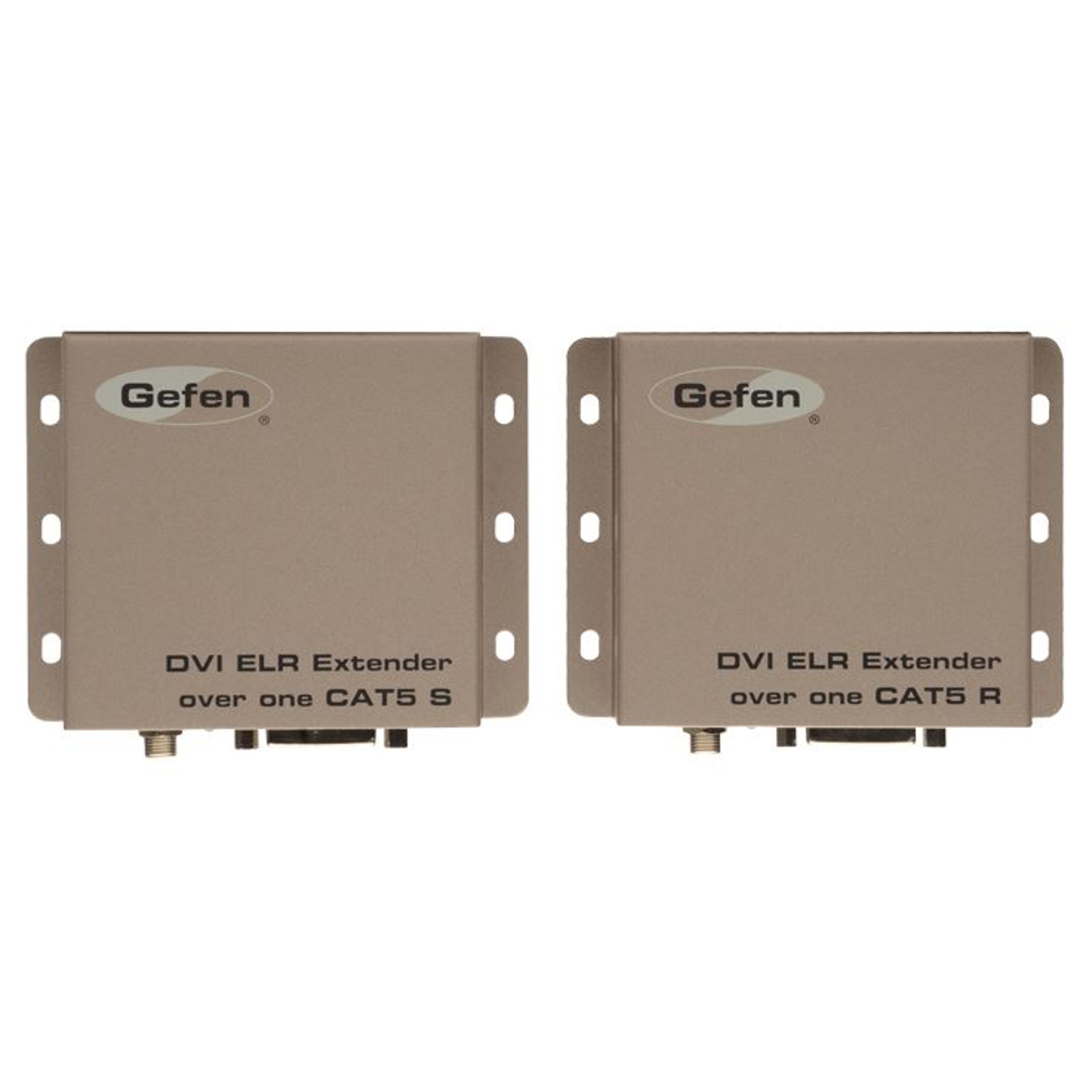

EXT-DVI-1CAT5-ELR DVI Extender auf 150m über ein einziges Kat. 5 Kabel von Gefen.
EXT-DVI-1CAT5-ELR DVI Extender auf 150m über ein einziges Kat. 5 Kabel von Gefen.
EXT-DVI-1CAT5-ELR DVI Extender auf 150m über ein einziges Kat. 5 Kabel von Gefen.
DVI Anschlüsse des EXT-DVI-1CAT5-ELR DVI Extenders über Kat. 5 von Gefen.
RJ-45 Anschlüsse des EXT-DVI-1CAT5-ELR DVI Extenders auf 150m von Gefen.
Diagramm zur Anwendung des EXT-DVI-1CAT5-ELR DVI Extenders von Gefen.
EXT-DVI-1CAT5-ELR von Gefen ist ein Extra Long Range DVI Extender über ein einziges Kat. 5e Kabel auf Entfernungen bis 150m (495ft.). Er unterstützt Auflösungen bis 1080p FullHD oder 1920x1200 und hat ein integriertes EDID Management.

zum Merkzettel hinzufügen


EXT-DVI-1CAT5-ELR Extra Long Range DVI Extender auf 150m

The DVI ELR Extender over one CAT5 allows the extension of a DVI source to a display, up to 495 feet (150 meters), using a single CAT-5e cable. This product is capable of HDCP and HPD pass-through. It can also be configured by the installer via DIP switches for maximum range or maximum bandwidth, and for low power consumption (auto sleep mode) or always-on operation. The DVI Extender over one CAT5 uses Gefen's ELR implementation of HDBaseT™ technology, allowing the DVI signal to travel along a single CAT-5e or better cable, reducing cable costs and facilitating installation.

Use the included DVI cable to connect the computer or other DVI source to the Sender unit. Connect the Receiver unit to a Hi-Def display with a DVI cable. Use up to 495 feet (150m) of CAT-5e cable to connect the Sender to the Receiver unit. Configure DIP switches as necessary. Connect the included locking power supplies to the Sender and the Receiver units and plug the power supplies to available electrical outlets. Power on all connected equipment.

Technische Spezifikationen

  • Maximum Pixel Clock: 165 MHz
  • Video Input Connector (Sender): (1) DVI-I, 29-pin, female (digital only)
  • Video Output Connector (Receiver): (1) DVI-I, 29-pin, female (digital only)
  • Link Connector (Sender / Receiver): (1) RJ-45
  • Internal/External EDID Selector (Sender): (1) DIP switch
  • HPD Pass-Through Selector (Sender): (1) DIP switch
  • Power-Save Selector (Sender/Receiver): (1) DIP switch
  • 150m/100m Range Selector (Sender/Receiver): (1) DIP switch
  • Link Indicator (Sender/Receiver): (1) LED, green
  • Power Supply (Sender/Receiver): 5V DC
  • Power Consumption (Sender/Receiver): 10 W per unit maximum
  • Operating Temperature: 0 to +45°C
  • Operating Humidity: 0 to 90% RH, non-condensing
  • Dimensions (W x H x D): 4.3" x 1" x 3.4" (110mm x 26mm x 86mm)
  • Shipping Weight: 3 lbs (1.4 kg)

Diagramm

ext-dvi-1cat5-elr-gefen-dvi-extra-long-range-extender-kat-5-150m-diagramm

Details zum EXT-DVI-1CAT5-ELR DVI Extender

  • Extends DVI up to 495 feet (150 meters) over one CAT-5e cable
  • Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)
  • EDID management for rapid integration of source and display
  • Enable/Disable switches for HPD pass-through
  • Power-Save (Green Mode) selector switch
  • 150m/100m range selector switch configures the extender for maximum range (150 meters) or maximum bandwidth
  • Locking power supplies
  • Surface-mountable
