Giga-MiniMc LFPT Serie - Gigabit Switching Medienkonverter

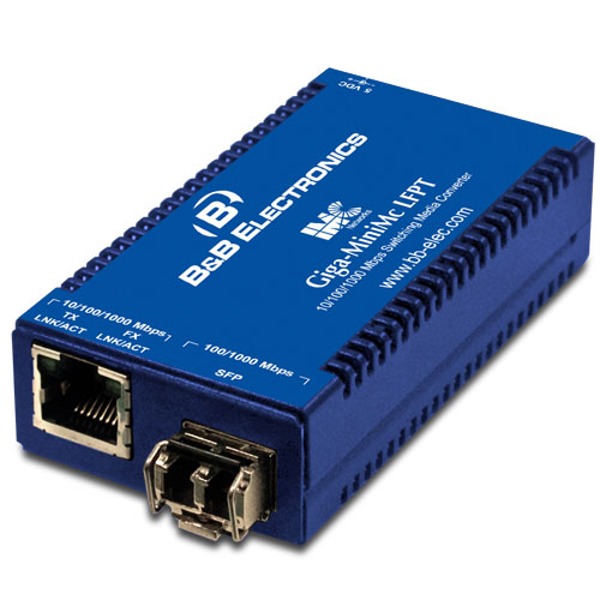

Der Giga-MiniMc-SFT-LPTF von B+B SmartWorx ist ein Medienkonverter.
Der Giga-MiniMc-SFT-LPTF von B+B SmartWorx ist ein Medienkonverter.
Die Ethernet zu Glasfaser Konverter der Giga-MiniMc LFPT Serie von B+B SmartWorx sind ausgestattet mit einem 10/100/1000 Mbps Twisted-Pair Port, einem 1000Base-SX oder SFP Fiber Port und Link Fault Pass Through (LFPT).

zum Merkzettel hinzufügen

Datenblatt zusenden

Giga-MiniMc LFPT Series - Smallest, Most Reliable Gigabit Switching Media Converter

Media conversion is the most cost-effective solution for extending the productive life of legacy wiring plants and equipment while allowing implementation of new technologies. Media conversion’s greatest benefits are flexibility and cost savings.
Measuring less than 3.5 inches deep and 2 inches wide, and having both data connections on the same side of the unit—the Giga- MiniMc- LFPT is the industry’s smallest media converter at a fraction of the cost of other alternatives. Link Fault Pass Through (LFPT) is permanently enabled on the unit, and is a useful diagnostic feature that assists the network administrator in indicating a fault condition on a given segment between the interfaces. Plug-and-play operation with a variety of model types and powering options make the Giga-MiniMc LFPT easy and convenient to use.

Details zum Giga-MiniMc LFPT Medienkonverter


  • Plug-and-play operation
  • RJ45 and SC or SFP connectors
  • IEEE 802.3 10Base-T twisted pair
  • IEEE 802.3u 100Base-TX twisted pair
  • IEEE 802.3ab 1000Base-T twisted pair
  • IEEE 802.3z 1000Base-LX or SX fiber
  • MTU: Supports Jumbo Frames up to 10240 bytes
  • Country-specific, high-reliability power adapter
  • Auto-Cross for MDI/MDIX
  • Layer 2 packet switching, store and forward (forwarding rate: 1,488,096 pps for 1000 Mbps)
  • Status LEDs


  • Dimensions 0.83”H x 1.80”W x 3.35”D (2.11 x 4.57 x 8.51 cm)
  • Shipping Weight 0.7 lbs (.317 kg)


  • 5 VDC, 600mA
  • 120 VAC, 0.1A


  • Operating Temperature: +32° F to +122° F (0° C to +50° C)
  • Storage Temperature: -31° F to +167° F (-35° C to +75° C)
  • Operating Humidity 5% to 95% (non-condensing)

Regulatory Approvals

  • FCC Class A
  • UL/cUL, CSA, CE
856-11700 Giga-MiniMc/LFPT, TX/SFP (requires one fiber SFP Module, sold separately)
856-11701 Giga-MiniMc/LFPT, TX/SX-MM850-SC
856-11703 Giga-MinMc/LFPT, TX/LX-SM1310-SC
