IE-Giga-MiniMc LFPT - Industrieller Miniatur Medienkonverter

Der IE-Giga-MiniMc LFPT von B+B SmartWorx ist ein Medienkonverter.
Der IE-Giga-MiniMc LFPT von B+B SmartWorx ist ein Medienkonverter.
Der IE-Giga-MiniMc LFPT von B+B SmartWorx ist ein Ethernet zu Glasfaser Konverter mit einem 10/100/1000 Mbps Ethernet Port, einem 1000 Mbps Glasfaser Port, optionalem Dual-USB Stromkabel und Link Fault Pass Through (LFPT).

zum Merkzettel hinzufügen

Datenblatt zusenden

IE-Giga-MiniMc LFPT - Industrial Grade 10/100/1000 Miniature Media Converter

Media conversion is the most cost-effective and flexible solution for implementing new technologies on legacy wiring plants and equipment. But even reasonably-priced media converters can tack on a substantial sum to networking costs. And space constraints can also be an issue when hundreds of conversions are required.

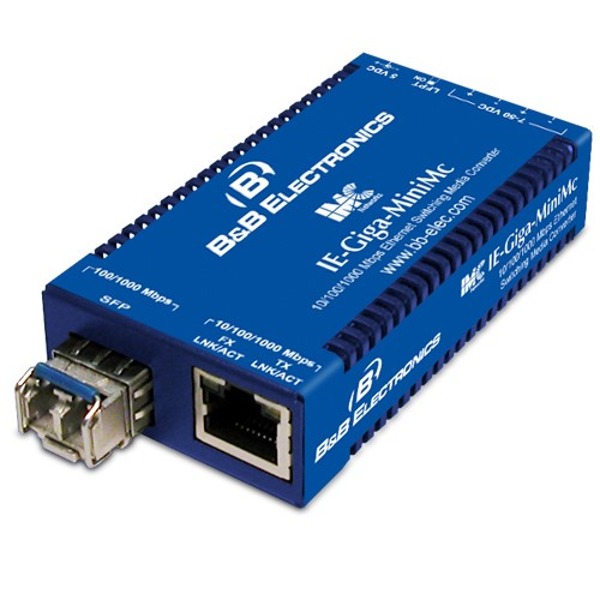

Measuring less than 3.5 inches deep and 2 inches wide, and having both data connections on the same side of the unit—the IE-Giga- MiniMc-LFPT is the industry’s smallest media converter at a fraction of the cost of other alternatives. Link Fault Pass Through (LFPT) can be enabled/disabled via a DIP Switch on the unit, and is a useful diagnostic feature that assists the network administrator in indicating a fault condition on a given segment between the interfaces.

With Plug-and-Play, Auto Negotiation and AutoCross operation, extreme operating temperatures (-25° to +85° C), DC or AC power, the IE-Giga- MiniMc-LFPT miniature media converter is easy and convenient to use.

SFP port supports 100 Mbps or 1000 Mbps SFPs (fiber). This allows the customer to utilize the product for a Fast Ethernet circuit and later upgrade to Gigabit.



  • IEEE 802.3 10Base-T twisted pair
  • IEEE 802.3u 100Base-TX twisted pair
  • IEEE 802.3ab 1000Base-T twisted pair
  • IEEE 802.3z 1000Base-LX or SX fiber
  • MTU: Supports Jumbo Frames up to 10240 bytes
  • Extended temperature range (DC configuration)
  • Plug-and-play operation
  • RJ45, SC and SFP connectors
  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber Single-strand fiber and CWDM models
  • 4-terminal DC power with a pair of input terminals and a pair of output terminals for cascading power on DIN installations
  • Country-specific, high-reliability power adapter
  • Auto Negotiation, Auto-Cross for MDI/MDIX
  • Layer 2 packet switching, store and forward (forwarding rate: 14,881 pps for 10 Mbps, 148,810 pps for 100 Mbps, 1,488,096 pps for 1000 Mbps)
  • Status LEDs
  • Supports DIN Rail mounting


  • Dimensions 0.83”H x 1.80”W x 3.35”D (2.11 x 4.57 x 8.51 cm)
  • Shipping Weight 0.7 lbs (.317 kg)


  • AC Adapter 100 to 240 ±10% VAC input, 5 VDC @ 2.0 A max
  • DC Input Voltage 7 to 50 VDC @ 2.5 watts, Chassis grounded to negative terminal
  • 5 VDC, 600mA


  • Operating Temperature: DC terminal block -13°F to +185°F (-25°C to +85°C)
  • Operating Temperature: AC Adapter +14°F to +122°F (-10°C to +50°C)
  • Storage Temperature: -31° F to +167° F (-35° C to +75° C)
  • Operating Humidity 5% to 95% (non-condensing)


  • FCC Class B
  • UL/cUL, CSA, CE
856-18929 IE-Giga-MiniMc LFPT, SFP
