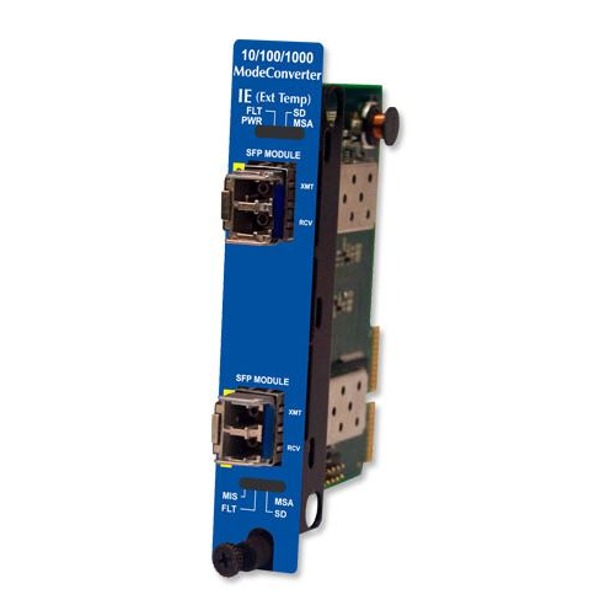

IE-IMCV-ModeConverter - Modularer Glasfaser Moduskonverter

Der IE-IMCV-ModeConverter von B+B SmartWorx ist ein Glasfaser Moduskonverter.
Der IE-IMCV-ModeConverter von B+B SmartWorx ist ein Glasfaser Moduskonverter.

Die modularen Glasfaser Moduskonverter der IE-IMCV-ModeConverter Serie von B+B SmartWorx sind ausgestattet mit SFP Modulslots, Hot-Swap Funktion und Single- oder Multi-Mode Glasfaser.

zum Merkzettel hinzufügen


IE-IMCV-ModeConverter - Modular Protocol-Independent, Fiber Mode Converter Via SFP Modules

The IE-iMcV-ModeConverter is an SNMP manageable module that allows network operators to incorporate multiple fiber types and wavelengths within a network. It installs in the modular, SNMPmanageable iMediaChassis series and in the unmanaged MediaChassis series.

The IE-iMcV-ModeConverters are protocol-independent with dual SFP ports which can provide a single conversion between different wavelengths or single-mode and multimode fiber, single-mode to single-mode fiber or multimode to single-strand single-mode fiber. The IE-iMcVModeConverter modules support a variety of user configurable features such as LinkLoss forcing a gigabit SFP to 100Mbps. Additionally, since the IE-iMcV-ModeConverter is an Industrial Equipment (IE) device, the unit operates in environments that demand extended operating temperatures.

The IE-iMcV-ModeConverter uses MSA Compliant SFP modules to provide greater fiber flexibility in the network environment. The hotswappable nature of SFPs and the numerous fiber modes and types that are available allow for easy configuration and future upgrading as network demands evolve.

Spezifikationen

Technische

  • Includes two SFP ports
  • Protocol-independent operation
  • Converts between dissimilar fiber modes and wavelengths
  • Includes diagnostic LEDs
  • Hot-swappable architecture
  • Modular Form Factor
  • Extended temperature range from -40° to +85° C
  • Compatible with IMC Networks’ SFPs and all standard MSA compliant SFP devices

Standards

  • SFP-MSA SFP standard (September 14, 2000)
  • SFF-8472 DDMI standard (Revision 1.0)

Mechanische

  • Dimensions 4.19” x 0.78” x 2.75” (10.6 cm x 1.98 cm x 6.99 cm)
  • Shipping Weight 0.25 lbs (0.11 kg)

Strom

  • 422mA with SFP ports populated (Typical @ 5V)

Umgebung

  • Operating Temperature: -40° to +185° F (-40° to +85° C)
  • Storage Temperature: -40° to +185° F (-40° to +85° C)
  • Operating Humidity 5% to 95% (non-condensing), 0 – 10,000 ft. altitude

Zertifikate

  • FCC Class A
  • UL/cUL, CE
Modelle
850-19500 IE-iMcV-ModeConverter, SFP/SFP (requires two SFP/155/1250/2400 Modules, sold separately)
