Elinx EIRP600 Serie - Managed PoE Gigabit Ethernet Switches

Elinx EIRP600 Serie B+B SmartWorx Managed PoE Gigabit Ethernet Switches
Elinx EIRP600 Serie B+B SmartWorx Managed PoE Gigabit Ethernet Switches
Die Elinx EIRP600 Serie ist eine Managed PoE Gigabit Ethernet Switch Serie mit 10 Ports

zum Merkzettel hinzufügen

Datenblatt zusenden


Elinx EIRP600 Serie - Managed PoE Gigabit Ethernet Switch Series

Power over Ethernet (PoE) means that power is transmitted over the Ethernet cable along with the data lines. Each PoE switch has a set of ports that is classified as power source equipment (PSE). Since the ports can power IEEE 802.3af compliant powered devices (PD), the need for a separate power line to be run to each end device is eliminated.

Details

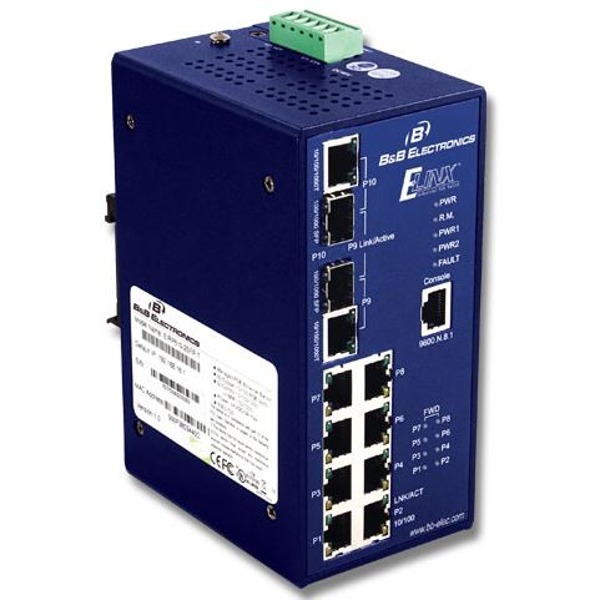

The EIRP610-2SFP-T is a 10 Port Managed Industrial PoE Gigabit Ethernet Switch. In addition to 8 PoE copper RJ-45 ports, it has 2 RJ-45/SFP Combo ports to accommodate Gigabit Ethernet.
Small Form-factor Pluggable (SFP) Port:
The SFP Ports provide flexibility when planning a network. Modules are available in multiple fiber formats. If an SFP module is not inserted, the associated combo port can be used with standard RJ-45 copper.

High-Speed Transmissions

The switch includes a switch controller that automatically senses transmission speed (10/100/1000 Mbps). The RJ-45 interface also auto-detects MDI or MDI-X, eliminating the requirement for a crossover cable. Each port is buffered and supports store-and-forward protocol.

Power Over Ethernet (PoE)

The eight 10/100 ports are classified as power sourcing equipment (PSE). These ports can be used to power IEEE 802.3af compliant powered devices (PD), eliminating the need for a separate power supply for each device.

Dual Power Input

To reduce the risk of power failure, the switch has two 48 VDC power inputs.

Gigabit Speeds (SFP models) . . . . . . . . . . . .Higher throughput for high bandwidth networks
Rugged IP30 DIN/Panel Mount Metal Case . . . . .Built tough for harsh industrial environments
Dual Power Inputs with Alarm Output . . . . . . . . .Redundancy ensures the network keeps running
Wide Temperature Rating on –T models . . . . . . . .Suited for extreme temperature environments
Class 1 Div 2 . . . . . . . . .Designed for hazardous locations

Modelle
EIRP610-2SFP-TEthernet Managed, 8-Port 10/100BaseTX PoE, (2)-Port 10/100/1000BaseTX, (2)-Port 100/1000 SFP Slot, Wide Temperature
