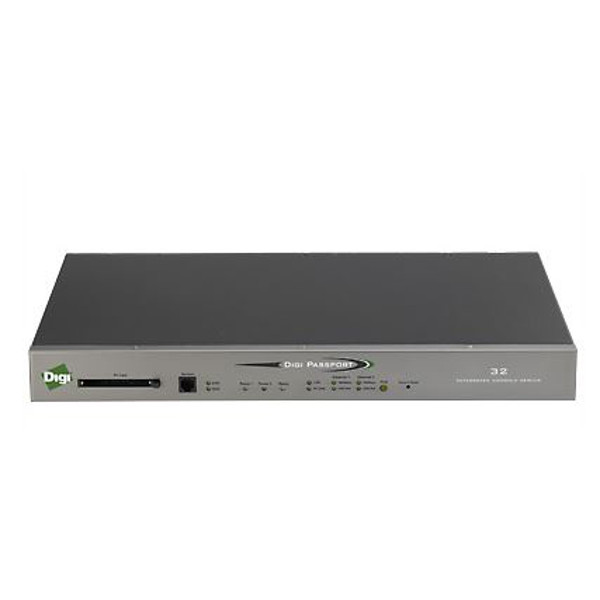

Digi Passport - Sicherer und zuverlässiger Konsolenserver

Digi Passport von Digi ist ein Konsolenserver.
Digi Passport von Digi ist ein Konsolenserver.

Die zuverlässigen Konsolenserver der Digi Passport Serie sind ausgestattet mit Secure Data Center Server Management, Server Technologie und APC PDU Kompatibilität für Remote Power Management und sind ein Ideales Tool für System Administratoren.

zum Merkzettel hinzufügen


Digi Passport - Secure, Reliable In- And Out-Of-Band Console Management

Digi Passport® console servers provide secure remote graphical access to computer systems and network equipment. Capable of communicating with virtually any server or device, Digi Passport is the ideal sys admin tool for cross-platform equipment support in data centers. It supports serial console connections, service processor connections to the leading server vendors, plus SMASH extensions to network-based access protocols, and is compatible with power distribution units (PDUs) from Server Technology, APC and other vendors. Digi Passport is available with 4, 8, 16, 32 or 48 serial ports (RJ-45), including FIPS 140-2 Level 2 certified models.

The Digi Passport, used in conjunction with the Digi Remote Power Manager, offers comprehensive in- and out-of-band infrastructure management. Users can remotely power on/off connected devices, reboot servers, and receive notifications of changes in power usage, temperature readings, system reboots and more.

Features
AuthenticationRADIUS, TACACS+, Secure LDAP, Active Directory and Kerberos
SecuritySSH server/client; SSL; IP filtering; Data capture via port buffering and logging (syslog-ng and NFSv3)
ManagementCommand Line; Web (HTTP/HTTPS); SNMPv3; PPP; RIP; Multi-level menuing; Port triggers, alerts and SNMP traps
Operating SystemsEmbedded Linux (Linux Kernel 2.6.12 Distribution)
Programming LanguagePerl scripting for advanced log searching and alerting
ConnectionsStraight-through CAT5 cables for serial and Ethernet connections
Port AccessHTTPS/HTTP, SSH/Telnet to a customizable menu; SSH/Telnet directly to the port by name, port specific socket or specified IP number per port; Multiple users per port; Simultaneous SSH sessions on all ports
Supported PC CardsPCMCIA/CF memory cards, Wireless LAN adapter (802.11b), Ethernet LAN adapter, PSTN/CDMA modem card
Supported Remote Power Management ControllersDigi Remote Power Manager, BayTech, Server Technology
Supported Service ProcessorALOM, DRAC, iLO, ILOM, IPMI v2.0, Phantom/Roamer, (SMASH extensions supported)
Interfaces
Console Ports1 RJ-45 RS-232
Ethernet Ports2 RJ-45 10/100Base-T
USB Ports1 USB 2.0
Power Requirements
Power Supply MTBF11 years
Environmental
Operating Temperature0º C to 50º C (32º F to 122º F)
Storage Temperature-30º C to +60º C (-20º F to +140º F)
Regulatory Approvals
SafetyUL 1950, EN60950
Emissions/ImmunityCE, FCC Part 15 (Class A), EN55024, EN55022 (Class A)
RoHS CompliantYes
Digi Passport 4
Rack Mount-
Dimensions (L x W x H)8.00 in x 6.20 in x 1.10 in (20.30 cm x 15.50 cm x 2.90 cm)
Weight2.06 lb (0.94 kg)
Serial Ports4 RJ-45 RS-232
PC Card Slot-
Power SupplyExternal 5V, 4A adapter
Digi Passport 8
Rack Mount19” rack mount kit included
Dimensions (L x W x H)17.50 in x 8.00 in x 1.80 in (44.30 cm x 20.30 cm x 4.40 cm)
Weight5.19 lb (2.28 kg)
Serial Ports8 RJ-45 RS-232
PC Card SlotOne 16-bit PCMCIA
Power SupplyInternal 100-240VAC, 50/60 Hz, 0.37A max, 15W (power output side)
Digi Passport 16/32/48
Rack Mount19” rack mount kit included
Dimensions (L x W x H)17.50 in x 10.00 in x 1.80 in (44.30 cm x 25.30 cm x 4.40 cm)
Weight16-port: 6.09 lb (2.78 kg) 32-port: 6.23 lb (2.85 kg) 48-port: 6.48 lb (2.96 kg) Dual power models: add 0.20 lb
Serial Ports16, 32 or 48 RJ-45 RS-232
PC Card SlotOne 16-bit PCMCIA
Power SupplyInternal 100-240VAC, 50/60 Hz, 0.37A max, 15W (power output side)
Digi Passport 4
70002257Digi Passport 4
70002267Digi Passport 4 with Modem
Digi Passport 8
70002259Digi Passport 8
70002269Digi Passport 8 with Modem
Digi Passport 16
70002261Digi Passport 16
70002271Digi Passport 16 with Modem
70002277Digi Passport 16 Dual AC Power
70002283Digi Passport 16 Dual AC Power with Modem
Digi Passport 32
70002263Digi Passport 32
70002273Digi Passport 32 with Modem
70002279Digi Passport 32 Dual AC Power
70002288Digi Passport 32 DC Power
70002285Digi Passport 32 Dual AC with Modem
Digi Passport 48
70002265Digi Passport 48
70002275Digi Passport 48 with Modem
70002281Digi Passport 48 Dual AC Power
70002287Digi Passport 48 Dual AC Power with Modem
