IE-IMCV-2XLIM - Managed Dual Port Ethernet Konverter

Der IE-IMCV-2CLIM von B+B SmartWorx ist ein Managed Mediekonverter.
Der IE-IMCV-2CLIM von B+B SmartWorx ist ein Managed Mediekonverter.
Der IE-IMCV-2XLIM von B+B SmartWorx ist ein Medienkonverter mit SNMP Management, Datenraten bis zu 100 Mbps, SFP Ports, 2x LIM Module, Hot-Swap Funktion und Link Fault Pass-Through (LFPT).

zum Merkzettel hinzufügen


IE-IMCV-2XLIM - Dual Port, Extended Temperature (IE), 100 Mbps Ethernet SNMP-Manageable Media Converter

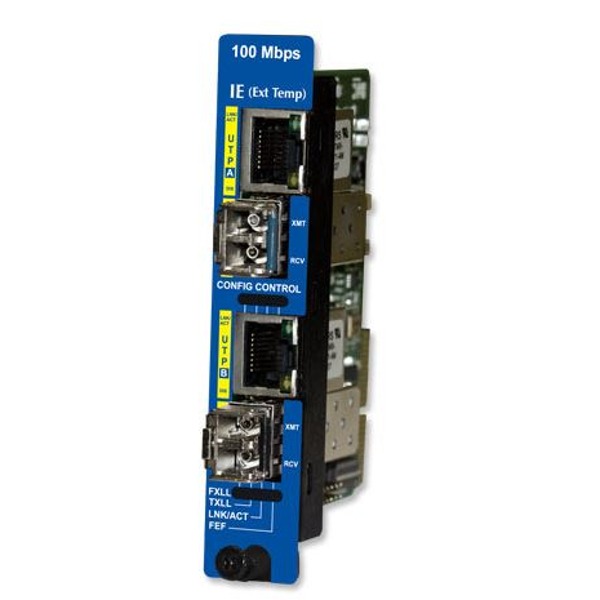

The IE-iMcV-2xLIM, TX/SFP is a Fast Ethernet module which provides two conversions of 100Base-TX twisted pair to 100Base-FX/SX singlemode or multi-mode fiber. There are two sets of ports, RJ-45 (copper) and SFP (fiber). The SFP port supports all MSA and Cisco compliant, SC, LC and single-strand fiber (SSF), 155 Mbps SFPs. Designed as a Layer 1 device, the IE-iMcV-2xLIM is entirely transparent to both Layer 2 and Layer 3 protocols. The IE-iMcV-2xLIM is SNMP-manageable and can be installed into the modular, SNMP-manageable iMediaChassis or the MediaChassis series.

Easily configure and manage converters with the GUI-based iView². As an SNMP management application, iView² gives network managers the ability to monitor and control products. iView² runs standalone on Windows 2000/XP/Vista/Win7 or as a Web Server running under IIS.

Spezifikationen

Technische

  • 2 x RJ-45 and 2 x SFP ports (SFPs sold separately)
  • IEEE 802.3u 100Base-T over twisted pair
  • IEEE 802.3u 100Base-FX or SX over twisted pair
  • AutoCross for MDI/MDIX
  • LinkLoss, Far End Fault & Auto Negotiation
  • Link Fault Pass-Through (LFPT)
  • Supports Config Control
  • MDI/MDIX switch
  • DIP Switch selectable Auto Negotiation on copper port
  • Features low latency
  • Supports Half- and Full-Duplex operation
  • Supports Jumbo packets (No size limit)
  • Install in any iMediaChassis or MediaChassis
  • Supports GUI-Based iView²
  • Includes diagnostic LEDs
  • Hot-swappable architecture

Standards

  • SFP-MSA SFP standard (September 14, 2000)
  • SFF-8472 DDMI standard (Revision 1.0)
  • IEEE 802.3

Mechanische

  • Dimensions 4.19”H x 0.78”W x 2.75”D (10.74 x 2 x 7.05 cm)
  • Shipping Weight 0.30 lbs (.11 kg)

Strom

  • 100 to 240 VAC 50/60Hz (External Power Supply) 5 VDC ± 5%
  • Max Current: 0.80A

Umgebung

  • Operating Temperature: -40° F to +176° F (-40° C to +80° C)
  • Storage Temperature: -40° F to +176° F (-40° C to +80° C)
  • Operating Humidity 5% to 95% (non-condensing), 0 – 10,000 ft. altitude

Zertifikate

  • FCC Class B
  • UL, CSA, CE
  • TUV
Modelle
850-18610 IE-iMcV-2xLIM, TX/SFP (requires two SFP/155 Modules, sold separately)
