IMCV-MediaLinX Serie - Medienkonverter mit SNMP Management

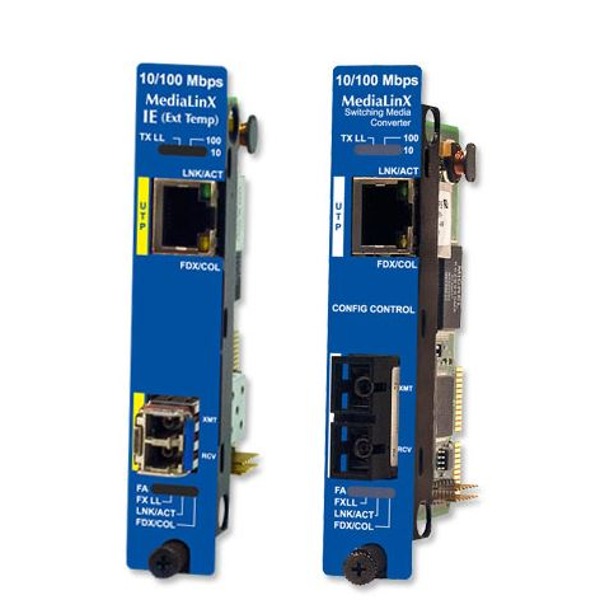

Der IMCV-MediaLinX von B+B SmartWorx ist ein managed Medienkonverter.
Der IMCV-MediaLinX von B+B SmartWorx ist ein managed Medienkonverter.
Die SNMP Managed Ethernet zu Glasfaser Medienkonverter der IMCV-MediaLinX Serie von B+B SmartWorx sind ausgestattet mit einem 10/100 Mbps Ethernet Port, einem SC oder ST Glasfaser Port (Single- oder Multi-Mode), Link Fault Pass-Through (LFPT) und Hot-Swap Funktion.

zum Merkzettel hinzufügen

Datenblatt zusenden

IMCV-MediaLinX Series - 10/100 Mbps Ethernet Media Converter

Satisfying today’s networking needs while preparing for tomorrow’s cabling requirements can make designing and installing the physical layer of networks a daunting task. The decreasing cost of fiber optic cabling and switching equipment makes all-optical LANs the obvious choice when future-proofing network equipment. Replacing legacy equipment and wiring infrastructure is a costly choice. Managed media conversion allows implementation of new technologies on existing networks, while monitoring all connections, to keep networks running and up-to-date.

B&B Electronics offers a wide range of SNMP-managed Ethernet copper to fiber media converters, with a choice of fixed rate or rate conversion capabilities. The “iMcV-“ modules also include troubleshooting features and LEDs to assist in network diagnostics as well as make isolating cable breaks easier. The iMcV-MediaLinX and IE-iMcV-MediaLinX also features Link Fault Pass-Through. In addition, the IE-Module provides support for Config Control if using SNMP management.

All converters feature an RJ-45 copper port and a fiber port, with a choice of SC, ST or SFP (IE-iMcV-MediaLinX only) connectors, and are hot-swappable.

Rate converters employ Auto Negotiation functionality on the twisted pair port for plug-and-play operation, or they can be manually configured for the desired speed and duplex mode.


  • IEEE 802.3x flow control
  • AutoCross for MDI/MDIX
  • Features LinkLoss and FiberAlert
  • Features Auto Negotiation and Selective Advertising
  • Supports Config Control (IE-iMcV-MediaLinX only) *
  • Features Link Fault Pass-Through (LFPT)
  • Layer 2 packet switching, store and forward operation
  • Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps;
    1,488,100 pps for 1000 Mbps (Gigabit only)
  • Installs in any iMediaChassis or MediaChassis
  • Supports Jumbo Frames, up to 1916 MTU
  • Supports GUI-Based iView2
  • Supports Half- and Full-Duplex operation
  • IE model supports extended temperature

Supported Fiber Types

  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber
  • Single-strand fiber


  • Connectors: RJ-45 and SC or SFP
  • Available for single-strand fiber
  • Includes hot-swappable architecture

Standards Compliance

  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • 802.3u 100Base-FX or SX

Regulatory Approval

  • FCC Class B
  • CE

Operating Temperature

+32º to +122º F (0º to 50º C) iMcV-MediaLinX
-40° to +185° F (-40° to +85° C) IE-iMcV-MediaLinX
5% to 95% (non-condensing), 0 - 10,000 ft. altitude

Storage Temperature

-13º to +158º F (-25º to +70º C); 5% to 95% (non-condensing), 0 - 10,000 ft. altitude

Power Rating

580mA at 5V


Standard single-slot chassis module

Shipping Weight

0.30 lbs (0.11 kg)
856-15711 iMcV-MediaLinX, TX/SX-MM850-ST
856-15712 iMcV-MediaLinX, TX/SX-MM850-SC
856-15713 iMcV-MediaLinX, TX/FX-MM1300-ST
856-15714 iMcV-MediaLinX, TX/FX-MM1300-SC
856-15717 iMcV-MediaLinX, TX/FX-SM1310/PLUS-ST
856-15718 iMcV-MediaLinX, TX/FX-SM1310/PLUS-SC
856-15719 iMcV-MediaLinX, TX/FX-SM1310/LONG-ST
856-15720 iMcV-MediaLinX, TX/FX-SM1310/LONG-SC
856-15723 iMcV-MediaLinX, TX/FX-SM1550/LONG-SC
856-15731 iMcV-MediaLinX, TX/SSFX-SM1310-SC (1310xmt/1550rcv)
856-15732 iMcV-MediaLinX, TX/SSFX-SM1550-SC (1550xmt/1310rcv)
856-15733 iMcV-MediaLinX, TX/SSFX-SM1310/PLUS-SC (1310xmt/1550rcv)
856-15734 iMcV-MediaLinX, TX/SSFX-SM1550/PLUS-SC (1550xmt/1310rcv)
856-15735 iMcV-MediaLinX, TX/SSFX-SM1310/LONG-SC (1310xmt/1550rcv)
856-15736 iMcV-MediaLinX, TX/SSFX-SM1550/LONG-SC (1550xmt/1310rcv)
