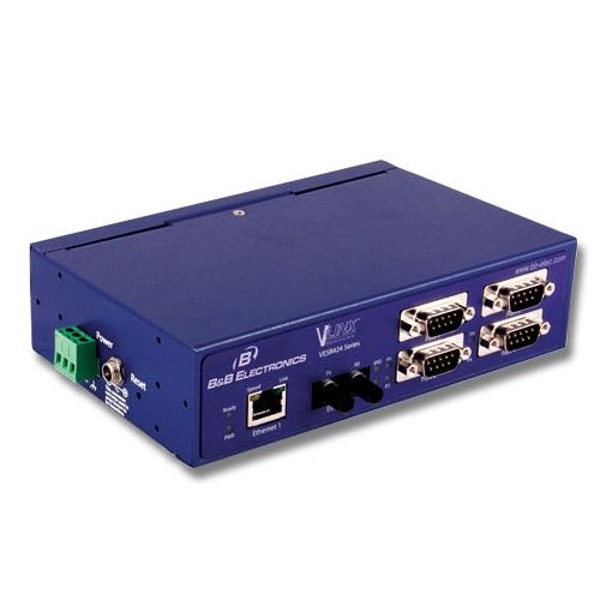

Vlinx VESR400 Serie - 4 Port Geräteserver

Der Vlinx VESR400 von B+B SmartWorx ist ein serieller Geräteserver.
Der Vlinx VESR400 von B+B SmartWorx ist ein serieller Geräteserver.
Die seriellen Geräteserver der Vlinx VESR400 Serie von B+B SmartWorx sind ausgestattet mit 4 seriellen Ports (DB9 Male oder Terminal-Block) und bis zu 2 RJ-45 oder Glasfaser Anschlüssen.

zum Merkzettel hinzufügen

Datenblatt zusenden


Vlinx VESR400 Serie - IP to COM Port Server

VESR400 Ethernet serial servers connect serial devices (RS-232, RS-422 or RS-485) to Ethernet networks, enabling the serial device to become a node on the network. The serial port can be accessed remotely over a LAN/WAN through an embedded web server using Direct IP Mode, Virtual COM Port, or Paired Mode connections and a simple web browser.

Easy to Set-up, Easy to Use

Configuration, upgrades and monitoring are easy tasks with Vlinx Manager software. It installs right on your PC giving you desktop access to the serial server. Manage the serial server remotely over a LAN/WAN via the built-in web server and any web browser. Helpful for off-site troubleshooting.

Each serial server, once set up, establishes a Heartbeat connection to keep you online. Here’s how it works: if communication stops, the serial server attempts to reconnect until a connection is established. Minimizes downtime with no human intervention.

Fiber Optic Ethernet Ports

Choose a serial server with fiber optic Ethernet ports when the application requires long distance runs or high RFI/EMI noise is present. Many applications require a high level of noise immunity and fiber eliminates this problem between devices. Fiber optic connections far exceed the 100m limitation of standard Ethernet copper ports. Multi-mode fiber can be extended up to 2km distance while single-mode fiber can run as far as 20km.

Rugged, Industrial Design

  • Industrial 61000-6-2 EMC tested for harsh environments
  • IEC60068-2-27 (shock) and 600068-2-6 (vibration) tested
  • Wide operating temperature (-40 to 80°C)
  • Independent serial port selection for RS-232, RS-422 or RS-485
  • Flexible mounting: DIN rail, or Panel with Up/Down, Forward/Back options
  • Wide voltage input 10 to 58VDC, via terminal block or locking barrel plug
Modelle
VESR414TVlinx 4 Port Industrial Serial Server, 4x Terminal Block Serial Ports, 1x RJ-45 Ethernet
VESR424DVlinx 4 Port Industrial Serial Server, 4x DB9 Male Serial Ports, 2x RJ-45 Ethernet
VESR424D-MCVlinx 4 Port Industrial Serial Server, 4x DB9 Male Serial Ports, 1x RJ-45, 1x Multi-Mode SC Ethernet
VESR424D-MTVlinx 4 Port Industrial Serial Server, 4x DB9 Male Serial Ports, 1x RJ-45, 1x Multi-Mode ST Ethernet
VESR424D-SCVlinx 4 Port Industrial Serial Server, 4x DB9 Male Serial Ports, 1x RJ-45, 1x Single-Mode SC Ethernet
VESR424D-STVlinx 4 Port Industrial Serial Server, 4x DB9 Male Serial Ports, 1x RJ-45, 1x Single-mode ST Ethernet
VESR424TVlinx 4 Port Industrial Serial Server, 4x Terminal Block Serial Ports, 2x RJ-45 Ethernet
VESR424T-MCVlinx 4 Port Industrial Serial Server, 4x Terminal Block Serial Ports, 1x RJ-45, 1x SC Multi-Mode Ethernet
VESR424T-MTVlinx 4 Port Industrial Serial Server, 4x Terminal Block Serial Ports, 1x RJ-45, 1x ST Multi-Mode Ethernet
VESR424T-SCVlinx 4 Port Industrial Serial Server, 4x Terminal Block Serial Ports, 1x RJ-45, 1x SC Single-Mode Ethernet
VESR424T-STVlinx 4 Port Industrial Serial Server, 4x Terminal Block Serial Ports, 1x RJ-45, 1x ST Single-Mode Ethernet
