IE-IMCV-T1-MUX/4+ Ethernet - Modularer T1 Plus Medienkonverter

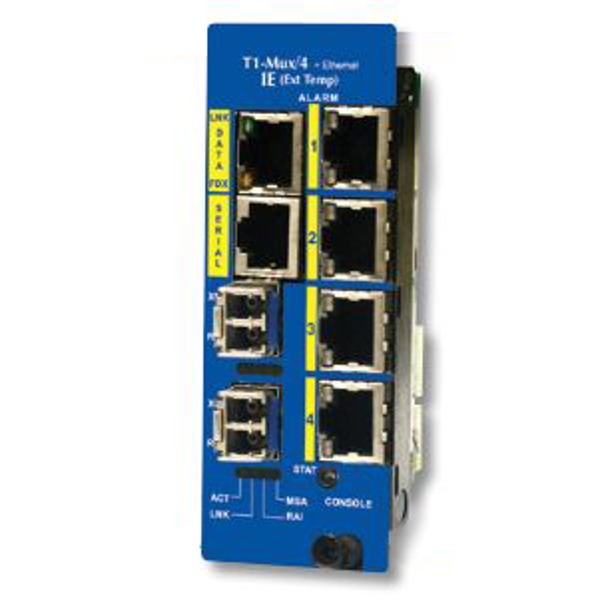

Der IE-IMCV-T1-MUX/4+ Ethernet von B+B SmartWorx ist ein Medienkonverter.
Der IE-IMCV-T1-MUX/4+ Ethernet von B+B SmartWorx ist ein Medienkonverter.
Die modularen T1 Plus Medienkonverter der IE-IMCV-T1-MUX/4+ Ethernet Serie von B+B SmartWorx sind ausgestattet mit 4x E1 RJ-48, 1x oder 2x SFP Glasfaser, 1x Ethernet, 1x RS-232 Mini-Jack, Link Fault Pass-Through Funktion (LFPT) und Überspannungsschutz.

zum Merkzettel hinzufügen

Datenblatt zusenden

IE-IMCV-T1-Mux/4+ Ethernet - Modular, Managed, Four T1 Plus Data Extension Over Fiber

The IE-iMcV-T1-Mux/4 is a managed modular media converter, installed as a Host/Remote pair, that transports four independent T1 lines over a single or dual fiber optic line. The module is ideal for applications requiring TDM extension, such as remote office PABX connectivity, with support for a full bandwidth 10/100BaseT Ethernet connection over the same optical link.

The iMcV-T1-Mux/4 detects, Ethernet, T1 and fiber LOS events as well as degraded lines with full LED indications including a Remote Alarm Indicator (RAI) over the fiber link.

Fiber redundancy (1+1) on removable SFP modules offers the enhanced reliability of a protected fiber link while supporting the complete range of optical types and distances. The 1+1 protection system automatically switches to the best fiber line within 50 milliseconds, should one line become impaired or fail.

The IE-iMcV-T1-Mux/4 features an independent serial link (RS-232) which is carried over the same fiber link(s), and can be used for transporting serial traffic from other equipment located at the remote point of presence (POP) back to the central office. The RS-232 console port is useful for local monitoring and configuration of the unit by technical support personnel.



  • Configured as Host/ Remote pairs (DIP Switch selection)
  • RoHS-Compliant
  • Double-wide module for iMediaChassis, MediaChassis and IE-MediaChassis chassis (2 slots required)
  • SNMP management via the GUI-based iView2 application software
  • Last Gasp Trap
  • Local RS-232 Console port
  • 10/100BaseT Full Bandwidth (144,800 fps/FDX)
  • Two MSA compliant optical SFP slots
  • Four T1 copper ports
  • RS-232 (Transparent to 125 Kbps)


  • Dimensions Double-wide chassis module
  • Shipping Weight 1.1 lbs. (0.50 kg)


  • 4.2W Typical 5.5W Max


  • Operating Temperature: 32° to 160°F (0° to +70°C)
  • Storage Temperature: -40° to +160°F (-40° to +70°C)
  • Operating Humidity 5% to 95% (non-condensing), 0 – 10,000 ft. altitude


  • FCC Class B
  • CE
  • IEEE-802.3u
  • ITU-T G.703 (Pulse Shape)
  • ITU-T G.824 (Jitter)
  • ITU-T-G.775 (AIS, LOS)
857-18110 iMcV-T1-Mux/4, SFP (requires one or two SFP/155 Module(s), sold separately)
