AccessEtherLinX/4 Serie - Demarcation Unit mit 5 Ports

Der AccessEtherLinX/4 von B+B SmartWorx ist eine Demarcation Unit.
Der AccessEtherLinX/4 von B+B SmartWorx ist eine Demarcation Unit.

Die Demarcation Units der AccessEtherLinX/4 Serie von B+B SmartWorx sind ausgestattet mit 5 Ports (Ethernet und Glasfaser), SNMP Managementmöglichkeit, Bi-Directionaler Bandbreitenkontrolle, LinkLoss und FiberAlert Funktion.

zum Merkzettel hinzufügen

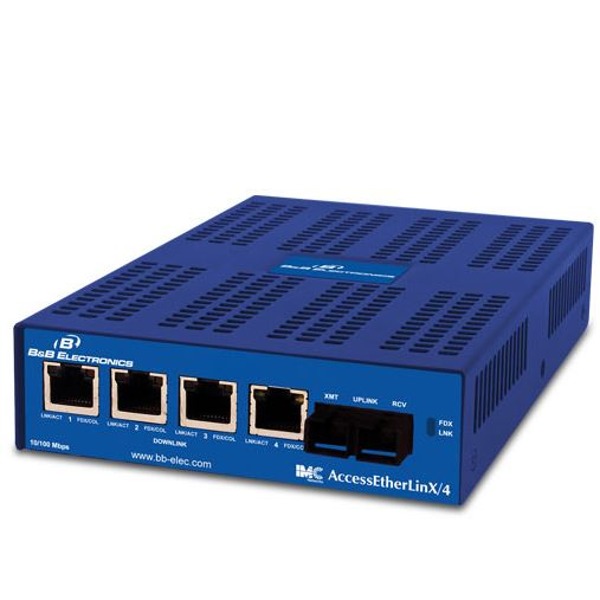

AccessEtherLinX/4 - 10/100 Mbps Managed Multi-Port Optical Demarcation Device

The AccessEtherLinX/4 enables service providers to offer differentiated, “Transparent LAN” services to multi-tenant building and business customers. Residing at the customer premises, the AccessEtherLinX/4 provides a VLAN-based, Layer 2 entry point to the last mile fiber network, trunking, differentiating and separating customer traffic.

Featuring SNMP management, 802.1Q VLAN, 802.1p QoS, traffic prioritization, bandwidth control and multicast pruning/snooping (using IGMP v1, v2), the AccessEtherLinX/4 is perfect for a wide range of Fiber to-the-Home, Fiber-to-the-Curb and Fiber-to-the-Business (collectively “FTTx”) services, and is an ideal solution for delivering those Ethernet based services to customers quickly and cost-effectively. Designed with a small footprint, the AccessEtherLinX/4 facilitates easy installation inside the premises.

Bandwidth control and 802.1Q VLAN compatibility built-in: The AccessEtherLinX/4 accepts traffic containing VLAN tags on the Uplink port and directs traffic to the twisted pair downlink ports or to management based on VLAN ID. In addition to assigning 802.1Q VLAN-tags on a per-port basis, priority can be defined for each port and SNMP tag; traffic is divided into a hi/low level for packet prioritization in the queue. The AccessEtherLinX/4 also includes bi-directional bandwidth control, and supports IGMP multicast pruning to ensure the necessary amount of IP multicast packets are bridged.


Ethernet Types Supported

  • IEEE 802.3i Ethernet 10Base-T
  • IEEE 802.3u Fast Ethernet (100Base-TX and 100Base-FX)
  • Features Auto Negotiation and Selective Advertising
  • Supports Half and Full-Duplex operation
  • Includes bi-directional bandwidth control
  • Read/write IEEE 802.1Q VLAN-tags
  • QoS - IEEE 802.1p-based packet prioritization (two queues [high/low] with eight priority levels)
  • Supports IGMP multicast pruning (v1/v2)
  • Layer 2 packet switching, store and forward operation
  • Includes LinkLoss and FiberAlert
  • Forwarding rate: 14,881 pps for 10 Mbps; 148,810pps for 100 Mbps
  • 1024 MAC address learning
  • MTU: Supports over-sized packets up to 1916 bytes


  • Includes GUI-based iView² software
  • SNMP V1 and V2c compatible
  • Supports Telnet and RS-232 Craft port
  • Managed through uplink
  • IEEE 802.3x compliant for Flow Control
  • Includes DHCP and TFTP clients for remote management and upgrades
  • Includes diagnostic LEDs


  • Traps (Cold Start, Warm Start, Link Up, Link Down, Authentication Failure)
  • Link Status of Ports
  • Port Type
  • Fiber Type
  • User-Definable Name of Product
  • User-Definable ID/Name for Ports
  • Enable/Disable Ports
  • Enable/Disable FiberAlert
  • Set for Auto Negotiation/Selective Advertising
  • Force speed and Duplex Mode for twisted pair ports

MIB-II (RFC 1213)

  • Packets Transmitted
  • Packets Received
  • Octets (bytes) Transmitted
  • Octets (bytes) Received
  • Unicast Packets Transmitted
  • Unicast Packets Received
  • Non-Unicast Packets Transmitted
  • Non-Unicast Packets Received
  • Errors Received
  • Plus All Standard MIB II Objects

RMON Statistics

  • Drop Events
  • Collisions
  • Total Bytes
  • Total Packets
  • Fragments
  • Jabbers
  • Broadcast Packets
  • Multicast Packets
  • CRC Align Errors
  • Under & oversize Packets
  • Distribution of Frame Size

Transmision Dot 3 (RFC1643)

  • Alignment Errors
  • Single Collision Frames
  • CRC Errors
  • SQE Test Errors
  • Late Collisions
  • Frame Too Long
  • Excessive Collisions
  • Deferred Transmissions
  • Multiple Collision Frames


  • Dimensions 1.5” H x 4.75” W x 7.25” D (3.18 cm x 12.07 cm x 18.42 cm)
  • Enclosure Metal
  • Shipping Weight 1.6 lbs. (0.6 kg)

Power Rating

  • 100-240 VAC, 50/60Hz, 1.0A


  • Operating Temperature +32° to +122° F (0° to +50° C)
  • Storage Temperature -13° to +158° F (-25° to +70° C)
  • Operating Humidity 5 to 95% Non-condensing

Regulatory Approvals

  • FCC Class A
  • UL/cUL, CSA, CE
852-10133 Single Strand AccessEtherLinX, TX/4 + SSFX-SM1310-SC (1310xmt/1550rcv)
852-10134 Single Strand AccessEtherLinX, TX/4 + SSFX-SM1550-SC (1550xmt/1310rcv)
852-10135 Single Strand AccessEtherLinX, TX/4 + SSFX-SM1310/PLUS-SC (1310xmt/1550rcv)
852-10136 Single Strand AccessEtherLinX, TX/4 + SSFX-SM1550/PLUS-SC (1550xmt/1310rcv)
852-10137 Single Strand AccessEtherLinX, TX/4 + SSFX-SM1310/LONG-SC (1310xmt/1550rcv)
852-10138 Single Strand AccessEtherLinX, TX/4 + SSFX-SM1550/LONG-SC (1550xmt/1310rcv)
852-13120 AccessEtherLinX, TX/4 + TX
852-13121 AccessEtherLinX, TX/4 + FX-MM1300-ST
852-13122 AccessEtherLinX, TX/4 + FX-MM1300-SC
852-13123 AccessEtherLinX, TX/4 + FX-SM1310/PLUS-ST
852-13124 AccessEtherLinX, TX/4 + FX-SM1310/PLUS-SC
852-13125 AccessEtherLinX, TX/4 + FX-SM1310/LONG-ST
852-13126 AccessEtherLinX, TX/4 + FX-SM1310/LONG-SC
852-13127 AccessEtherLinX, TX/4 + FX-SM1550/LONG-SC
