McBasic TP/FO Serie - Kompatker Medienkonverter mit 10 Mbps

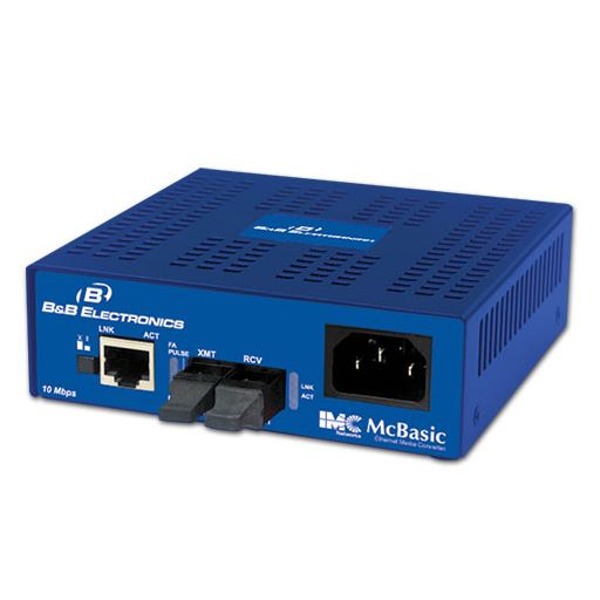

Der McBasic TP/FO von B+B SmartWorx ist ein Medienkonverter.
Der McBasic TP/FO von B+B SmartWorx ist ein Medienkonverter.
Die kompakten Ethernet zu Glasfaser Medienkonverter der McBasic TP/FO Serie von B+B SmartWorx sind ausgestattet mit einem Ethernet Port, Single-/Multi-Mode Glasfaser, LinkLoss, FiberAlert LEDs und Datenraten bis zu 10 Mbps.

zum Merkzettel hinzufügen

Datenblatt zusenden

McBasic TP/FO Series - 10 Mbps Compact Media Converters

The McBasic’s small, table-top design and durability make it perfect for installation anywhere space is limited. Additionally, the McBasic comes with an internal AC power supply. This feature significantly increases reliability over products that use bulky, external AC/DC power transformers.

The McBasic includes troubleshooting features such as LinkLoss and FiberAlert, that make isolating fiber breaks easier should they occur. The McBasic also features a crossover/pass-through switch on the twisted pair connection for MDI/MDIX connectivity and diagnostic LEDs. The McBasic TP/FO requires a connection to a device set to Force Mode. It is available in multi-mode and single-mode fiber.



  • Include MDI/MDIX switch
  • Includes fixed, internal AC power
  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber
  • Includes diagnostic LEDs
  • IEEE 802.3 10Base-T twisted pair and 10Base-FL fiber
  • Features LinkLoss and FiberAlert


  • RJ45 and ST or SC
  • Supports Half- and Full-Duplex operation


  • Dimensions 1.64”H x 4.75”W x 4.95”D (4.2 cm x 12.17 cm x 11.64 cm)
  • Shipping Weight 1.3 lbs (0.58 kg)

Power Rating

  • 100-240 VAC, 50/60Hz, 1.0A


  • Operating Temperature +32° to +122° F (0° to +50° C)
  • Storage Temperature: 0° to +160° F (-20° to +70° C)
  • Operating Humidity 5% to 95% (non-condensing)

Regulatory Aprovals

  • FCC Class A
  • UL/cUL, CSA, CE
855-10230 McBasic, TP/FO-MM850-ST
855-10231 McBasic, TP/FO-MM850-SC
855-10232 McBasic, TP/FO-MM1300-ST
855-10233 McBasic, TP/FO-MM1300-SC
855-10234 McBasic, TP/FO-SM1310/PLUS-ST
855-10235 McBasic, TP/FO-SM1310/PLUS-SC
855-10237 McBasic, TP/FO-SM1310/LONG-ST
855-10238 McBasic, TP/FO-SM1310/LONG-SC
855-10240 McBasic, TP/FO-SM1550/LONG-SC
