McBasic TX/FX Serie - Kompakter Mediekonverter mit 100 Mbps

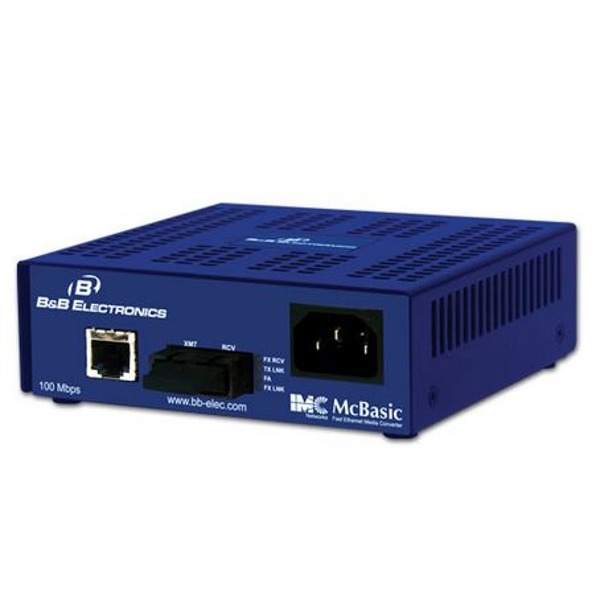

Der McBasic TX/FX von B+B SmartWorx ist ein Medienkonverter.
Der McBasic TX/FX von B+B SmartWorx ist ein Medienkonverter.
Die kompakten Ethernet zu Glasfaser Medienkonverter der McBasic TX/FX Serie von B+B SmartWorx sind ausgestattet mit Ethernet, Single- oder Multi-Mode Glasfaser, LinkLoss, FiberAlert Funktionen und Datenraten bis zu 100 Mbps.

zum Merkzettel hinzufügen

Datenblatt zusenden


McBasic TX/FX - 100 Mbps Compact Media Converter

The McBasic’s small, table-top design and durability make it perfect for installation anywhere space is limited. Additionally, the McBasic comes with an internal AC power supply. This feature significantly increases reliability over products that use bulky, external AC/DC power transformers. The McBasic series includes:

The McBasic includes troubleshooting features such as LinkLoss, FiberAlert, Transparency and Link Fault Detection that make isolating fiber breaks easier should they occur. The McBasic also features AutoCross on twisted pair connections and diagnostic LEDs. Most McBasic units are available with single-strand fiber which can effectively double the capacity of fiber by allowing two individual channels to share one strand of fiber; Full-Duplex data travels on different wavelengths — 1310 nm and 1550 nm, for example.

Specifications

Technical

  • Include MDI/MDIX switch
  • Includes fixed, internal AC power
  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber
  • Includes diagnostic LEDs
  • IEEE 802.3u 100Base-TX twisted pair and 100Base-FX or -SX fiber
  • Features LinkLoss and FiberAlert
  • Features Auto Negotiation

Connectors

  • RJ45 and ST or SC
  • Supports Half- and Full-Duplex operation

Mechanical

  • Dimensions 1.64”H x 4.75”W x 4.95”D (4.2 cm x 12.17 cm x 11.64 cm)
  • Shipping Weight 1.3 lbs (0.58 kg)

Power Rating

  • 100-240 VAC, 50/60Hz, 1.0A

Environmental

  • Operating Temperature +32° to +122° F (0° to +50° C)
  • Storage Temperature: 0° to +160° F (-20° to +70° C)
  • Operating Humidity 5% to 95% (non-condensing)

Regulatory Approvals

  • FCC Class A
  • UL/cUL, CSA, CE
Modelle
855-10927 McBasic, TX/FX-MM1300-ST
855-10928 McBasic, TX/FX-MM1300-SC
855-10929 McBasic, TX/SX-MM850-ST
855-10930 McBasic, TX/SX-MM850-SC
855-10931 McBasic, TX/FX-SM1310/PLUS-ST
855-10932 McBasic, TX/FX-SM1310/PLUS-SC
855-10933 McBasic, TX/FX-SM1310/LONG-ST
855-10934 McBasic, TX/FX-SM1310/LONG-SC
855-10937 McBasic, TX/FX-SM1550/LONG-SC
855-10949 McBasic, TX/SSFX-MM1310-SC (1310xmt/1550rcv)
855-10950 McBasic, TX/SSFX-MM1550-SC (1550xmt/1310rcv)
855-10951 McBasic, TX/SSFX-SM1310-SC (1310xmt/1550rcv)
855-10952 McBasic, TX/SSFX-SM1550-SC (1550xmt/1310rcv)
855-10953 McBasic, TX/SSFX-SM1310/PLUS-SC (1310xmt/1550rcv)
855-10954 McBasic, TX/SSFX-SM1550/PLUS-SC (1550xmt/1310rcv)
855-10955 McBasic, TX/SSFX-SM1310/LONG-SC (1310xmt/1550rcv)
855-10957 McBasic, TX/SSFX-SM1550/LONG-SC (1550xmt/1310rcv)
