McPIM TP/FO Serie - Medienkonverter Modul

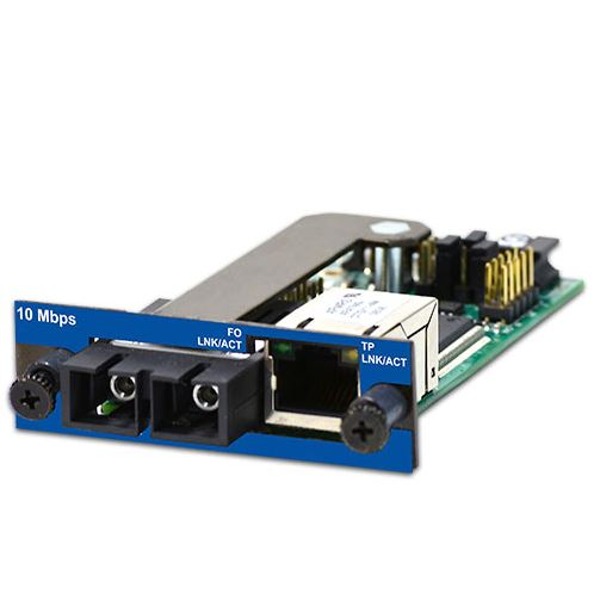

Der McPIM TP/FO von B+B SmartWorx ist ein Medienkonverter Modul.
Der McPIM TP/FO von B+B SmartWorx ist ein Medienkonverter Modul.
Die Ethernet zu Glasfaser Medienkonverter Module der McPIM TP/FO Serie von B+B SmartWorx sind ausgestattet mit einem Single- oder Multimode Glasfaser Port, einem Ethernet Port, Hot-Swap Funktion und Übertragungsreichweiten von bis zu 80km.

zum Merkzettel hinzufügen

Datenblatt zusenden

McPIM TP/FO - 10 Mbps Media Converter Module

Your network is growing and many new access points, workstations, etc. are required. However, legacy equipment, along with your existing wiring infrastructure, must work with any new equipment you implement in your network. When copper-to-fiber, copper-tocoax or fiber-to-fiber conversions are required, along with advanced troubleshooting features, our MediaConverter Series is the perfect solution.

MediaConverter Series enables you to easily and cost-effectively connect one type of media to other dissimilar media or networking products. This series increases the functionality and extends the productive life of both your legacy cabling infrastructure and networking equipment when adding fiber to your network.



  • Install in any MediaConverter chassis
  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber
  • Include diagnostic LEDs
  • Include hot-swappable architecture
  • 10Base-T twisted pair
  • 10Base-FL fiber
  • Includes MDI/MDIX switch
  • Features LinkLoss and FiberAlert


  • RJ45, ST and SC
  • Supports Half- and Full-Duplex operation


  • Dimensions 0.75”H x 2.50”W x 4”D (2.20 x 6.41 x 10.25 cm)
  • Shipping Weight 0.7 lbs. (0.3 kg)


  • Operating Temperature +32° to +122° F (0° to +50° C)
  • Storage Temperature: -13° to +158°F (-25° to +70° C)
  • Operating Humidity 5% to 95% (non-condensing)

Regulatory Approvals

  • FCC Class B
  • UL/cUL, CSA, CE
855-12840 McPIM, TP/FO-MM850-ST
855-12841 McPIM, TP/FO-MM850-SC
855-12842 McPIM, TP/FO-MM1300-ST
855-12843 McPIM, TP/FO-MM1300-SC
855-12844 McPIM, TP/FO-SM1310/PLUS-ST
855-12845 McPIM, TP/FO-SM1310/PLUS-SC
855-12846 McPIM, TP/FO-SM1310/LONG-ST
855-12847 McPIM, TP/FO-SM1310/LONG-SC
855-12848 McPIM, TP/FO-SM1550/LONG-ST
855-12849 McPIM, TP/FO-SM1550/LONG-SC
