PoE McBasic LFPT Serie - PoE Medienkonverter mit Link Fault Pass Through

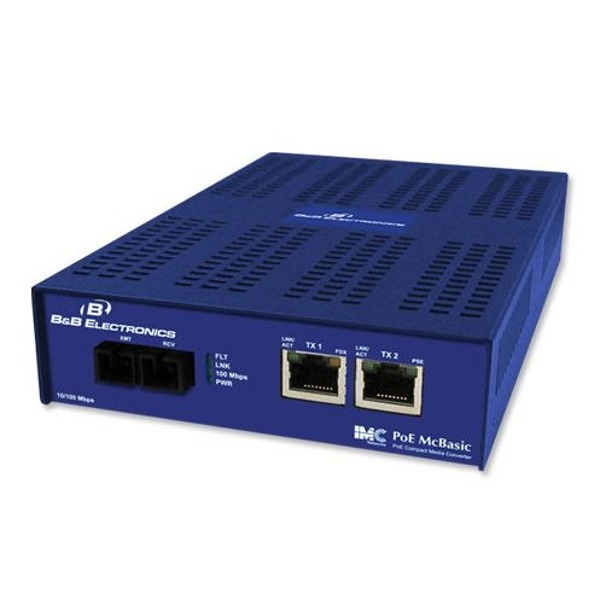

Der PoE McBasic LFPT von B+B SmartWorx ist ein Power over Ethernet Medienkonverter.
Der PoE McBasic LFPT von B+B SmartWorx ist ein Power over Ethernet Medienkonverter.
Die Ethernet zu Glasfaser Medienkonverter der PoE McBasic LFPT Serie von B+B SmartWorx sind ausgestattet mit Power over Ethernet IEEE 802.3af, Jumbo Frame unterstützung, Link Fault Pass Through (LFPT) und erreichen Datenraten bis zu 100 Mbps.

zum Merkzettel hinzufügen

Datenblatt zusenden


PoE McBasic LFPT - 10/100 Mbps PoE Media Converter

The PoE McBasic LFPT is the perfect solution for network applications that require Power over Ethernet for locations inside buildings where PoE is required to power an Ethernet device. The PoE McBasic LFPT offers three ports - a 100 Mbps fiber uplink for the network connection, one PoE/PSE 10/100Base-T copper port that provides Power over Ethernet, and one 10/100 Mbps copper port to connect a non-PoE unit to the same fiber uplink.

As a fiber-fed media converter, it provides both power (up to 15.4 Watts) and data to a single remote device over standard CAT5, eliminating the need for additional power to the device. The copper ports Auto Negotiate to the connected device’s speed and duplex mode: 10 Mbps or 100 Mbps, and HDX or FDX (including Flow Control). Additionally, the PoE McBasic LFPT supports jumbo frames up to 10240 bytes.

The PoE McBasic’s LFPT small, table-top design and durability makes it ideal for installation anywhere space is limited. Additionally, the PoE McBasic comes with an internal AC power supply. A Link Fault Pass Through DIP Switch is located on the bottom of the unit, to enable for link LED troubleshooting.

Specifications

Technical

  • IEEE 802.3 10Base-T twisted pair
  • IEEE 802.3u 100Base-TX twisted pair
  • IEEE 802.3af Power over Ethernet
  • IEEE 802.3u Auto-Negotiation
  • RFC-2474
  • RFC-2475 DiffServ QoS
  • Plug-and-play operation
  • Accepts RJ-45, SC and ST connectors
  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber
  • Single-strand fiber and CWDM models
  • FX and TX Auto Negotiation
  • AutoCross for MDI/MDIX
  • MTU: Supports Jumbo Frames up to 10240 bytes
  • Link Fault Pass Through DIP Switch

Mechanical

  • Dimensions 1.46”H x 4.76”W x 7.32”D (3.71 cm x 12.09 cm x 18.59 cm)
  • Shipping Weight 1.3 lbs (0.58 kg)

Input specifications

  • 100-240 ±10% VAC, 50/60Hz, 0.5A to 0.2A

Power Characteristics

  • Consumes less than 10 Watts (heating) plus PSE power
  • IEEE802.3af Power to field <15.4 Watts

Environmental

  • Operating Temperature +32° to +122° F (0° to +50° C)
  • Storage Temperature: -40° to +185° F (-40° to +85° C)
  • Operating Humidity 5% to 95% (non-condensing)

Regulatory Approvals

  • FCC Class A
  • UL/cUL, CSA, CE
Modelle
852-11712 PoE McBasic LFPT, MM850-ST
852-11713 PoE McBasic LFPT, MM850-SC
852-11714 PoE McBasic LFPT, MM1300-ST
852-11715 PoE McBasic LFPT, MM1300-SC
852-11716 PoE McBasic LFPT, SM1310/PLUS-ST
852-11717 PoE McBasic LFPT, SM1310/PLUS-SC
852-11718 PoE McBasic LFPT, SM1310/LONG-ST
852-11719 PoE McBasic LFPT, SM1310/LONG-SC
852-11720 PoE McBasic LFPT, SM1550/LONG-SC
