iView2 - SNMP Management Software von Advantech B+B SmartWorx

iView2 von B+B SmartWorx ist eine SNMP Management Software.
iView2 von B+B SmartWorx ist eine SNMP Management Software.
Das iView2 von B+B SmartWorx ist eine Simple Network Management Protocol (SNMP) basierte Management Software für die FTTx, Optical Access und Medienkonverter.

zum Merkzettel hinzufügen

Datenblatt zusenden


iView2 - SNMP Management Software von Advantech B+B SmartWorx

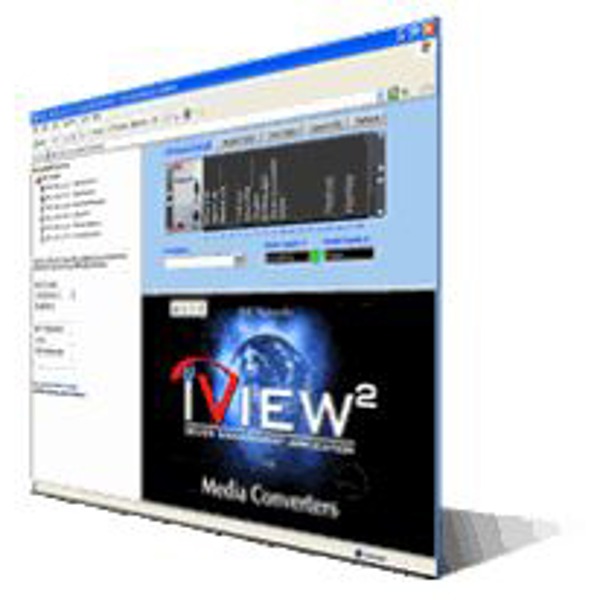

iView² features an intuitive Graphical User Interface that provides a real-life representation of all installed IMC Networks equipment and enables network managers to control and monitor device functions, port settings and receive device status information and traffic statistics via SNMP.

iView² supports multiple platforms and operating systems.  It runs standalone on Windows NT 4.0 SP 5.0/XP/2000 Professional, as a Web Server running under IIS or as a Java Web Servlet.

Windows Installations

Standalone: Version 1.9.12

  • Full standalone version for Windows® NT, 2000 and XP. Includes NNM Application for HP OpenView.
  • README File : Read Before Installing Software
  • iView² Standalone Software

Web-Based: Version 4.0.13

  • Web version for Windows® NT, 2000 and XP
  • iView² WebServer Software Full Installation
  • iView² WebServer Software Application Only

Specifications

iView² features

  • Network element SNMP v.1 & v.2c management
  • Intuitive Graphical User Interface
  • Bandwidth Utilization graphical display and chart
  • iConfig routable device configuration and upgrade utility
  • Event / trap manager for any SNMP equipment
  • Traps visual, email, SMS and pager notification
  • Device autoscan and network outline
  • Automatic software and firmware downloads
  • Module and chassis remote configuration, management and monitoring

Windows Requirements (Standalone Version)

  • Intel® Pentium™ CPU 2.80 GHz or Faster
  • 17" Monitor @ 1024 x 768 Resolution or higher
  • 35 MB free disk space, 1 GB RAM
  • Windows NT 4.0 Service Pack 5, Windows 2000 Professional, Windows XP or Windows 7
  • Microsoft® SNMP Services Installed
  • Microsoft® IE 4.0 or Higher (does NOT have to be default browser)

Windows Requirements (Web-Based Version)

  • Intel® Pentium™ CPU 2.80 GHz or Faster
  • 19" Monitor @ 1024 x 768 Resolution or higher
  • 500 MB free disk space, 2 GB RAM
  • Windows® 2000 Professional, Windows® XP, Windows® Vista or Windows 7
  • Apache Tomcat 6
  • Java J2SE Runtime Enviroment version 1.5 or greater
  • MySQL 5.1 or greater
  • Microsoft® IE 6, 7, 8 or Mozilla Firefox v3.x

Java Requirements

  • 27 MB free disk space, 64 MB RAM
  • Any OS capable of running Java (Windows® 98 or above, Solaris, LINUX)
  • Java Runtime Enviroment version 1.3 or Above
Modelle
iView2 iView2 SNMP Management Software

eWorx SE300 Serie 5, 8, 16 und 18 Port Monitored Unmanaged Netzwerk Switches

Merken

10 Port Managed Netzwerkswitches mit PoE(+) und integrierter Monitoringsoftware

Merken

iView2 Software – das kostenlose „managed“-Upgrade für eWorx SE300 Netzwerkswitche

Grundlegende Management- und Überwachungs-Funktionen für die eWorx SE300 Serie

Die eWorx SE300 Netzwerk-Switche von Advantech B+B SmartWorx können über Plug & Play schnell und einfach unmanaged eingesetzt oder in Kombination mit der iView2 SNMP Management Software zu managed Switche aufgewertet werden. Damit können sie in Echtzeit von einem zentralen Standort aus überwacht und verwaltet werden und bieten der Steuerungstechnik und IT die optimale Kontrolle ihrer Systeme.
