ACS 5000 - Advanced Console Server mit 4-48 Ports

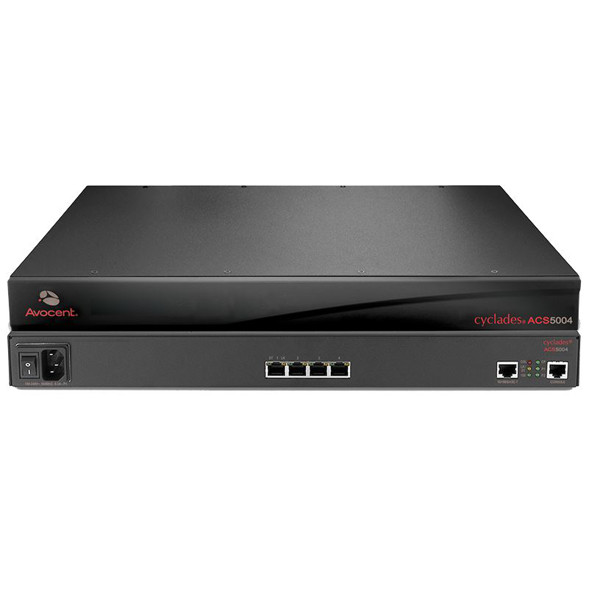

ACS5004 4 Port Advanced Console Server von Emerson Network Power (Avocent).
ACS5004 4 Port Advanced Console Server von Emerson Network Power (Avocent).
ACS5008 8 Port Advanced Console Server von Emerson Network Power (Avocent).
ACS5016 16 Port Advanced Console Server von Emerson Network Power (Avocent).
ACS50032 32 Port Advanced Console Server von Emerson Network Power (Avocent).
ACS5048 48 Port Advanced Console Server von Emerson Network Power (Avocent).
Diagramm zur Anwendung der ACS 5000 Console Server von Emerson Network Power (Avocent).

Die ACS 5000 (Advanced Console Server) Geräte von Emerson Network Power (Avocent) sind serielle Konsolenserver mit 4, 8, 16, 32 oder 48 Anschlüssen im 1U Gehäuse mit einfacher AC Stromversorgung. Sie unterstützen Sicherheits-Features wie z.B.: SSH v2, RADIUS Authentifizierung, IP Filter und Benutzer-Zugriffslisten.

zum Merkzettel hinzufügen


ACS5000 Advanced Console Server mit 4-48 Ports

The Avocent® ACS 5000 advanced console server offers IT professionals and network operations center (NOC) personnel the ability to perform secure, remote data center management and out-of-band management of IT assets from anywhere in the world. Using a hardened Linux® operating system, the Avocent® ACS 5000 console server provides optimal performance, security and reliability. Combined with integrated power management and using Avocent DSViewTM management software, the Avocent® ACS 5000 console server offers centralized management and a secure and consolidated out-of-band management solution.

Decreased Maintenance Costs and Enhanced Productivity

Available in 4-, 8-, 16-, 32- and 48-port models that fit in 1U of rack space, the ACS 5000 console server helps maximize network and server availability with scalability and cost-effectiveness.

Security features such as SSH v2, RADIUS authentication, IP filtering and user access lists per port allow data center managers and system administrators the ability to remotely manage the network and servers with greater control and reliability.

Console management features such as data buffering, direct access methods to the serial ports (such as TCP port and server name) and event notification improve monitoring capabilities which allow faster problem solving and higher network uptime.

The Avocent® ACS 5000 console server decreases network maintenance costs and helps maximize IT asset productivity while providing scalability, making it the right choice for secure in-band and out-of-band management for medium to large enterprise data centers.

  • Secure In-Band and Out-of-Band Network – Dependable network remote management
  • Easy Configuration and Installation – Robust auto discovery tool
  • Compliance with Data Center Access and Security Policies – Customizable, multiple access levels
  • Integrated Power Management – Support for the Avocent Power Management Distribution Unit (PM PDU) and third-party power support
  • Industry-Leading Enhanced Security Framework – Supports security policies using preset and custom security profiles
  • Centralized Power Management – Enables monitoring and measurement of energy consumption and simplifies power and cooling capacity planning
  • Centralized Administration for Access and Control – Using DSView® 3 management software
  • Compatible with Next-Generation Network Standards – Supports IPv6
  • Access to Remote and Unreachable Locations – Using Ethernet/modem PC cards
  • Automatic Event Tracking – Plus notification of fault conditions
  • Regulatory Compliance and Easy Troubleshooting – Online and offline data logging with time stamp

Diagramm

acs5000-emerson-network-power-avocent-advanced-console-server-diagramm

Details zum ACS 5000

Operating System

  • Embedded Linux

Accessibility

  • In-band (Ethernet) and out-of-band (dial-up modem) support
  • Dedicated console port

Security

  • SSHv1 and SSHv2
  • Local, RADIUS, TACACS+, LDAP/AD
  • Two-factor authentication (RSA SecurID®)
  • PAP/CHAP
  • Local, backup-user authentication support
  • IP packet and security filtering
  • User-access lists per port
  • System event syslog
  • Dial-up access (PPP)
  • Dial-up authentication for remote access
  • IP forwarding support

Console Management

  • Windows Server 2003 EMS support
  • Sun® break-safe (Solaris Ready certified)
  • Java®-based SSH client
  • Off-line data buffering – local or remote (NFS/syslog)
  • Level-based syslog filters
  • Time stamp and rotations for data buffering
  • Unlimited number of simultaneous sessions
  • Simultaneous access on the same port (port sniffing) with ability to toggle
  • Clustering (central access to multiple console servers)
  • Event notification (e-mail, pager, SNMP trap)
  • Global time zone support
  • Multiple and customizable user levels of access

Port Access

  • Directly by TCP port, IP address or server name
  • Telnet/SSH with menu
  • Simultaneous Telnet and SSH access
  • HTTP/HTTPS

System Management

  • Configuration wizard for first-time users
  • Auto-discovery for automatic deployment
  • Command line access (Linux shell)
  • Web management interface (HTTP/HTTPS)
  • SNMP
  • Centralized management using Avocent DSViewTM software

Power Management

  • Power integration using Avocent® Power Management Distribution Units (PM PDUs)
  • Third-party power support using SPC power control device
  • ServerTech Switched CDU Power Strips

Cabling

  • CAT-5 compatible adapters for simpler cabling

Upgrades

  • Upgrades available on FTP site, no charge
  • Flash upgradeable
  • TFTP support for network boot

Additional Protocols Supported

  • DHCP for dynamic IP address assignment
  • IPv6 support for greater deployment flexibility
  • PPP for dial-up
  • NTP for time server synchronization
  • RFC2217 support for remote serial port access
ACS 5000 Advanced Console Server
ACS 50044 Port Konsolenserver, einfache AC Stromversorgung
ACS 50088 Port Konsolenserver, einfache AC Stromversorgung
ACS 501616 Port Konsolenserver, einfache AC Stromversorgung
ACS 503232 Port Konsolenserver, einfache AC Stromversorgung
ACS 504848 Port Konsolenserver, einfache AC Stromversorgung
ACS 5032DAC32 Port Konsolenserver, duale AC Stromversorgung
ACS 5048DAC48 Port Konsolenserver, duale AC Stromversorgung
ACS6004SAC 4 Port Advanced Console Server von Emerson Network Power (Avocent). ACS 6000 Konsolenserver

Konsolenserver mit 4-48 Ports und einfacher oder dualer Stromversorgung
