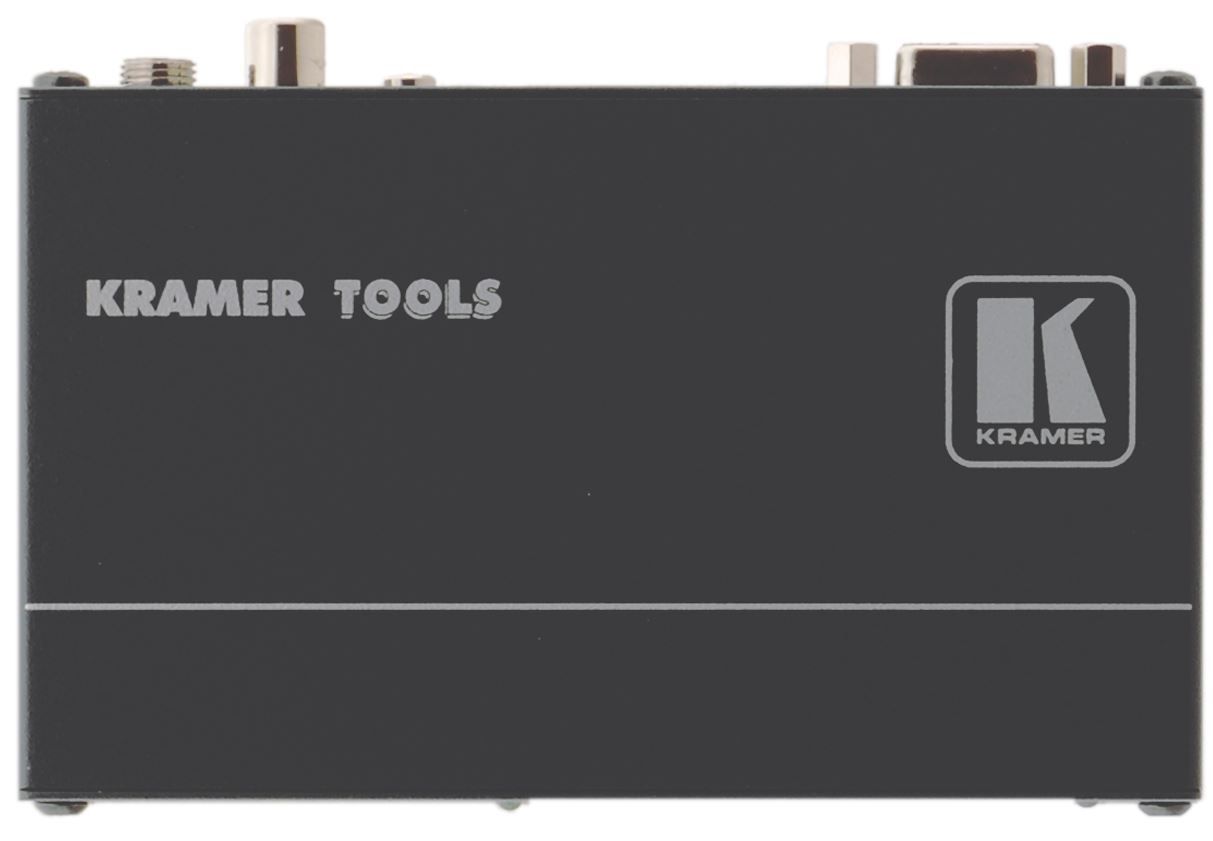

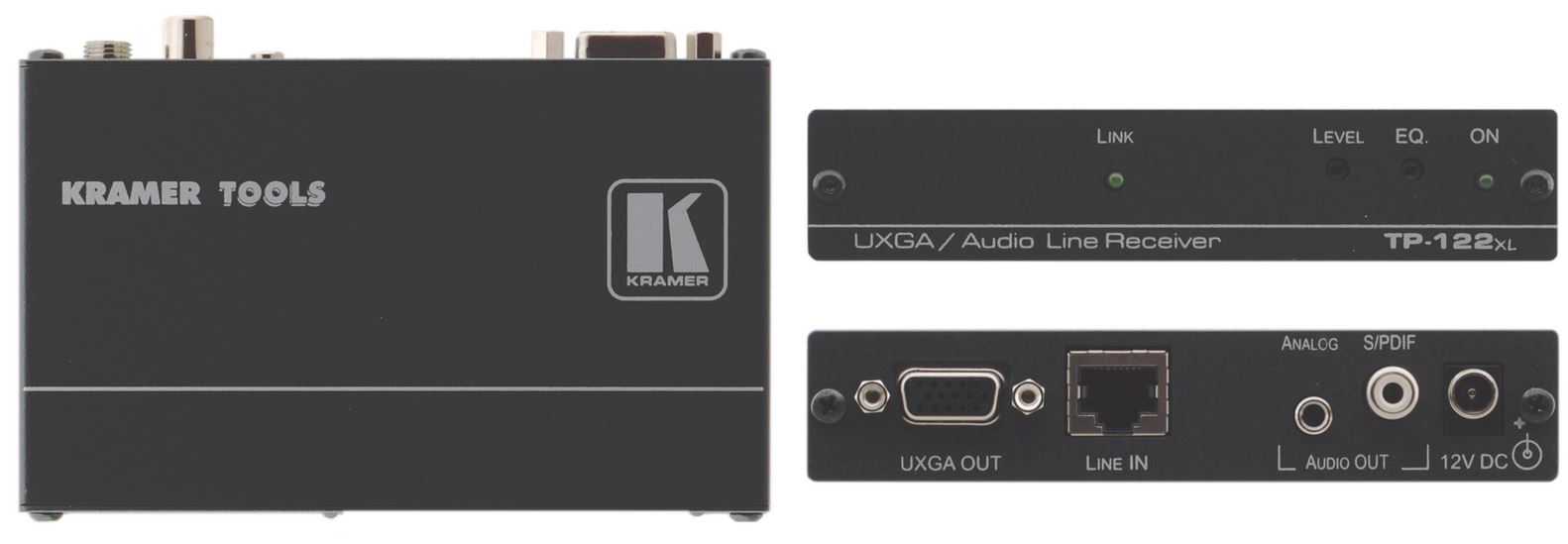

TP-122XL - Twisted Pair Empfänger für VGA und Audio

TP-122XL - Twisted Pair Receiver für VGA-Grafik und Audio

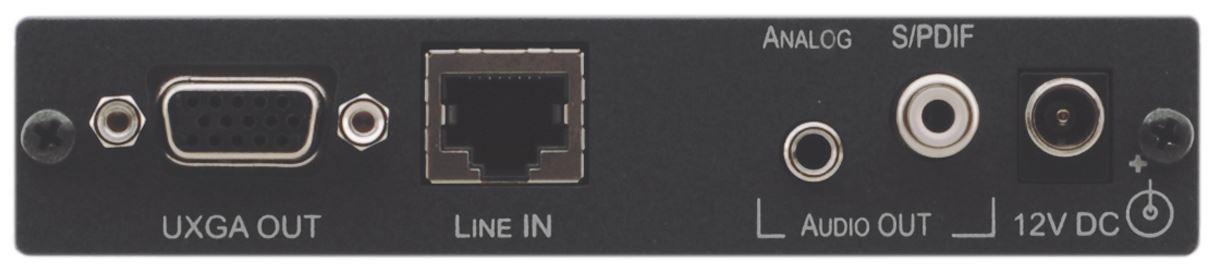

The TP−122xl is a high−performance twisted pair receiver for computer graphics video and unbalanced stereo audio signals. It converts the twisted pair input signal to WUXGA video, unbalanced stereo and S/PDIF audio signals.

• Max. Resolution - WUXGA & 1080p.
• HDTV Compatible.
• Interference Protection - Increased level of protection against noise, spikes and interference in adverse environments.
• System Range - More than 250m (more than 820ft).

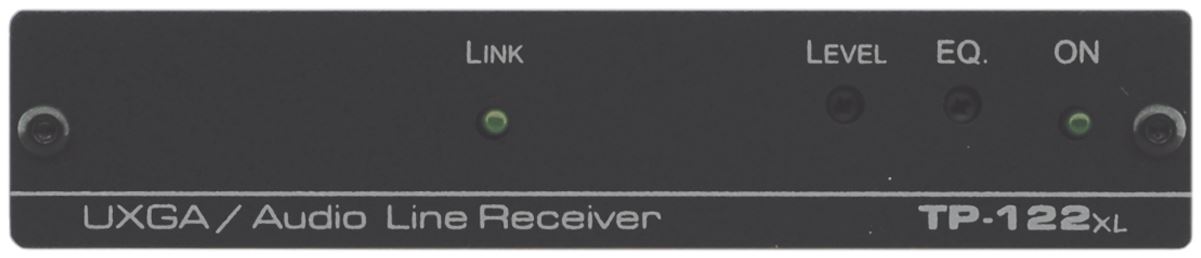

• Level (Gain) and Equalization (Peaking) Adjustment.
• Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
• Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 60m (200ft) of each other.
• Size - Compact TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.

Diagramm
