IMCV-PIM Serie - Managed Ethernet zu Glasfaser Konverter

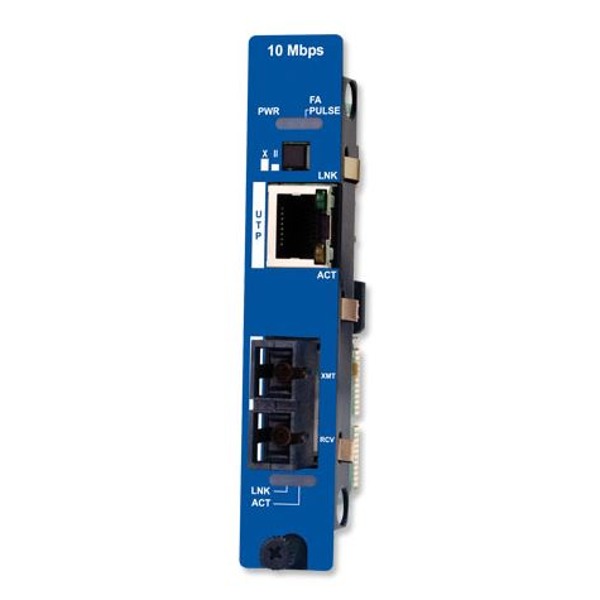

Der IMCV-PIM von B+B SmartWorx ist ein managed Medienkonverter.
Der IMCV-PIM von B+B SmartWorx ist ein managed Medienkonverter.
Die SNMP Managed Ethernet zu Glasfaser Medienkonverter der IMCV-PIM Serie von B+B SmartWorx sind ausgestattet mit einem 10 Mbps Ethernet Port, einem SC oder ST Glasfaser Port (Single- oder Multi-Mode) und Hot-Swap Funktion.

zum Merkzettel hinzufügen

Datenblatt zusenden

IMCV-PIM - 10 Mbps Ethernet Media Converter

Satisfying today’s networking needs while preparing for tomorrow’s cabling requirements can make designing and installing the physical layer of networks a daunting task. The decreasing cost of fiber optic cabling and switching equipment makes all-optical LANs the obvious choice when future-proofing network equipment. Replacing legacy equipment and wiring infrastructure is a costly choice. Managed media conversion allows implementation of new technologies on existing networks, while monitoring all connections, to keep networks running and up-to-date.

B&B Electronics offers a wide range of SNMP-managed Ethernet copper to fiber media converters, with a choice of fixed rate or rate conversion capabilities. The “iMcV-“ modules also include troubleshooting features and LEDs to assist in network diagnostics as well as make isolating cable breaks easier. In addition, replacing the hot-swappable modules won’t disable other modules services running within the same chassis during product upgrades or maintenance and troubleshooting.

All converters feature an RJ-45 copper port and a fiber port, with a choice of SC or ST connectors.



  • 10Base-T twisted pair
  • 10Base-FL fiber
  • MDI/MDIX switch
  • Features LinkLoss and FiberAlert
  • Connectors: RJ-45 and ST, SC
  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber
  • Install in any iMediaChassis or MediaChassis
  • Support GUI-Based iView²
  • Support Half- and Full-Duplex operation
  • Include diagnostic LEDs
  • Include hot-swappable architecture


  • Dimensions 4.19”H x 0.78”W x 2.75”D (10.74 x 2 x 7.05 cm)
  • Shipping Weight 0.30 lbs (.11 kg)


  • Operating Temperature: +32° to +122° F (0° to +50° C)
  • Storage Temperature: -13° to +158° F (-25° to +70° C)
  • Operating Humidity 5% to 95% (non-condensing), 0 – 10,000 ft. altitude

Regulatory Approvals

  • FCC Class A
  • CE
850-14940 iMcV-PIM, TP/FO-MM850-ST
850-14941 iMcV-PIM, TP/FO-MM850-SC
850-14942 iMcV-PIM, TP/FO-MM1300-ST
850-14943 iMcV-PIM, TP/FO-MM1300-SC
850-14944 iMcV-PIM, TP/FO-SM1310/PLUS-ST
850-14945 iMcV-PIM, TP/FO-SM1310/PLUS-SC
850-14946 iMcV-PIM, TP/FO-SM1310/LONG-ST
850-14947 iMcV-PIM, TP/FO-SM1310/LONG-SC
850-14949 iMcV-PIM, TP/FO-SM1550/LONG-SC
