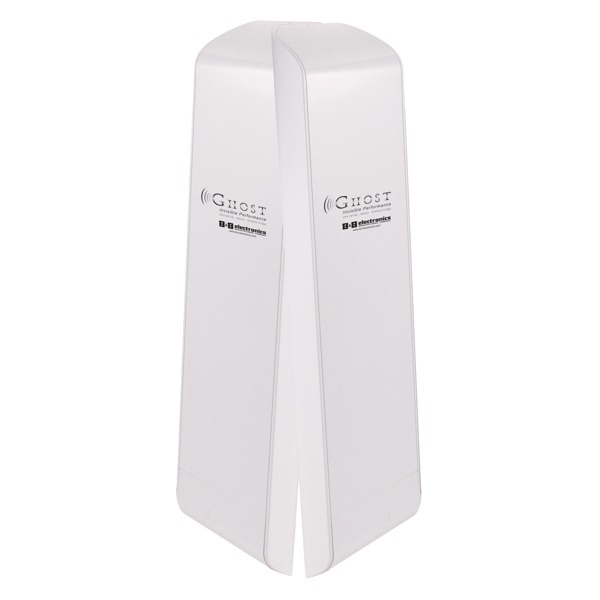

Ghostbridge Serie - Wireless Ethernet Bridge

Die Ghostbridge von B+B SmartWorx ist eine Wireless Bridge.
Die Ghostbridge von B+B SmartWorx ist eine Wireless Bridge.
Die Wireless Bridges der Ghostbridge Serie von B+B SmartWorx sind ausgestattet mit einem Ethernet Port und Übertragungsraten von bis zu 150 Mbps. Außerdem erreichen die Ghostbridges Übertragungsdistanzen bis zu 15km und unterstützen Frequenzen von 2.4 oder 5GHz.

End of Life » Anfrage Produktnachfolger

zum Merkzettel hinzufügen

Datenblatt zusenden

Secure Zero Set-up No configuration necessary!

Simply plug in, aim until the LEDs show the best signal strength and you're done. With the GhostBridge wireless Ethernet bridge, you'll achieve blazing link speeds up to 150Mbps - performance that will make you wonder why you ever ran cables in the first place!
All settings are preconfigured for a true out-of-the-box plug and play experience. Simply unplug your existing Ethernet cable and create a wireless point-to-point link between devices or networks.


Ultra high-speed and long range makes the wireless link seamless. The GhostBridge wireless Ethernet bridge has over-the-air speeds of up to 150Mbps, so you won't experience latency or throughput bottlenecks.

Long Range

The 5 GHz radio is built from 802.11n 2x2 MIMO technology combined with the integrated 80 degree, 15dBi sector antenna you get incredible range. Line-of-sight distances of up to 15km are possible.


Configured out-of-the box with WPA2, 128-bit security for highly secure point-to-point operation. No software setup required. Outdoor rated enclosure for hardware protection, too.

No additional parts or accessories needed.

  • The GhostBridge wireless Ethernet is shipped in preconfigured pairs
  • Antenna is integrated in housing.
  • Pole mount is part of molded outdoor enclosure.
  • No power supply required with the included power-sourcing PoE adapter.

Features & Benefits

  • Point and play set-up allows the unit to start transmitting within a few minutes - indoors or outdoors
  • Ultra high-speed -- up to 150 Mbps
  • Long Range -- up to 15km
  • WPA2, 128-bit security provides data-safe operation
  • License Free - 5 GHz radio, 2x2 MIMO low-tech proprietary RF chipset!


  • Preconfigured with WPA2 128-bit security – user configurable to other standards
  • Maximum data rate: 150Mbps
  • Distance: up to 15km line of sight
  • Ethernet connectors: RJ45, auto MDI/MDX – pass-through Ethernet connection available
  • Power (8W): Includes (2) 24V PoE injector adapters - one for AC power, one for DC power
  • Temperature Range: -30 to + 80°C
  • Case: Outdoor, UV stable plastic
  • Dimensions: 28.0 x 8.0 x 6.0 cm
  • Mounting: Integrated pole mount (optional wall mount kit sold separately)
GHOSTBRIDGE2Wirless Ethernet Bridge mit 2.4 GHz
GHOSTBRIDGE5Wirless Ethernet Bridge mit 5 GHz
