McGigabit Serie - Medienkonverter Modul mit 1000 Mbps

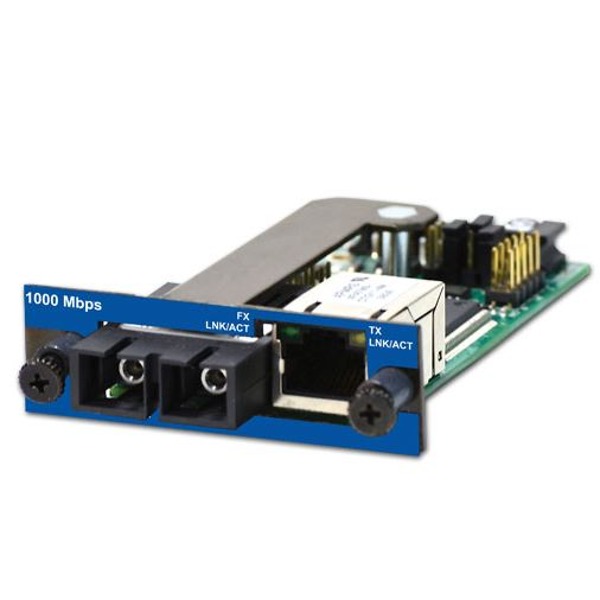

Der McGigabit von B+B SmartWorx ist ein Medienkonverter Modul.
Der McGigabit von B+B SmartWorx ist ein Medienkonverter Modul.
Die Gigabit Ethernet zu Glasfaser Medienkonverter Module der McGigabit Serie von B+B SmartWorx sind ausgestattet mit einem 1000 Mbps Twisted Pair Port, einem 1000 Mbps SC Glasfaser Port (Single- oder Multi-Mode) und Hot-Swap Funktion.

zum Merkzettel hinzufügen

Datenblatt zusenden

McGigabit - 1000 Mbps Media Converter Modules

Your network is growing and many new access points, workstations, etc. are required. However, legacy equipment, along with your existing wiring infrastructure, must work with any new equipment you implement in your network. When copper-to-fiber conversions are required, along with advanced troubleshooting features, our MediaConverter Series is the perfect solution.

MediaConverter Series enables you to easily and cost-effectively connect one type of media to other dissimilar media or networking products. This series increases the functionality and extends the productive life of both your legacy cabling infrastructure and networking equipment when adding fiber to your network.



  • Install in any MediaConverter chassis
  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber
  • Include diagnostic LEDs
  • Include hot-swappable architecture
  • 1000Base-T twisted pair
  • 1000Base-LX or SX fiber
  • AutoCross for MDI/MDIX


  • RJ45 and SC
  • Supports Half- and Full-Duplex operation


  • Dimensions 0.75”H x 2.50”W x 4”D (2.20 x 6.41 x 10.25 cm)
  • Shipping Weight 0.7 lbs. (0.3 kg)


  • Operating Temperature +32° to +122° F (0° to +50° C)
  • Storage Temperature: -13° to +158°F (-25° to +70° C)
  • Operating Humidity 5% to 95% (non-condensing)

Regulatory Approvals

  • FCC Class B
  • UL/cUL, CSA, CE
855-12670 McGigabit, TX/SX-MM850-SC
855-12671 McGigabit, TX/LX-SM1310-SC
855-12672 McGigabit, TX/LX-SM1310/PLUS-SC
855-12673 McGigabit, TX/LX-SM1550/LONG-SC
855-12674 McGigabit, TX/SSLX-SM1310-SC (1310xmt/1550rcv)
855-12675 McGigabit, TX/SSLX-SM1550-SC (1550xmt/1310rcv)
855-12676 McGigabit, TX/SSLX-SM1310/PLUS-SC (1310xmt/1550rcv)
855-12677 McGigabit, TX/SSLX-SM1550/PLUS-SC (1550xmt/1310rcv)
855-12686 McGigabit, TX/SSLX-SM1490/LONG-SC (1490xmt/1550rcv)
855-12687 McGigabit, TX/SSLX-SM1550/LONG-SC (1550xmt/1490rcv)
855-12691 McGigabit, TX/SX-MM1300-SC
855-12694 McGigabit, TX/SSBX-SM1310-SC (1310xmt/1490rcv)
855-12695 McGigabit, TX/SSBX-SM1490-SC (1490xmt/1310rcv)
855-12696 McGigabit, TX/SSBX-SM1310/PLUS-SC (1310xmt/1490rcv)
855-12697 McGigabit, TX/SSBX-SM1490/PLUS-SC (1490xmt/1310rcv)
