IMCV-Giga-FiberLinX-II Serie - Managed Optical Demarcation Module

Der IMCV-Giga-FiberLinX-II von B+B SmartWorx ist ein Demarcation Module.
Der IMCV-Giga-FiberLinX-II von B+B SmartWorx ist ein Demarcation Module.

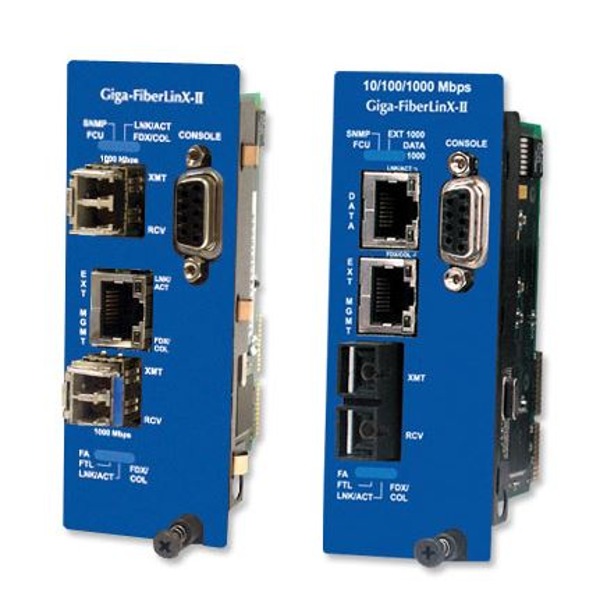

Die optischen Demarcation Module der IMCV-Giga-FiberLinX-II Serie von B+B SmartWorx sind ausgestattet mit 1 oder 2 Ethernet Ports, 1 oder 2 Glasfaser Ports, Bi-Direktionaler Bandbreitenkontrolle, OAM 802.3ah (Operation, Administration & Management), LinkLoss, FiberAlert und Loopback Troubleshooting.

zum Merkzettel hinzufügen


IMCV-Giga-FiberLinX-II Serie - 10/100/1000 Mbps Managed Optical Demarcation Module

The iMcV-Giga-FiberLinX-II intelligent media converter connects a Host/Remote Ethernet network over a fiber optic or CAT 5 copper connection. It combines media conversion with an advanced-feature set for network management and troubleshooting, including OAM (Operations, Administration and Maintenance), Extra-Tagging and EtherType control functionality. With the iMcV-Giga-FiberLinX-II, administrators can observe the end-points over the fiber segment between them, as a single management entity. Bandwidth scalability and support for MIBs II makes this modular device a versatile gigabit solution, now available as a single wide module.

iMcV-Giga-FiberLinX-II allows for remote configuration and alerts administrators to any potential problems on the long-haul fiber run, provides vital information on link condition and reports data traffic statistics. In addition to the iMcV-Giga-FiberLinX-II's support for Host/Remote environments, the product also has built-in support for the Unified Management Agent (UMA). With UMA, the central location can manage all Host/Remote pairs installed in an iMediaChassis with the single IP address of the chassis.

Optional single- or dual-SFP port versions or all copper (RJ-45) port versions are also available for complete network flexibility.  The iMcV-Giga-FiberLinX-II SFP requires one or two MSA-compliant fiber optic SFP modules (sold separately) to operate.  [Copper SFPs are not supported.]

Specification

General

  • Preserves complete end-to-end fiber connection integrity
  • Supports Extra Tagging (Q-in-Q)
  • Supports 802.3ah OAM (Operation, Administration & Management)
  • Bi-directional bandwidth control
  • Read/write IEEE 802.1Q VLAN-tags
  • QoS: IEEE 802.1p-based packet prioritization (2 queues [high/low] with 8 levels of priority)
  • Layer 2 packet switching, store and forward operation
  • Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps; 1,488,100 pps for 1000 Mbps
  • Auto-Cross for MDI/MDIX
  • Features Auto Negotiation and Selective Advertising
  • Supports Half and Full-Duplex operation
  • MTU: Supports over-sized (Jumbo) packets up to 12196 bytes

Security

  • Password Control
  • Multiple Access Levels: User Assigned Accounts & Access Levels

Management

  • SNMP V1 and V2c compatible
  • Includes GUI-based iView² software for remote management and upgrades
  • Monitors far-end (remote) status without a physical presence or separate connection
  • IEEE 802.3x Flow Control
  • Includes DHCP and TFTP clients
  • Supports Telnet
  • Includes loopback test modes (MAC swap)
  • Includes LinkLoss and FiberAlert
  • Supports the Unified Management Agent (UMA)
  • Includes status LEDs

Ethernet Protocols Supported

  • IEEE 802.3i 10Base-T twisted pair
  • IEEE 802.3u 100Base-TX twisted pair
  • IEEE 802.3x Flow Control
  • IEEE 802.3z 1000Base-X fiber
  • IEEE 802.ab 1000Base-T twisted pair

Mechanical

  • Dimensions: Double Wide Module
  • Shipping Weight: 0.8 lbs (0.36 kg)

Power Consumption

  • 580mA at 5V

Environmental

  • Operating Temperature: +32° to +122° F (0° to +50° C)
  • Storage Temperature: -13° to +158° F (-25° to +70° C)
  • Operating Humidity: 5 to 95% Non-condensing

Regulatory Approvals

  • FCC Class A
  • UL/cUL, CE, CSA
Modelle
856-14760 iMcV-Giga-FiberLinx-II, TX/TX /SFP (one SFP/1250-ED Module, sold separately)
856-14761 iMcV-Giga-FiberLinx-II, SFP/TX/SFP (two SFP/1250-ED Modules, sold separately)
856-14869 iMcV-Giga-FiberLinX-II, TX/SX-MM850-SC
856-14870 iMcV-Giga-FiberLinX-II, TX/LX-SM1310-SC
856-14871 iMcV-Giga-FiberLinX-II, TX/LX-SM1310/PLUS-SC
856-14872 iMcV-Giga-FiberLinX-II, TX/LX-SM1550/LONG-SC
856-14873 iMcV-Giga-FiberLinX-II, TX/SSLX-SM1310-SC (1310xmt/1550rcv)
856-14874 iMcV-Giga-FiberLinX-II, TX/SSLX-SM1550-SC (1550xmt/1310rcv)
856-14875 iMcV-Giga-FiberLinX-II, TX/SSLX-SM1310/PLUS-SC (1310xmt/1550rcv)
856-14876 iMcV-Giga-FiberLinX-II, TX/SSLX-SM1550/PLUS-SC (1550xmt/1310rcv)
856-14877 iMcV-Giga-FiberLinX-II, TX/SSLX-SM1490/LONG-SC (1490xmt/1550rcv)
856-14878 iMcV-Giga-FiberLinX-II, TX/SSLX-SM1550/LONG-SC(1550xmt/1490rcv)
856-14881 iMcV-Giga-FiberLinX-II, TX/LX-SM1550/XLONG-SC
856-14890 iMcV-Giga-FiberLinX-II, TX/SSBX-SM1310-SC (1310xmt/1490rcv)
856-14891 iMcV-Giga-FiberLinX-II, TX/SSBX-SM1490-SC (1490xmt/1310rcv)
856-14892 iMcV-Giga-FiberLinX-II, TX/SSBX-SM1310/PLUS-SC (1310xmt/1490rcv)
856-14893 iMcV-Giga-FiberLinX-II, TX/SSBX-SM1490/PLUS-SC (1490xmt/1310rcv)
