iMediaChassis/6 Serie - 6-Slot Gehäuse für IMCV Module

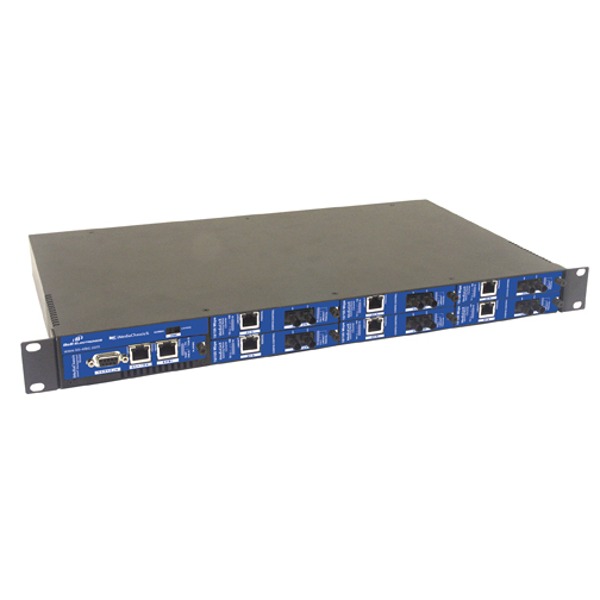

Der iMediaChassis-6 von B+B SmartWorx ist ein modularer Medienkonverter.
Der iMediaChassis-6 von B+B SmartWorx ist ein modularer Medienkonverter.
Die 6-Slot Gehäuse der iMediaChassis/6 Serie von B+B SmartWorx sind ausgestattet mit SNMP Management über ein Managementmodul, 19 Zoll Rack Montagemöglichkeit, AC/DC Stromversorgung und sind kompatiebel mit den IMCV Modulen.

zum Merkzettel hinzufügen

Datenblatt zusenden

iMediaChassis/6 Series - SNMP-Manageable Chassis for “iMcV” Series Modular Media Converters

The iMediaChassis/6 is an intelligent, carrier-class optical access platform that supports conversion of Ethernet to fiber and a variety of other telco networking technologies, including VDSL, T1/E1, DS3/E3/ STS-1 and WDM. The iMediaChassis/6 enables network operators to drastically reduce the capital and operational expenses by providing all copper-to-fiber and multi-mode to single-mode conversions, network distance extensions and Ethernet Private Line services from the same managed chassis platform. Having the highest port density in the industry - along with a robust design, hot-swappable architecture, SNMP-management, and redundant power supplies for fault tolerance - makes the iMediaChassis ideal for installing in the Central Office (CO) where a multitude of diverse applications, using a variety of protocols, is required. Pair this multi-slot chassis with a MediaChassis or other standalone B&B Electronics unmanaged device at the customer premises, for complete end-to-end management.

  • An independent SNMP-management slot to isolate management data from user traffic
  • Temperature controlled fans in the 6-slot chassis activates only when chassis reaches a certain temperature, thereby extending the life of the fans



  • SNMP-manageable with use of SNMP module
  • SNMP Write Lock switch protects the SNMP-configured settings
  • Built to NEBS-III specicfications
  • Last Gasp feature sends notification of AC line failures and power supply failures
  • Available with AC or DC power
  • Available with redundant power
  • Only 1U high
  • True load sharing with dual, end-user replaceable power supplies
  • Temperature controlled fans


  • Port Type
  • Fan speeds
  • Traps
  • Fiber Type
  • Module Type
  • Link Status of Ports
  • Chassis temperature
  • Power Supply Type/Status
  • User-Definable Name/ID of Product and Each Port
  • Enable/Disable Ports
  • Enable/Disable FO/FX LinkLoss, TP/TX LinkLoss
  • Enable/Disable FiberAlert, Auto Negotiation


  • Dimensions 1.8”H x 19”W x 10.65”D
  • (4.57cm H x 48.26cm W x 27.05cm D)
  • Shipping Weight 13 lbs (5.90 kg)

AC Input Load

  • 100 to 240V AC, 50-60Hz, 1.0A

DC Input Load

  • -48V DC, 2.0A


  • Operating Temperature: +32° to +122° F (0° to +50° C)
  • Storage Temperature: -4° to +176° F (-20° to +80° C): Dual AC, AC/DC -4° to +140° F (-20° to +60° C): Dual DC
  • Operating Humidity 5% to 95% (non-condensing), 0 – 10,000 ft. altitude

Regulatory Approvals

  • Single AC: FCC Class A
  • Dual AC: FCC Class A
  • Single DC: FCC Class B
  • Dual DC: FCC Class B
  • UL/cUL, CSA, CE
850-10953-2AC iMediaChassis/6-2AC (6-slot, two AC power modules)
850-10953-AC iMediaChassis/6-AC (6-slot, one AC power module)
850-10953-DC iMediaChassis/6-DC (6-slot, one DC power module)
850-10953-2DC iMediaChassis/6-2DC (6-slot, two DC power modules)
