vibrationDetect Sensor

Vibrations- und Erschütterungssensor von AKCP.
Vibrations- und Erschütterungssensor von AKCP.
Vibrations- und Erschütterungssensor von AKCP.
vibrationDetect Sensor von AKCP erkennt Vibration und Erschütterungen auf verschiedenen Oberflächen und meldet dies einer sensorProbe oder securityProbe. Dies schützt vor unterlaubtem Eindringen mittels Hammer, Säge, und anderen Hilfsmitteln und vor Schäden sensibler Hardware.

zum Merkzettel hinzufügen

Datenblatt zusenden

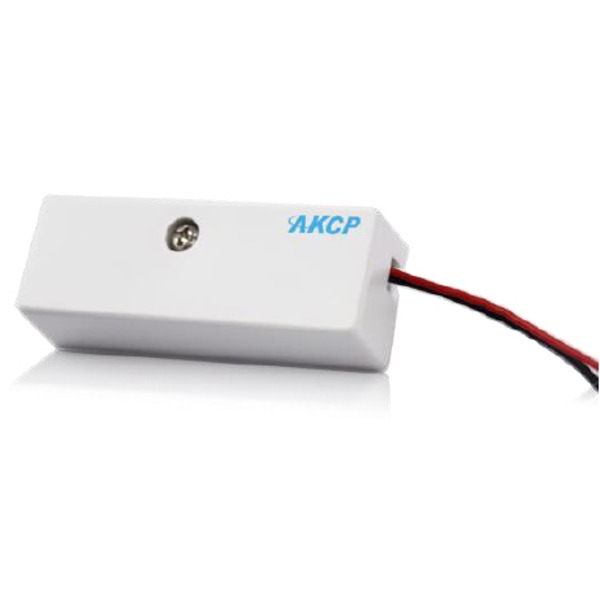

VibrationDetect Sensor - VDS

The AKCess Pro vibrationDetect sensor is a normally closed input switch that will detect when there is vibration, or a window is broken. It can be connected to both the sensorProbe or securityProbe base units and then linked to notification alerts.

This sensor is designed for protecting against forced entry by hammer, saw, crowbar etc… through walls, ceilings, windows, safes, cabinets, etc… It will initiate an alarm when a vibration from a non-desirable force strikes the protected surface. A built-in tamper switch is independent from the circuit of the vibration detector for your convenience.

CircuitNormally-closed contact, momentary open when activated.
Contact PressureAdjustable from 1 to 50 grams but recommended setting between 5 and 25 grams only. Supplied with pressure of approximately 6 grams.
Rated1A at 50VDC
Contact Break TimeApproximately 45ms maximum (at 6-grams of pressure)
LifeOver 100,000 contacts
ContactsPure silver
CaseABS resin.
Size15mm(H) x 21mm(W) x 60mm(L)
Weight20 grams.
