AC Spannungssensor

AC Spannungssensor von AKCP.
AC Spannungssensor von AKCP.
Der AC Spannungssensor von AKCP wird verwendet, um Anwesenheit von Spannung zu erkennen. Dies kann z.B. dazu verwendet werden, um zu sehen ob das UPS auf Batterie läuft oder nicht. Er hat die Status ALARM oder NORMAL und kann bei Problemen via SNMP Traps benachrichtigen.

zum Merkzettel hinzufügen

Datenblatt zusenden

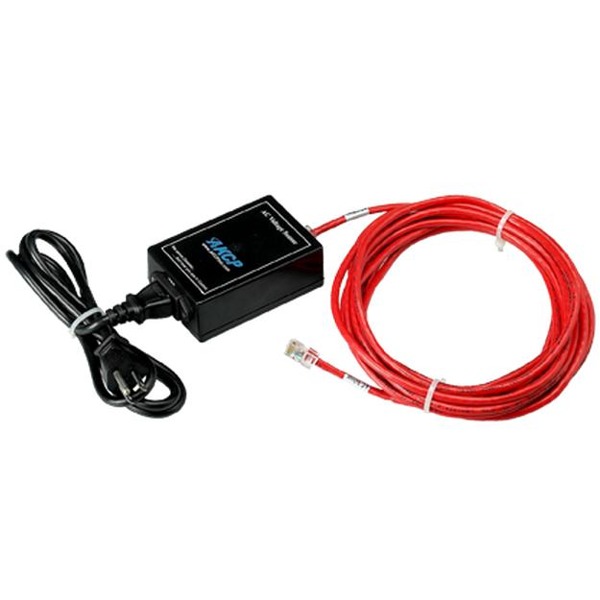

AC Voltage Sensor - ACV00

The AC voltage detector is used to indicate the presence or absence of line voltage. This is useful, for example to tell when the UPS is running on battery power.

The AC Voltage Detector indicates an ALARM/NORMAL condition in software and also via an LED mounted on the sensor. Voltage detectors can detect the presence or the absence of line voltage. It is designed for use worldwide. There is an SNMP interface for getting the alarm/normal status. SNMP traps are sent when critical conditions occur.

SNMP polling via ‘get’ is available to retrieve existing status and configuration parameters. The Web browser interface is also available to display the status and configuration parameters.

When an alarm condition is activated the description and location of the fault can be sent via email, page or traps

Measurement RangeDetects voltage at 50V AC to 250 VAC
Measurement IndicationAlarm or Normal
Communications CableRJ45 jack to sensor using UTP Cat 5 wire
Sensor TypeOpen/closed contact switch
Power SourcePowered by the sensorProbe. No additional power needed
Power ConsumptionTypical 11.35 mWatt, 2.27mA
Measurement RateMultiple readings every second | LED indicator on sensor shows if voltage present | sensorProbe auto detects the presence of the voltage sensor | Up to 2 voltage detector per sensorProbe2, up to 8 on the sensorProbe8 | Full autosense including disconnect alarm
