Single and Multiport Serie - Single und Multiport Geräteserver von Quatech

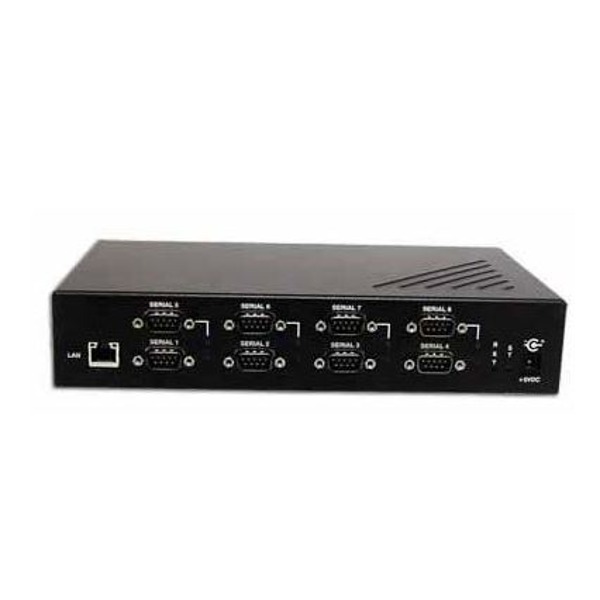

Der Quatech von B+B SmartWorx ist ein serieller Geräteserver.
Der Quatech von B+B SmartWorx ist ein serieller Geräteserver.
Die Single oder Multiport Geräteserver von B+B SmartWorx Serie sind ausgestattet mit bis zu 8 seriellen RS-232/422/485 DB9 Male Ports, Ethernet 10/100, Baudraten bis zu 921000 und Überspannungsschutz.

zum Merkzettel hinzufügen

Datenblatt zusenden

Quatech Serie - Single and Multi Port RS-232 Serial Server

Quatech's high performance RS-232 serial servers feature a PowerPC® from Freescale™ (formerly Motorola® Semiconductor). This processor is part of a world-class architecture that offers the lowest latency available anywhere. In addition, the auto-sensing 10/100 Ethernet interface, and Quatech's proven high-speed, 921k-baud serial technology offer the best performance in the industry and ensure that your critical business applications won't be harmed by data throughput issues.

Buy and compare our RS-232 serial servers below. Click on the model number to view a photo and see the Details, Specs, Downloads, and Accessories tabs for further information.

Installation Wizard

Easy to set up and install, Quatech Device Servers are up and running on your network in 10 minutes or less. A unique Installation Wizard automatically searches for and identifies any Quatech unit attached to the network, even searching remote subnets if needed. No client software is installed on your PC, just a small set of drivers that configures each serial port as a new COM port on the PC. This allows software applications to access the attached serial device as they are designed to, with no custom programming needed. Simply point your software application to the new, "virtual" COM port and you're all set!

Serial Tunneling

Do you have two serial devices that communicate directly with each other and you wish to replace the short serial cable using the distances possible with Ethernet technology? The two serial devices will then communicate as if connected by a short serial cable; the Ethernet portion will be invisible to the devices.

Auto TCP Feature

For remote service and monitoring applications, try our AutoTCP feature. The serial port can be set up to act as a TCP Client, requesting a connection whenever the serial device is attached and powered on or, if you prefer, whenever serial data is ready for upload to the host computer. You can leave the connection on, or disconnect from the host after a specified period. But when a service request from a remote monitoring PC (with a specified IP address) arrives, the device server will act as a TCP server, allow access to the serial device to the monitoring PC, and go back to Client mode when the Server session is finished.

Industrial Enclosure

Quatech RS-232 serial servers are housed in a solid metal case suited for rugged industrial environments and a surge suppression option is available, as are DIN rail mounting for individual units, and rack mount kits for multi-port models.

Software Selectable MEI

The 400 Series models introduce a software-selectable, RS-232/422/485 multi-electrical interface (MEI) to the device server product line. These units can be configured for RS-232 or for RS-422 or RS-485 asynchronous communication in either full-duplex or half-duplex mode.


  • Easy installation and configuration in under 10 minutes. PowerPC® microprocessor drives high throughput and industry's lowest latency
  • Network enable any RS-232, RS-422 or RS-485 serial devices for remote access and control
  • Remote Web browser-based configuration, administration and troubleshooting
  • Auto-detecting 10/100 Mbps Ethernet with built-in TCP/IP
  • Raw TCP and IntelliSock™ TCP socket services for custom applications
  • Configure as TCP Server, TCP Client, or as both using the exclusive AutoTCP feature
  • Serial Tunneling mode for connecting two serial devices over a network without a PC
  • Serial speeds to 921.6 kbps
  • 1, 2, 4, or 8 independent RS-232 or software-selectable RS-232/422/485 serial ports
  • DB-9 and RJ-45 models available
  • Surge suppression package available
  • Virtual COM drivers for Windows Windows NT4/2000/XP/Vista/7 and other OS support via socket modes
  • Full-duplex and half-duplex communication supported (RS-232/422/485)
  • PowerPC® microprocessor eliminates data bottlenecks and common latency issues (RS-232/422/485)
  • RoHS compliant
  • Port-Powered models with standard surge suppression and +5V at the port
  • Embedded models with standard surge suppression are available (RS-232 only, 1 or 2 ports)
SSE-100D1 Port RS-232 Serial Device Server
DSE-100D2 Port RS-232 Serial Device Server
QSE-100D4 Port RS-232 Serial Device Server
QSE-100D-SS4 Port RS-232 Serial Device Server with Surge Suppression
ESE-100D8 Port RS-232 Serial Device Server
ESE-400D8 Port RS-232/422/485 Serial Device Server
