Elinx EIR Serie - Ethernet zu Glasfaser Medienkonverter

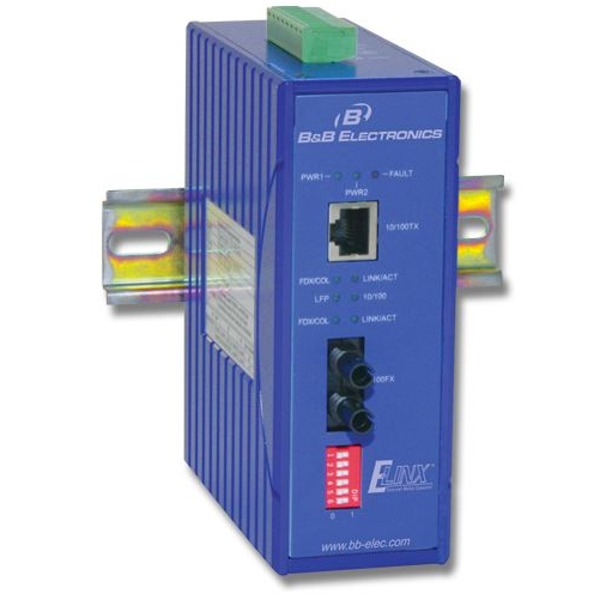

Der EIR von B+B SmartWorx ist ein Ethernet zu Glasfaser Konverter.
Der EIR von B+B SmartWorx ist ein Ethernet zu Glasfaser Konverter.
Der EIR-S-SC von B+B SmartWorx ist ein Ethernet zu Glasfaser Konverter.
Die Ethernet zu Glasfaser (Single-/Multi-Mode) Medienkonverter der EIR Serie von B+B SmartWorx sind ausgestattet mi Link-Fault-Pass-Through (LFPT), Datenraten bis zu 100 Mbps und haben Übertragungsreichweiten bis zu 20km.

zum Merkzettel hinzufügen

Datenblatt zusenden

EIR Series - Incrase Ethernet Distance And Protect Against Electrical Interference

By using a pair of media converters, LANs can be extended up to 2km with multi-mode fiber and up to 20km with single-mode fiber. Extension of LAN distances now make it possible to communicate with remotely located Ethernet enabled devices that were not formerly possible to reach in the past. The application could be as simple as getting data from one end of the warehouse to the other, tying two buildings together, enabling communications in a tank farm, or monitoring a SCADA system at a waste water plant.

Our rugged Ethernet DIN rail converters feature

  • Multi-mode or single-mode models
  • 10/100Base models
  • Auto negotiation of data rate and duplex modes
  • LEDs for Power, Link/Activity, Data Rate, Duplex/Collision

Dip switch configuration for

  • Link-fault-pass-through (enabled or disabled)
  • Data rates (auto or forced)
  • Duplex modes (auto or forced)


  • Meets NEMA TS1/TS2 requirements for traffic control equipment
  • Meets IEC61000-6-2 EMC generic standard immunity for industrial environments
  • Rugged DIN rail mount metal cases, with optional panel mount kit available
  • Wide temperature ranges starting at -34 to 74 ºC
  • Alarm for power or port link failure via relay output (dry contact)
  • Redundant 10 to 48 VDC inputs (via terminal blocks)
  • Vibration Resistance (IEC 60068-2-6)
  • Shock (IEC 60068-2-27)
  • Free Fall (IEC 60068-2-32)
EIR-M-SC Ethernet Media Converter Multi-Mode
EIR-M-ST Ethernet Media Converter Multi-Mode
EIR-S-SC Ethernet Media Converter Single-Mode
